Toyota KLUGER — WATER PUMP

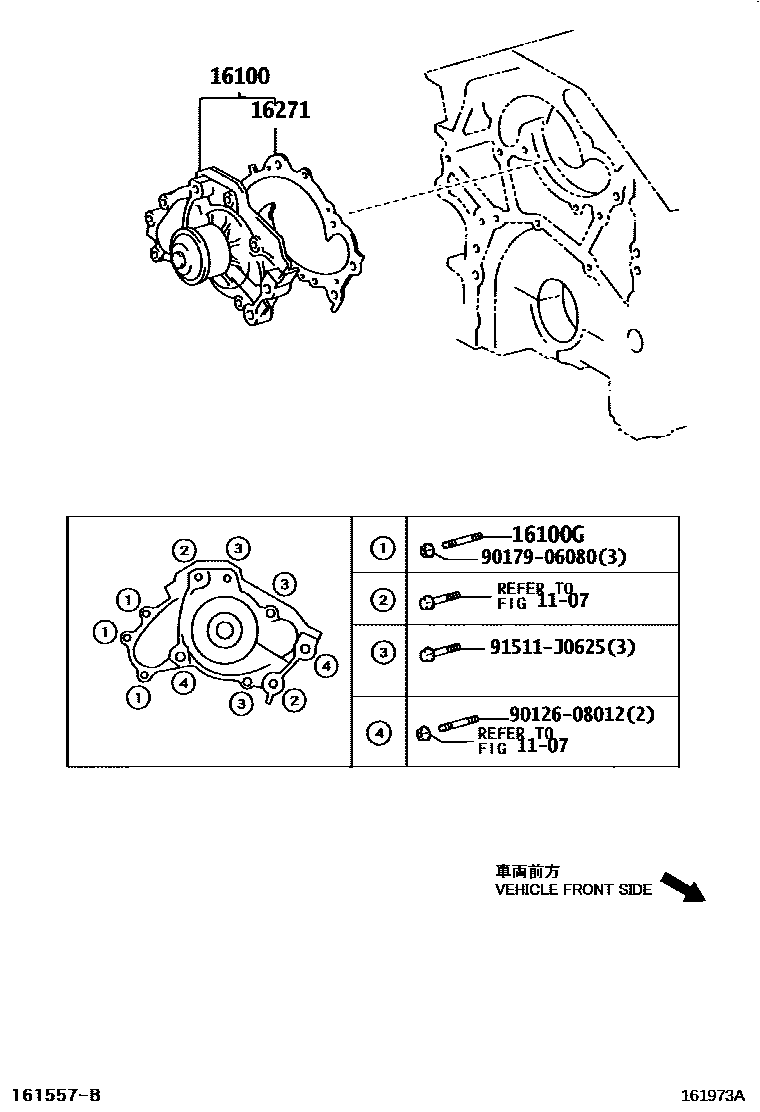

Parts diagram
1107MOUNTING
→ Go to FIG 11-07
16100PUMP ASSY, ENGINE WATER
16100-29085
90116-06144
16100GBOLT, STUD(FOR WATER PUMP SET)
16271GASKET, WATER PUMP
16271-20020
9012608012
90126-08012
9017906080
90179-06080
91511J0625
91511-J0625

7 parts on this diagram · 1 diagram in section

WATER PUMP for Toyota KLUGER

This section contains 7 genuine Toyota parts for the WATER PUMP system of the Toyota KLUGER. Key components include: MOUNTING, PUMP ASSY, ENGINE WATER, BOLT, STUD(FOR WATER PUMP SET), GASKET, WATER PUMP.
