Toyota LEXUS RX SERIES — RADIO RECEIVER & AMPLIFIER & CONDENSER

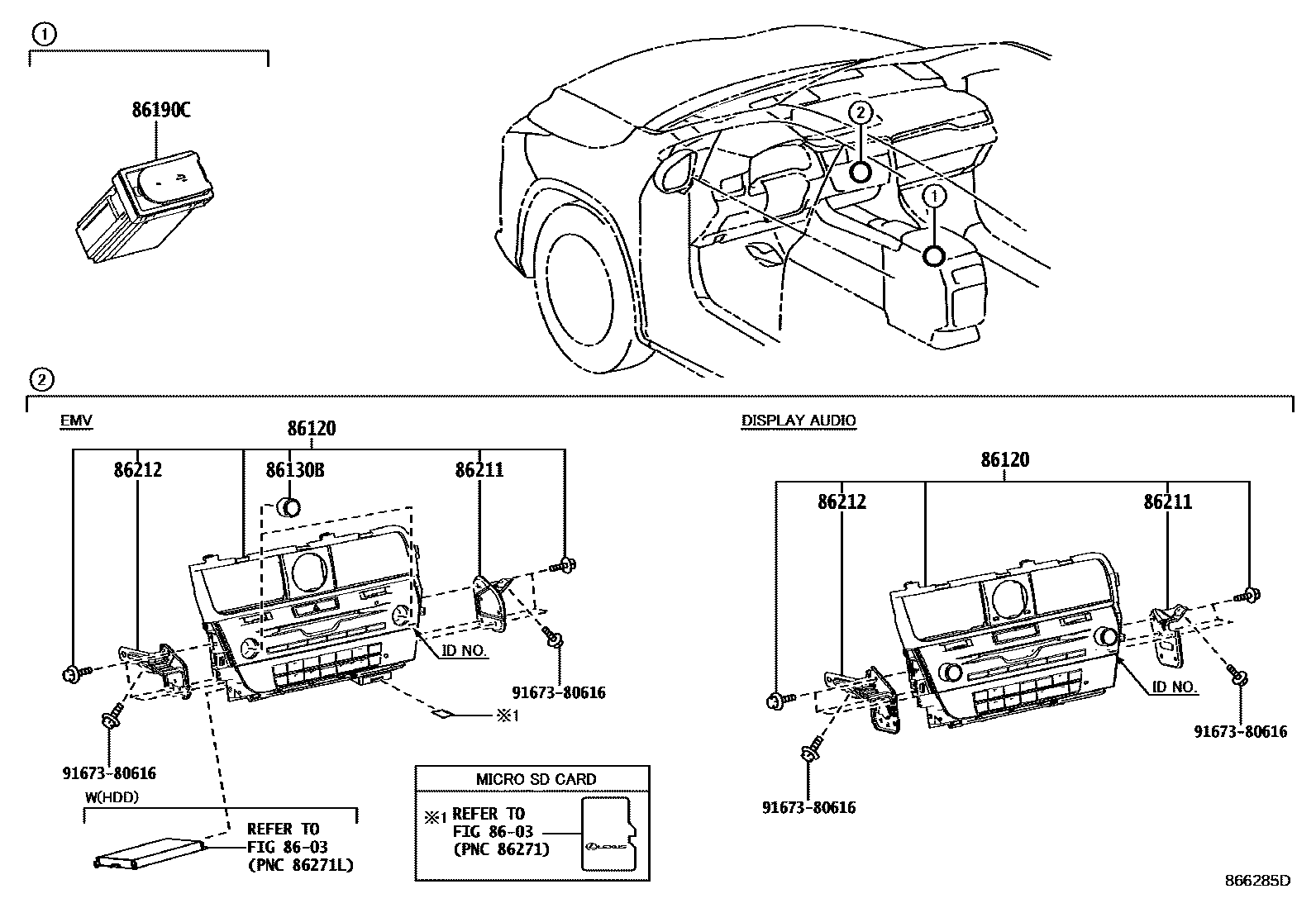

Parts diagram

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86120RECEIVER ASSY, RADIO

86130BKNOB, RECEIVER SWITCH

86190CADAPTER ASSY, STEREO JACK, NO.1

86211BRACKET, RADIO, NO.1

86212BRACKET, RADIO, NO.2

9167380616

7 parts on this diagram · 7 diagrams in section

RADIO RECEIVER & AMPLIFIER & CONDENSER for Toyota LEXUS RX SERIES

This section contains 17 genuine Toyota parts for the RADIO RECEIVER & AMPLIFIER & CONDENSER system of the Toyota LEXUS RX SERIES. Key components include: CONDENSER, RADIO SETTING, NAVIGATION & FRONT MONITOR DISPLAY, RECEIVER ASSY, RADIO, KNOB, RECEIVER SWITCH.
