E
EPC Data

WIRING & CLAMP

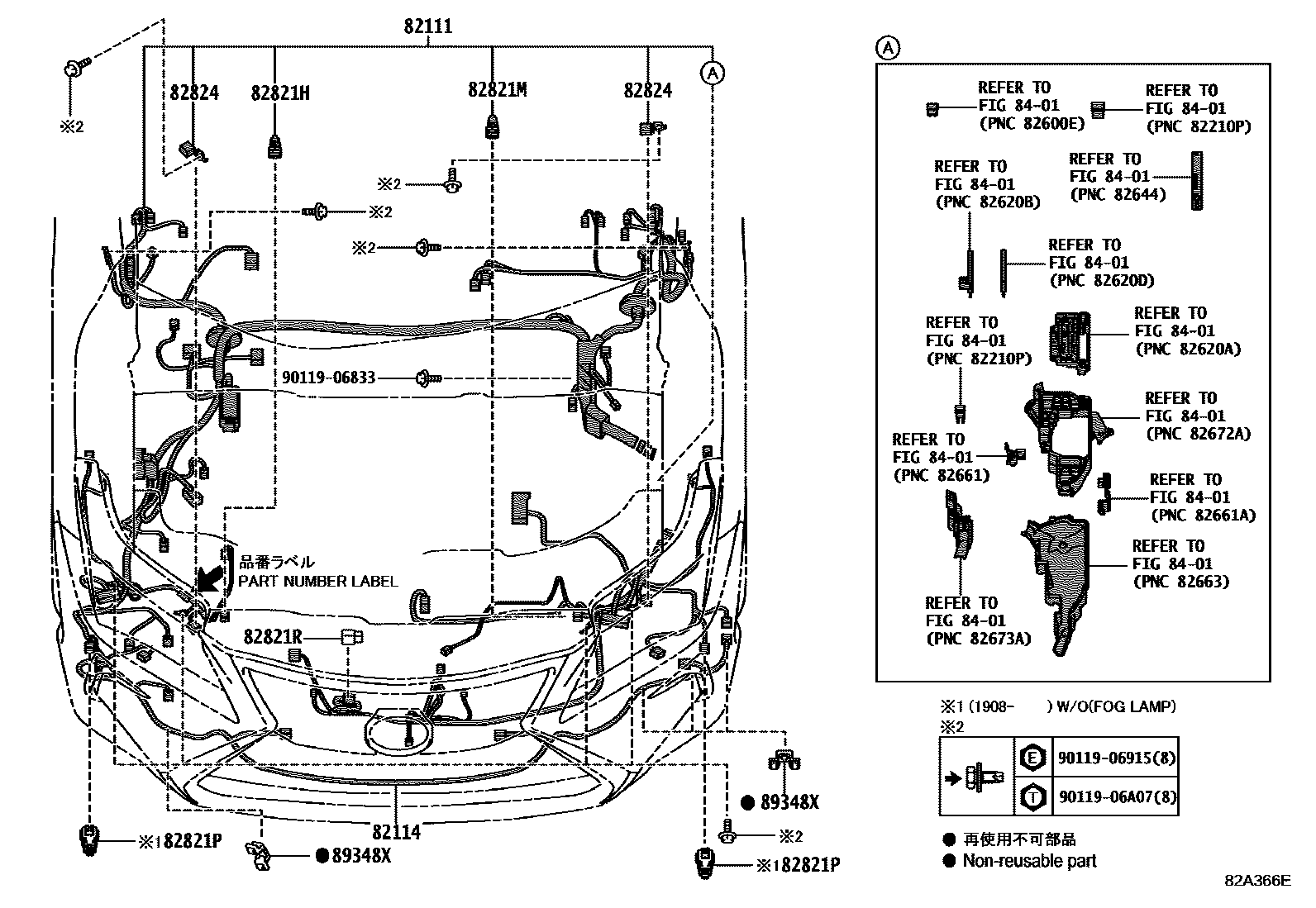

Parts diagram
82111WIRE, ENGINE ROOM MAIN
main82111-4D080i201509-201608
main82111-4D081i201608-201712
main82111-4D082i201712-201908
main82111-4D100i201509-201608
main82111-4D101i201608-201712
main82111-4D120i201509-201608
main82111-4D121i201608-201712
main82111-4D122i201712-201805
P/N LABEL=821114D122
main82111-4D162i201712-201908
main82111-4D320i201805-201908
P/N LABEL=821114D320
main82111-4D330i201908
main82111-4DB40i201908-202007
main82111-4DJ40i202007
main82111-4D090i201509-201608
PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB); PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
main82111-4D091i201608-201712
PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB); PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
main82111-4D092i201712-201908
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB); ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
main82111-4D110i201509-201608
AUSTRALIA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE& WITH(*AHB); AUSTRALIA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE& WITH(*AHB); NEW ZEALAND SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB); NEW ZEALAND SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); THAILAND SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE& WITH(*AHB); THAILAND SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE& WITH(*AHB)
main82111-4D111i201608-201712
AUSTRALIA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE& WITH(*AHB); AUSTRALIA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE& WITH(*AHB); NEW ZEALAND SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB); NEW ZEALAND SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); THAILAND SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE& WITH(*AHB); THAILAND SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE& WITH(*AHB)
main82111-4D112i201805-201908
AUSTRALIA SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&AUDIO-*EMV&DVD; AUSTRALIA SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&AUDIO-*EMV&DVD; NEW ZEALAND SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&AUDIO-*EMV&DVD; NEW ZEALAND SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&AUDIO-*EMV&DVD; SOUTH AFRICA SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLEBEAM TYPE & WITH(*AHB)&AUDIO-*EMV&DVD&SPEAKER-12SPEAKER; SOUTH AFRICA SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLEBEAM TYPE & WITH(*AHB)&AUDIO-*EMV&DVD&SPEAKER-15SPEAKER & *MAR; SOUTH AFRICA SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLEBEAM TYPE & WITH(*AHB)&AUDIO-*EMV&DVD&SPEAKER-12SPEAKER; SOUTH AFRICA SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLEBEAM TYPE & WITH(*AHB)&AUDIO-*EMV&DVD&SPEAKER-15SPEAKER & *MAR; THAILAND SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAMTYPE & WITH(*AHB)&AUDIO-*EMV&DVD; THAILAND SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAMTYPE & WITH(*AHB)&AUDIO-8INCH LEXUS DISPLEY AUDIO&DVD; THAILAND SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAMTYPE & WITH(*AHB)&AUDIO-*EMV&DVD; THAILAND SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAMTYPE & WITH(*AHB)&AUDIO-8INCH LEXUS DISPLEY AUDIO&DVD
main82111-4D130i201509-201608
PRE-COLLISION SYSTEM-WITH(*PBA & *PB); PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB); PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
main82111-4D131i201608-201712
PRE-COLLISION SYSTEM-WITH(*PBA & *PB); PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB); PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
main82111-4D132i201805-201908
"F-SPORT"*(F)&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&*AVS-WITH&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB); "F-SPORT"*(F)&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&*AVS-WITH&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&AIR CONDITIONER-AUTOMATIC INTAKE SYSTEM; "F-SPORT"*(F)&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&*AVS-WITH&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&AUDIO-*EMV&DVD; "F-SPORT"*(F)&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&*AVS-WITH&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&AUDIO-8INCH LEXUS DISPLEY AUDIO&DVD; "F-SPORT"*(F)&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&*AVS-WITH&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); "F-SPORT"*(F)&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&*AVS-WITH&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&AIR CONDITIONER-AUTOMATIC INTAKE SYSTEM; "F-SPORT"*(F)&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&*AVS-WITH&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&AUDIO-*EMV&DVD; "F-SPORT"*(F)&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&*AVS-WITH&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&AUDIO-8INCH LEXUS DISPLEY AUDIO&DVD; "VERSION L"*(L)&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB); "VERSION L"*(L)&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&AIR CONDITIONER-AUTOMATIC INTAKE SYSTEM; "VERSION L"*(L)&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&AUDIO-*EMV&DVD; "VERSION L"*(L)&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&AUDIO-8INCH LEXUS DISPLEY AUDIO&DVD; "VERSION L"*(L)&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); "VERSION L"*(L)&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&AIR CONDITIONER-AUTOMATIC INTAKE SYSTEM; "VERSION L"*(L)&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&AUDIO-*EMV&DVD; "VERSION L"*(L)&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&AUDIO-8INCH LEXUS DISPLEY AUDIO&DVD; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&AIR CONDITIONER-AUTOMATIC INTAKE SYSTEM; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&AIR CONDITIONER-AUTOMATIC INTAKE SYSTEM; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&AUDIO-*EMV&DVD; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&AUDIO-8INCH LEXUS DISPLEY AUDIO&DVD; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&AIR CONDITIONER-AUTOMATIC INTAKE SYSTEM; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&AUDIO-*EMV&DVD; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&AUDIO-8INCH LEXUS DISPLEY AUDIO&DVD
main82111-4D150supersedes 82111-4D140i201509-201608
AUSTRALIA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE& WITH(*AHB); AUSTRALIA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE& WITH(*AHB); THAILAND SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE& WITH(*AHB); THAILAND SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE& WITH(*AHB)
main82111-4D151supersedes 82111-4D141i201608-201712
AUSTRALIA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE& WITH(*AHB); AUSTRALIA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE& WITH(*AHB); THAILAND SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE& WITH(*AHB); THAILAND SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE& WITH(*AHB)
main82111-4D152supersedes 82111-4DB12i201805-201908
AUSTRALIA SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&AUDIO-*EMV&DVD; AUSTRALIA SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&AUDIO-*EMV&DVD; THAILAND SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAMTYPE & WITH(*AHB)&AUDIO-*EMV&DVD; THAILAND SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAMTYPE & WITH(*AHB)&AUDIO-8INCH LEXUS DISPLEY AUDIO&DVD; THAILAND SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAMTYPE & WITH(*AHB)&AUDIO-*EMV&DVD; THAILAND SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAMTYPE & WITH(*AHB)&AUDIO-8INCH LEXUS DISPLEY AUDIO&DVD
main82111-4D170supersedes 82111-4D160i201510-201608
PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB); PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
main82111-4D171supersedes 82111-4D161i201608-201712
PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB); PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
main82111-4D172i201805-201908
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&AUDIO-*EMV&DVD; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&AUDIO-8INCH LEXUS DISPLEY AUDIO&DVD; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&AUDIO-*EMV&DVD; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&AUDIO-8INCH LEXUS DISPLEY AUDIO&DVD
main82111-4D210supersedes 82111-4D200i201510-201608
AUSTRALIA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE& WITH(*AHB); AUSTRALIA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE& WITH(*AHB); NEW ZEALAND SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB); NEW ZEALAND SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); THAILAND SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE& WITH(*AHB); THAILAND SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE& WITH(*AHB)
main82111-4D211i201610-201712
SOUTH AFRICA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB); SOUTH AFRICA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
main82111-4D212supersedes 82111-4DC41i201805-201908
AUSTRALIA SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&AUDIO-*EMV&DVD; AUSTRALIA SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&AUDIO-*EMV&DVD; NEW ZEALAND SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&AUDIO-*EMV&DVD; NEW ZEALAND SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&AUDIO-*EMV&DVD; SOUTH AFRICA SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLEBEAM TYPE & WITH(*AHB)&AUDIO-*EMV&DVD&SPEAKER-12SPEAKER; SOUTH AFRICA SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLEBEAM TYPE & WITH(*AHB)&AUDIO-*EMV&DVD&SPEAKER-15SPEAKER & *MAR; SOUTH AFRICA SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLEBEAM TYPE & WITH(*AHB)&AUDIO-*EMV&DVD&SPEAKER-12SPEAKER; SOUTH AFRICA SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLEBEAM TYPE & WITH(*AHB)&AUDIO-*EMV&DVD&SPEAKER-15SPEAKER & *MAR; THAILAND SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAMTYPE & WITH(*AHB)&AUDIO-*EMV&DVD; THAILAND SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAMTYPE & WITH(*AHB)&AUDIO-8INCH LEXUS DISPLEY AUDIO&DVD; THAILAND SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAMTYPE & WITH(*AHB)&AUDIO-*EMV&DVD; THAILAND SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAMTYPE & WITH(*AHB)&AUDIO-8INCH LEXUS DISPLEY AUDIO&DVD
main82111-4D230i201509-201608
AUSTRALIA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE& WITH(*AHS); NEW ZEALAND SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS); THAILAND SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE& WITH(*AHS)
main82111-4D231i201608-201712
AUSTRALIA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE& WITH(*AHS); NEW ZEALAND SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS); THAILAND SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE& WITH(*AHS)
main82111-4D232supersedes 82111-4DA11i201805-201908
AUSTRALIA SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&AUDIO-*EMV&DVD; NEW ZEALAND SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&AUDIO-*EMV&DVD; SOUTH AFRICA SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLEBEAM TYPE & WITH(*AHS)&AUDIO-*EMV&DVD&SPEAKER-12SPEAKER; SOUTH AFRICA SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLEBEAM TYPE & WITH(*AHS)&AUDIO-*EMV&DVD&SPEAKER-15SPEAKER & *MAR; THAILAND SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAMTYPE & WITH(*AHS)&AUDIO-*EMV&DVD; THAILAND SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAMTYPE & WITH(*AHS)&AUDIO-8INCH LEXUS DISPLEY AUDIO&DVD
main82111-4D240i201509-201608
PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
main82111-4D241i201608-201712
PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
main82111-4D242i201805-201908
"F-SPORT"*(F)&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&*AVS-WITH&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS); "F-SPORT"*(F)&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&*AVS-WITH&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&AIR CONDITIONER-AUTOMATIC INTAKE SYSTEM; "F-SPORT"*(F)&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&*AVS-WITH&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&AUDIO-*EMV&DVD; "F-SPORT"*(F)&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&*AVS-WITH&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&AUDIO-8INCH LEXUS DISPLEY AUDIO&DVD; "VERSION L"*(L)&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS); "VERSION L"*(L)&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&AIR CONDITIONER-AUTOMATIC INTAKE SYSTEM; "VERSION L"*(L)&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&AUDIO-*EMV&DVD; "VERSION L"*(L)&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&AUDIO-8INCH LEXUS DISPLEY AUDIO&DVD; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&AIR CONDITIONER-AUTOMATIC INTAKE SYSTEM; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&AUDIO-*EMV&DVD; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&AUDIO-8INCH LEXUS DISPLEY AUDIO&DVD
main82111-4D250i201509-201608
AUSTRALIA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE& WITH(*AHS); THAILAND SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE& WITH(*AHS)
main82111-4D251i201608-201712
AUSTRALIA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE& WITH(*AHS); THAILAND SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE& WITH(*AHS)
main82111-4D252i201805-201908
AUSTRALIA SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&AUDIO-*EMV&DVD; THAILAND SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAMTYPE & WITH(*AHS)&AUDIO-*EMV&DVD; THAILAND SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAMTYPE & WITH(*AHS)&AUDIO-8INCH LEXUS DISPLEY AUDIO&DVD
main82111-4D260supersedes 82111-4D160i201510-201608
PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
main82111-4D261supersedes 82111-4D161i201608-201712
PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
main82111-4D262i201805-201908
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&AUDIO-*EMV&DVD; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&AUDIO-8INCH LEXUS DISPLEY AUDIO&DVD
main82111-4D280supersedes 82111-4D200i201510-201608
AUSTRALIA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE& WITH(*AHS); NEW ZEALAND SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS); THAILAND SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE& WITH(*AHS)
main82111-4D281supersedes 82111-4D201i201608-201712
AUSTRALIA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE& WITH(*AHS); NEW ZEALAND SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS); THAILAND SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE& WITH(*AHS)
main82111-4D282supersedes 82111-4DC41i201805-201908
AUSTRALIA SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&AUDIO-*EMV&DVD; NEW ZEALAND SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&AUDIO-*EMV&DVD; SOUTH AFRICA SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLEBEAM TYPE & WITH(*AHS)&AUDIO-*EMV&DVD&SPEAKER-12SPEAKER; SOUTH AFRICA SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLEBEAM TYPE & WITH(*AHS)&AUDIO-*EMV&DVD&SPEAKER-15SPEAKER & *MAR; THAILAND SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAMTYPE & WITH(*AHS)&AUDIO-*EMV&DVD; THAILAND SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAMTYPE & WITH(*AHS)&AUDIO-8INCH LEXUS DISPLEY AUDIO&DVD
main82111-4D290i201509-201608
PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
main82111-4D291i201608-201712
PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
main82111-4D292i201805-201908
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&AUDIO-*EMV&DVD; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&AUDIO-8INCH LEXUS DISPLEY AUDIO&DVD
main82111-4D340i201908
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB); ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&AUDIO-DVD&SPEAKER-12SPEAKER; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&AUDIO-DVD&SPEAKER-15SPEAKER & *MAR; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&AUDIO-LEXUS DISPLAY AUDIO/DVD; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&AUDIO-DVD&SPEAKER-12SPEAKER; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&AUDIO-DVD&SPEAKER-15SPEAKER & *MAR; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&AUDIO-LEXUS DISPLAY AUDIO/DVD
main82111-4D350i201908
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS); ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&AUDIO-DVD&SPEAKER-12SPEAKER; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&AUDIO-DVD&SPEAKER-15SPEAKER & *MAR; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&AUDIO-LEXUS DISPLAY AUDIO/DVD
main82111-4D470supersedes 82111-4D460i201510-201608
PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB); PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
main82111-4D471supersedes 82111-4D461i201608-201712
PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB); PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
main82111-4D472supersedes 82111-4D462i201712-201908
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB); ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
main82111-4D480supersedes 82111-4D460i201510-201608
PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
main82111-4D481supersedes 82111-4D461i201608-201712
PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
main82111-4D482supersedes 82111-4D462i201712-201908
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
main82111-4DA20supersedes 82111-4DA11i201908-202101
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB); ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
main82111-4DA21supersedes 82111-4DA11i202101
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB); ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
main82111-4DA30supersedes 82111-4DA11i201908-202101
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
main82111-4DA31supersedes 82111-4DA11i202101
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
main82111-4DA40i201908-202107
*AVS-WITH; *AVS-WITH&AIR CONDITIONER-AUTOMATIC INTAKE SYSTEM; AIR CONDITIONER-AUTOMATIC INTAKE SYSTEM; FRONT FOG & DRIVING LAMP-WITHOUT&AUDIO-DVD&SPEAKER-12SPEAKER; FRONT FOG & DRIVING LAMP-WITHOUT&AUDIO-DVD&SPEAKER-15SPEAKER & *MAR
main82111-4DA50supersedes 82111-4DA40i201908-202107
FRONT FOG & DRIVING LAMP-WITHOUT
main82111-4DA60supersedes 82111-4DA40i201908-202107
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&*AVS-WITH&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB); ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&*AVS-WITH&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&AIR CONDITIONER-AUTOMATIC INTAKE SYSTEM; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&*AVS-WITH&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&*AVS-WITH&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&AIR CONDITIONER-AUTOMATIC INTAKE SYSTEM; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&AIR CONDITIONER-AUTOMATIC INTAKE SYSTEM; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&AIR CONDITIONER-AUTOMATIC INTAKE SYSTEM; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&AUDIO-DVD&SPEAKER-12SPEAKER; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&AUDIO-DVD&SPEAKER-15SPEAKER & *MAR; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&AUDIO-LEXUS DISPLAY AUDIO/DVD; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&FRONT FOG & DRIVING LAMP-WITHOUT&AUDIO-DVD&SPEAKER-12SPEAKER; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&FRONT FOG & DRIVING LAMP-WITHOUT&AUDIO-DVD&SPEAKER-15SPEAKER & *MAR; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&AIR CONDITIONER-AUTOMATIC INTAKE SYSTEM; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&AUDIO-DVD&SPEAKER-12SPEAKER; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&AUDIO-DVD&SPEAKER-15SPEAKER & *MAR; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&AUDIO-LEXUS DISPLAY AUDIO/DVD
main82111-4DA70supersedes 82111-4DA40i201908-202107
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&*AVS-WITH&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS); ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&*AVS-WITH&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&AIR CONDITIONER-AUTOMATIC INTAKE SYSTEM; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS); ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&AIR CONDITIONER-AUTOMATIC INTAKE SYSTEM; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&AUDIO-DVD&SPEAKER-12SPEAKER; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&AUDIO-DVD&SPEAKER-15SPEAKER & *MAR; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&AUDIO-LEXUS DISPLAY AUDIO/DVD
main82111-4DB20supersedes 82111-4DB12i201908-202004
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB); ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
main82111-4DB21supersedes 82111-4DB12i202005
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB); ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
main82111-4DB30supersedes 82111-4DB12i201908-202004
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
main82111-4DB31supersedes 82111-4DB12i202005
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
main82111-4DB50i201908-202007
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB); ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&AUDIO-DVD&SPEAKER-12SPEAKER; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&AUDIO-DVD&SPEAKER-15SPEAKER & *MAR; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&AUDIO-LEXUS DISPLAY AUDIO/DVD; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&AUDIO-DVD&SPEAKER-12SPEAKER; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&AUDIO-DVD&SPEAKER-15SPEAKER & *MAR; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&AUDIO-LEXUS DISPLAY AUDIO/DVD
main82111-4DB60i201908-202007
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS); ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&AUDIO-DVD&SPEAKER-12SPEAKER; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&AUDIO-DVD&SPEAKER-15SPEAKER & *MAR; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&AUDIO-LEXUS DISPLAY AUDIO/DVD
main82111-4DC10supersedes 82111-4DC00i201908-202107
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB); ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
main82111-4DC20supersedes 82111-4DC00i201908-202107
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
main82111-4DC50i201908-202007
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB); ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
main82111-4DC70i201908-202007
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
main82111-4DJ50i202007
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB); ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&AUDIO-DVD&SPEAKER-12SPEAKER; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&AUDIO-DVD&SPEAKER-15SPEAKER & *MAR; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&AUDIO-LEXUS DISPLAY AUDIO/DVD; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&AUDIO-DVD&SPEAKER-12SPEAKER; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&AUDIO-DVD&SPEAKER-15SPEAKER & *MAR; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&AUDIO-LEXUS DISPLAY AUDIO/DVD
main82111-4DJ60i202007
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS); ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&AUDIO-DVD&SPEAKER-12SPEAKER; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&AUDIO-DVD&SPEAKER-15SPEAKER & *MAR; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&AUDIO-LEXUS DISPLAY AUDIO/DVD
main82111-4DJ80i202007
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB); ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
main82111-4DJ90i202007
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
main82111-4DK60i202101-202107
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB); ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&FRONT FOG & DRIVING LAMP-WITHOUT&AUDIO-LEXUS DISPLAY AUDIO/DVD; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
main82111-4DL20i202107
*AVS-WITH; *AVS-WITH&AIR CONDITIONER-AUTOMATIC INTAKE SYSTEM; AIR CONDITIONER-AUTOMATIC INTAKE SYSTEM
main82111-4DL30i202107
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&*AVS-WITH&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB); ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&*AVS-WITH&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&AIR CONDITIONER-AUTOMATIC INTAKE SYSTEM; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&*AVS-WITH&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&*AVS-WITH&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&AIR CONDITIONER-AUTOMATIC INTAKE SYSTEM; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&AIR CONDITIONER-AUTOMATIC INTAKE SYSTEM; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&AIR CONDITIONER-AUTOMATIC INTAKE SYSTEM; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&AIR CONDITIONER-AUTOMATIC INTAKE SYSTEM
main82111-4DL40i202107
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&*AVS-WITH&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS); ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&*AVS-WITH&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&AIR CONDITIONER-AUTOMATIC INTAKE SYSTEM; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS); ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&AIR CONDITIONER-AUTOMATIC INTAKE SYSTEM
main82111-4DP30supersedes 82111-4DP10i202107
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&AUDIO-DVD&SPEAKER-12SPEAKER; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&AUDIO-DVD&SPEAKER-15SPEAKER & *MAR; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&AUDIO-LEXUS DISPLAY AUDIO/DVD; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&AUDIO-DVD&SPEAKER-12SPEAKER; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&AUDIO-DVD&SPEAKER-15SPEAKER & *MAR; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&AUDIO-LEXUS DISPLAY AUDIO/DVD
main82111-4DP40supersedes 82111-4DP10i202107
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&AUDIO-DVD&SPEAKER-12SPEAKER; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&AUDIO-DVD&SPEAKER-15SPEAKER & *MAR; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&AUDIO-LEXUS DISPLAY AUDIO/DVD
main82111-4DP60i202107
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +; ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB); ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
main82111-4DP80supersedes 82111-4DP70i202107
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB); ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
main82111-4DP90supersedes 82111-4DP70i202107
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
82114WIRE, ENGINE ROOM, NO.4
main82114-48060i201509-201908
CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR)
main82114-48100i201908
PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB); PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR); PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR)
main82114-48080i201509-201908
"F-SPORT"*(F); "F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR)
82821HCOVER, CONNECTOR
main82821-42040i201509-201908
82821MCOVER, CONNECTOR
main82821-30650i201509-201908
82821PCOVER, CONNECTOR
main82821-48260×2i201908
FRONT FOG & DRIVING LAMP-WITHOUT
82821RCOVER, CONNECTOR
main82821-48310i201908-202107
82824CONNECTOR, WIRING HARNESS
main82824-48020×2i201509-201908
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
89348XCLIP, ULTRASONIC SENSOR, FRONT
main89348-50050×4i201908
PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB); PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR); PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR)
9011906833
main90119-06833
9011906915
main90119-06915
9011906A07
main90119-06A07

12 parts on this diagram · 25 diagrams in section
