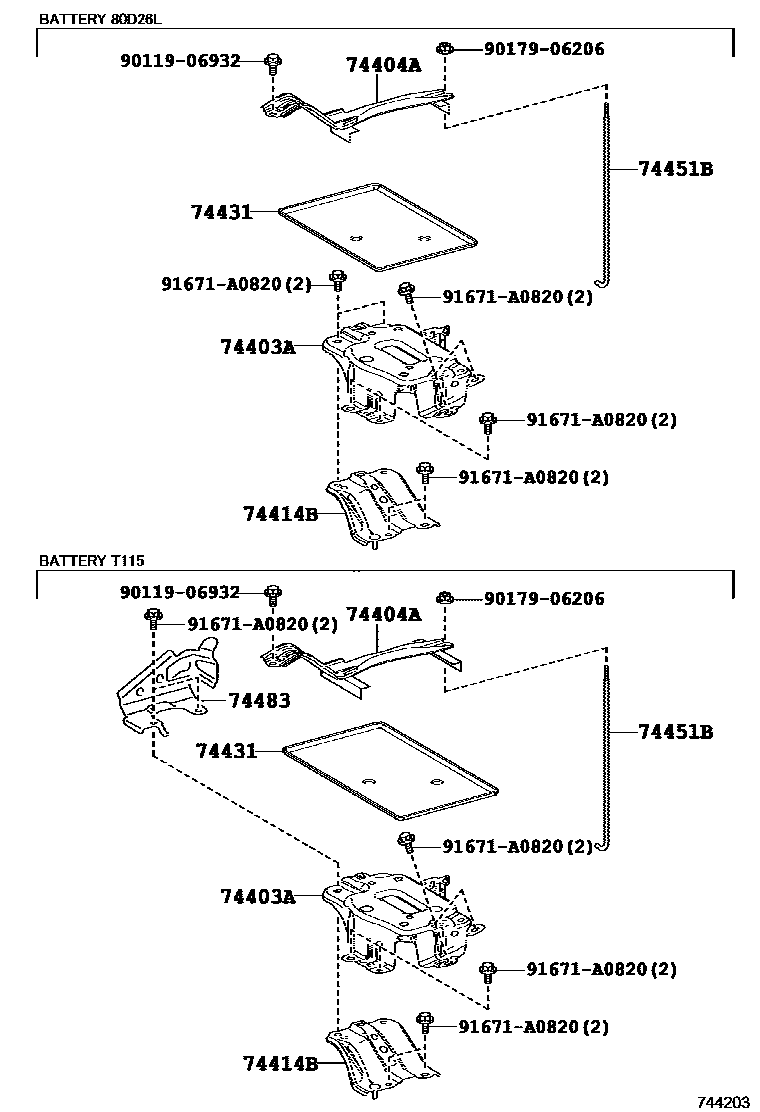

BATTERY CARRIER

0001 1 0002 1

74403ACARRIER SUB-ASSY, BATTERY

main74403-48080iAGL2#,GGL2#201509-201908

main74403-48090iGYL25201510-201908

74404ACLAMP SUB-ASSY, BATTERY

main74404-48150iAGL2#,GGL2#..GCC,GEN201908

main74404-48160iGYL25201510-201908

main74404-48170iAGL2#..CHI201908

74414BREINFORCEMENT, BATTERY BRACKET

main74414-48020iAGL2#,GGL2#,GYL25201908

74431TRAY, BATTERY

main74431-35040iAGL2#201509-201908

main74431-52040iGGL2#201509-201908

74451BBOLT, BATTERY CLAMP

main74451-48010iGYL25201510-201908

main74452-48010iAGL2#,GGL2#201908

74483CLAMP, BATTERY, NO.3

main74483-48020iAGL2#..CHI201908

9011906932

main90119-06932

9017906206

main90179-06206

91671A0820

main91671-A0820

9 parts on this diagram · 2 diagrams in section
