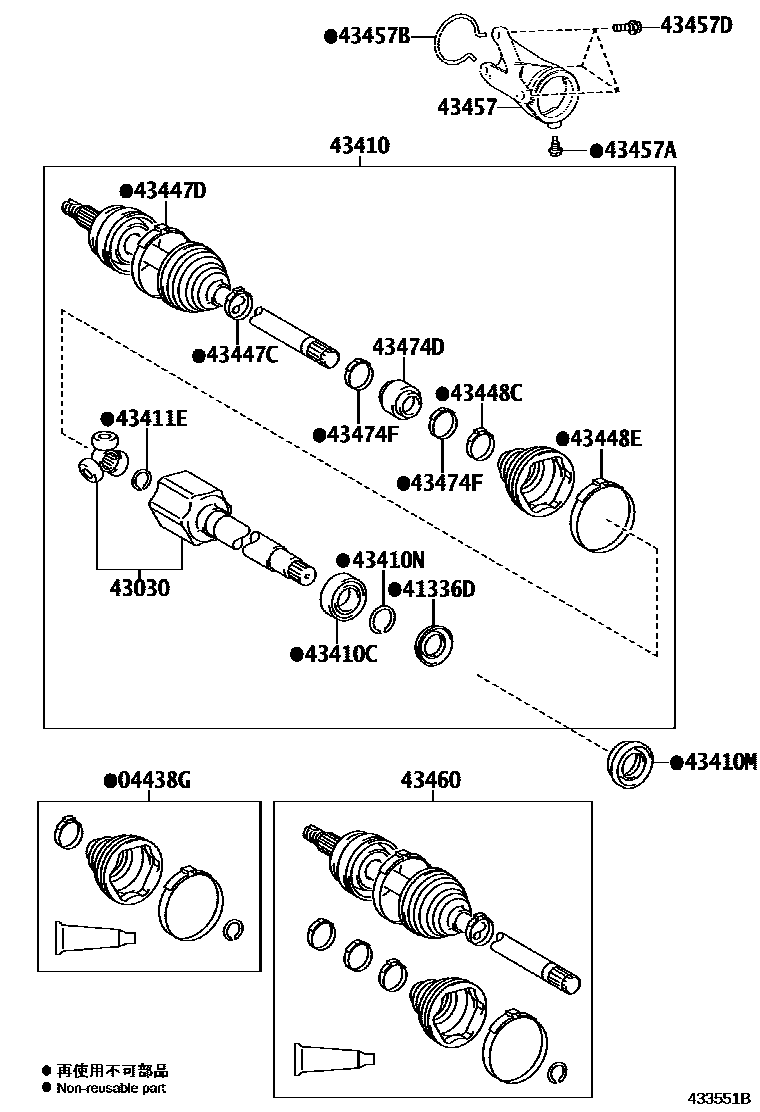

FRONT DRIVE SHAFT

0001 1RH 0003 1RH 0004 1RH 0006 1RH 0007 1RH 0008 1RH 0009 1RH 0011 1RH 0012 1LH 0014 1LH 0015 1LH 0017 1LH 0018 1

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-48160iAGL2#,GGL2#,GYL25201509-201804

main04437-48161iAGL2#,GGL2#,GYL25..CHI,GEN201908

main04439-0T041iGGL2#,GYL25..GCC201908

sub04437-0E030

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-0E100iGGL20,GYL25..GCC201908

main41336-78010iAGL20,GGL20,GYL25201509-201908

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-0E110iGGL20..GCC201908-202004

main43030-0E111iGGL20..GCC202004

main43030-0E120iGGL25..GCC201908-202004

main43030-0E121iGGL25..GCC202004

main43030-0E130iGYL25..GCC201908-202004

main43030-0E131iGYL25..GCC202004

main43030-48050iAGL20,GGL20201509-201908

main43030-48060iAGL25,GGL25201509-201908

main43030-48070iGYL25..CHI,GEN201908

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-0E160iGGL20..GCC201908

main43410-0E170iGGL25..GCC201908

main43410-0E180iGYL25..GCC201908

main43410-48120iAGL20,GGL20201509-201805

main43410-48130iGGL25201509-201805

main43410-48140iAGL25201509-201805

main43410-48150iGYL25201510-201805

main43410-48170iAGL20,GGL20..CHI,GEN201908

main43410-48180iGGL25201805-201908

main43410-48190iAGL25201805-201908

main43410-48200iGYL25..CHI,GEN201908

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-36006iAGL25,GGL25..CHI,GEN201908

main90363-36011iAGL25,GGL25201509-201606

main90363-41003iAGL20,GGL20,GYL25201604-201908

main90363-41005iAGL20,GGL20,GYL25201509-201603

main90363-A0015iGGL25..GCC201908

main90363-A0016iGGL20,GYL25..GCC201908

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40038iAGL20,GGL20201509-201908

main90311-40039iGYL25201510-201908

main90316-34001iAGL25,GGL25201509-201908

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-0E190iGGL2#,GYL25..GCC201908

main43425-78010iAGL20,GGL20,GYL25..CHI,GEN201908

main43425-78040iAGL25,GGL25201509-201908

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-0E200iGGL20,GYL25..GCC201908

main43425-0E210iGGL25..GCC201908

main43425-58030iAGL2#,GGL2#,GYL25201509-201908

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0E240iGGL2#,GYL25..GCC201908

main42345-48160iAGL2#,GGL2#,GYL25201509-201908

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0E250iGGL2#,GYL25..GCC201908

sub42345-0E600

main42345-78050iAGL2#,GGL2#,GYL25..CHI,GEN201908

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0E240iGGL2#,GYL25..GCC201908

main42345-48140iAGL2#,GGL2#,GYL25201509-201908

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0E230iGGL2#,GYL25..GCC201908

main42345-48130iAGL2#,GGL2#,GYL25201509-201908

43457BRACKET, DRIVE SHAFT BEARING

main43457-33030iGGL20,GYL25201908

main43457-48010iAGL20201908

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461iAGL20,GGL20,GYL25201509-201908

*10-1.25PX19.8-8.3

main90901-19060iAGL25,GGL25201509-201908

*10-1.25PX28.5-14.8

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-75002iAGL25,GGL25201509-201908

main90521-78002iAGL20,GGL20,GYL25201509-201908

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10381×3iAGL20,GGL20,GYL25201509-201908

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-80361iAGL20,GGL20,GYL25201509-201804

main43470-80362iGGL25201509-201804

main43470-80363iAGL25201509-201804

main43470-80431iAGL20,GGL20,GYL25201804-201805

main43470-80432iGGL25201804-201805

main43470-80433iAGL25201804-201805

main43470-80436iAGL20,GGL20,GYL25201805-201908

main43470-80437iGGL25201805-201908

main43470-80438iAGL25201805-201908

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-0E090iGGL20,GYL25..GCC201908

main43474-48040iAGL20,GGL20,GYL25..CHI,GEN201908

main43474-48050iAGL25201908

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-0E270×2iGGL20,GYL25..GCC201908

main42345-48170×2iAGL20,GGL20,GYL25..CHI,GEN201908

main42345-48180×2iAGL25201509-201908

19 parts on this diagram · 13 diagrams in section
