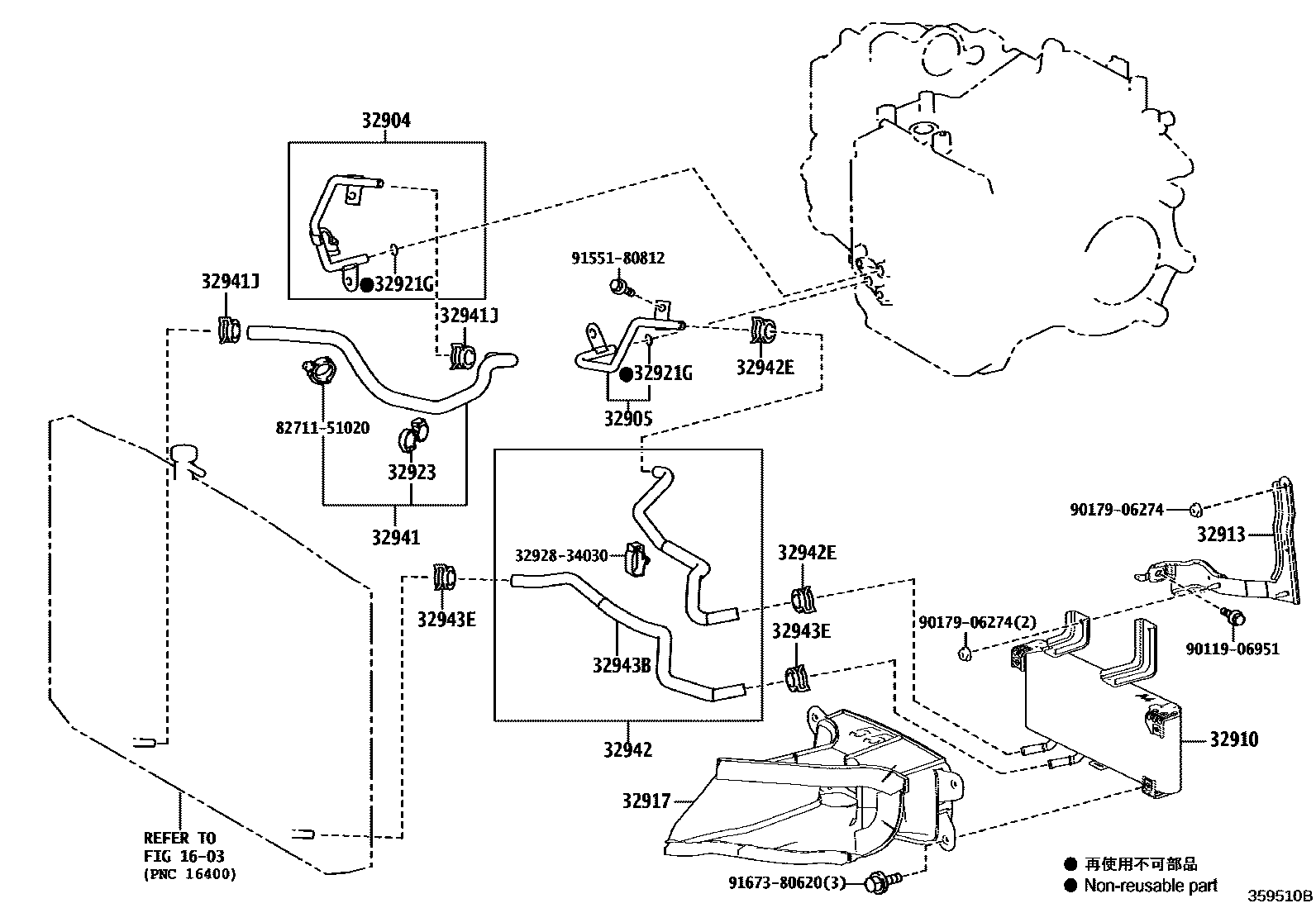

OIL COOLER & TUBE (ATM)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

32904TUBE SUB-ASSY, OIL COOLER INLET, NO.1

main32904-48200iGGL2#201509-201908

32905TUBE SUB-ASSY, OIL COOLER OUTLET, NO.1

main32905-48240iGGL2#201509-201908

32910COOLER ASSY, OIL

main32910-48090iAGL2#,GGL2#201908

main32910-48200iAGL2#,GGL2#201509-201908

32913BRACKET, OIL COOLER

main32913-48050iAGL2#,GGL2#201509-201908

main32913-48070iAGL2#,GGL2#201908

32917DUCT, TRANSMISSION OIL COOLER AIR

main32917-48060iAGL2#,GGL2#201509-201908

main32917-48080iAGL2#,GGL2#201908

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11033×2iGGL2#201509-201908

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-45010iGGL2#201509-201908

32941HOSE, OIL COOLER INLET, NO.1

main32930-48050iGGL20; GGL25201509-201908

NO.1

main32930-48070iGGL25201509-201908

NO.2

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004×2iAGL2#; GGL2#201509-201908

NO.1; NO.2

32942HOSE, OIL COOLER OUTLET, NO.1

main32930-48070iGGL20201509-201908

main32942-48110iAGL2#201509-201908

main32942-48130iAGL2#201908

main32942-48140iGGL2#201908

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004×2iAGL2#; GGL2#201509-201908

NO.2

32943HOSE, TRANSMISSION OIL COOLER, NO.1

main32942-48120iAGL2#201908

32943BHOSE, TRANSMISSION OIL COOLER

main32943-48140iAGL2#201908

main32943-48170iGGL2#201509-201908

main32943-48180iAGL2#201509-201908

main32943-48200iGGL2#201908

32943ECLIP, NO.3(FOR OIL COOLER HOSE)

main90466-16004×2iAGL2#; GGL2#201908

NO.1

3292834030CLAMP, FLEXIBLE HOSE, NO.1

main32928-34030

8271151020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-51020

9011906951

main90119-06951

9017906274

main90179-06274

9155180812

main91551-80812

9167380620

main91673-80620

21 parts on this diagram · 9 diagrams in section
