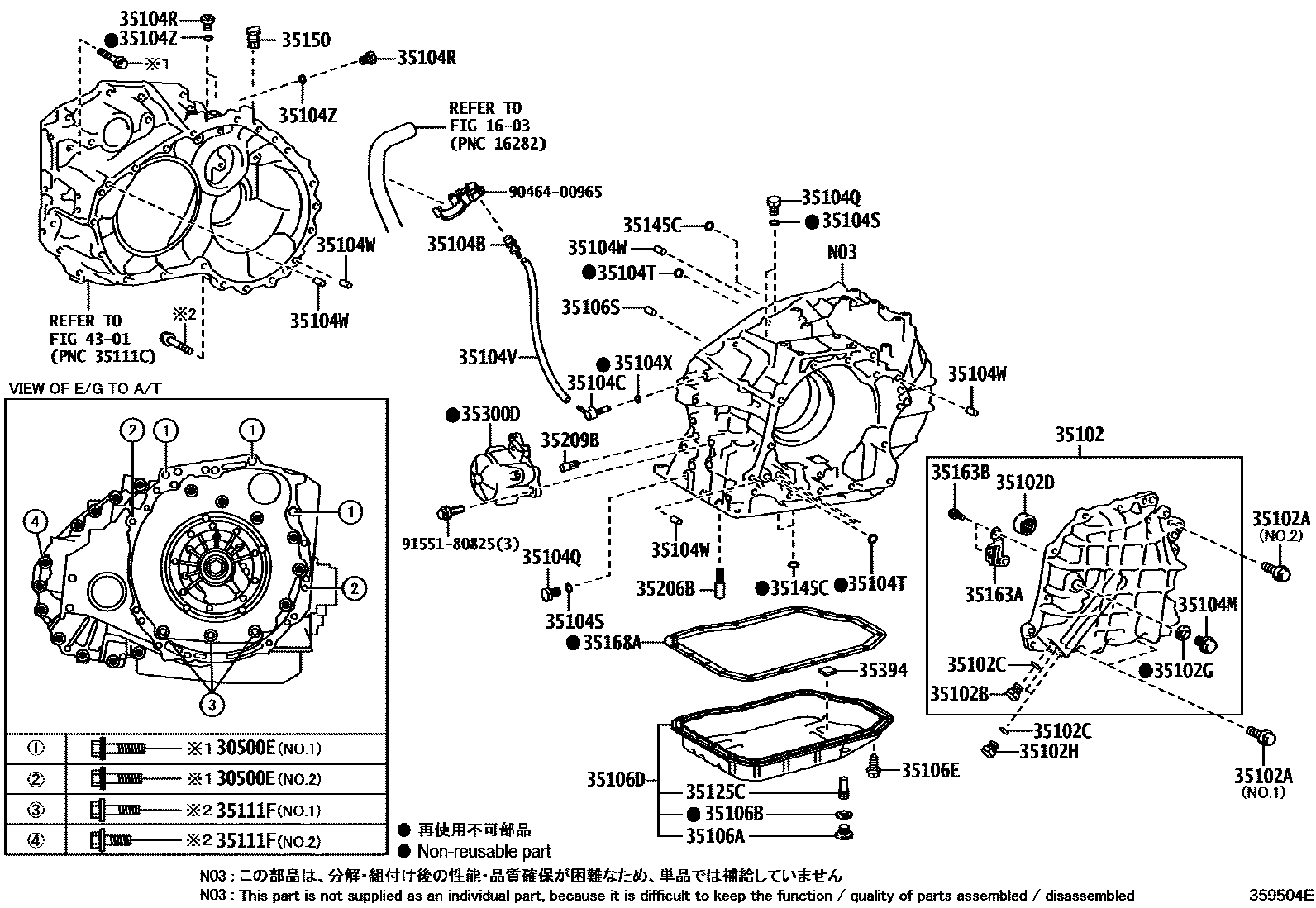

TRANSMISSION CASE & OIL PAN (ATM)
1603RADIATOR & WATER OUTLET
30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)
*10-1.25PX41-28,NO.3:REFER ILLUST.
*12-1.25PX55-30,NO.1:REFER ILLUST.
*12-1.25PX50-30,NO.2:REFER ILLUST.
*10-1.25PX50-30,NO.2:REFER ILLUST.
35102COVER SUB-ASSY, TRANSAXLE REAR
35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)
*8-1.25PX28-22,NO.1:REFER ILLUST.
*8-1.25PX28-22,NO.2:REFER ILLUST.
35102BPLUG(FOR TRANSAXLE REAR COVER)
35102CRING, O(FOR TRANSAXLE REAR COVER PULG)
35102DBEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER)
35102GGASKET (FOR TRANSAXLE REAR COVER )
35102HPLUG, NO.2 (FOR TRANSAXLE REAR COVER)
35104BPLUG, BREATHER, NO.1 (ATM)
NO.1
NO.2
35104CPLUG, BREATHER, NO.2 (ATM)
35104MPLUG, REFILL(ATM)
35104QPLUG, NO.1 (FOR TRANSAXLE CASE)
35104RPLUG, NO.2 (FOR TRANSAXLE CASE)
NO.3
NO.1
NO.2
35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)
NO.1
NO.2
35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)
35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)
35104ZGASKET (FOR TRANSAXLE CASE)
35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
35106EBOLT (FOR TRANSAXLE OIL PAN)
35106SPIN, RING (FOR TRANSAXLE CASE)
35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
*8-1.25PX30-25,NO.2
*8-1.25PX35-30,NO.1
*8-1.25PX45-22,NO.1:REFER ILLUST.
*8-1.25PX49-30,NO.3
*10-1.25PX43-26,NO.4
*8-1.25PX45-22,NO.2:REFER ILLUST.
35125CTUBE, TRANSMISSION OIL FILLER, NO.1
35163APLATE, TRANSAXLE REAR COVER
35163BSCREW, HEX LOBULAR(FOR TRANSAXLE REAR COVER PLATE)
35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN
35206BVALVE SUB-ASSY, CHECK, NO.1
35209BVALVE SUB-ASSY, TRANSAXLE OIL CHECK
35300DPUMP ASSY, OIL W/MOTOR
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
NO.1
NO.2
4301FRONT AXLE HOUSING & DIFFERENTIAL
9046400965
main90464-00965
9155180825
main91551-80825
39 parts on this diagram · 2 diagrams in section
