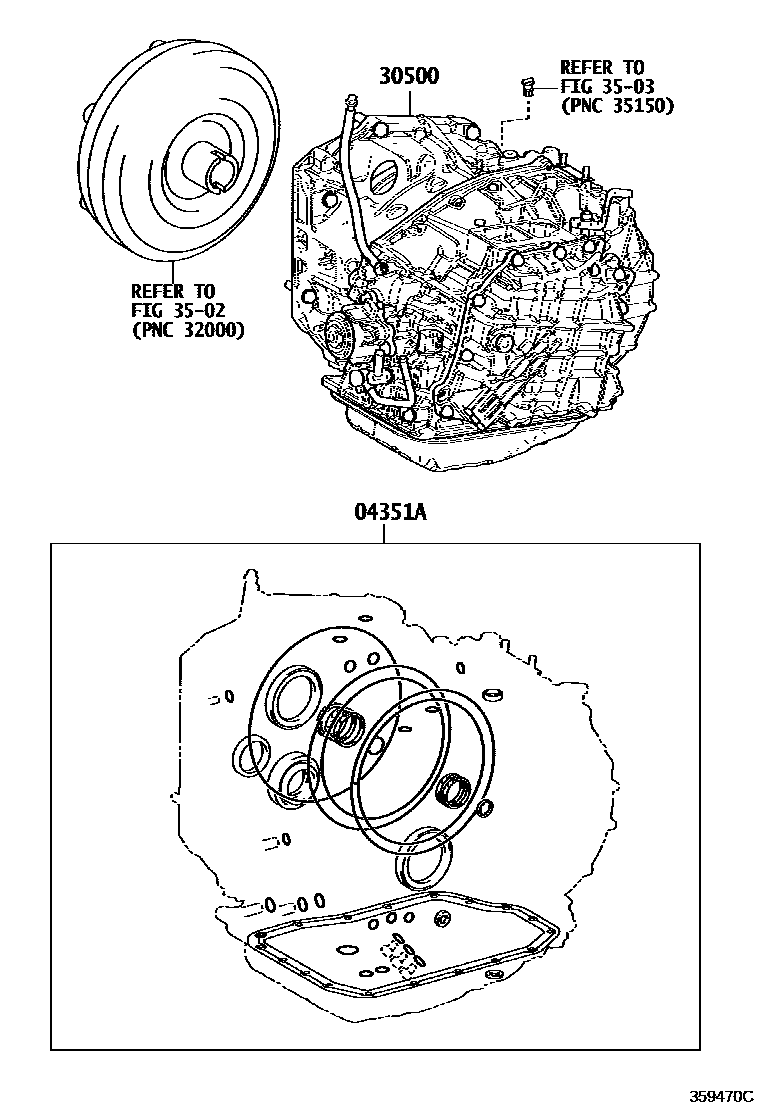

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1U661E,U661F 0002 1U881E,U881F

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-48230iGGL25201509-201904

main04351-48240iAGL20201707-201811

main04351-48241iAGL20201509-201707

main04351-48242iAGL20201908-202209

main04351-48250iAGL25201707-201811

main04351-48251iAGL25201509-201707

main04351-48252iAGL25201908-202209

main04351-48260iGGL20201509-201904

main04351-48261iGGL20201908-202209

main04351-48320iGGL25201908-202209

30500TRANSAXLE ASSY, AUTOMATIC

main30500-48420iAGL20201509-201908

U661E

main30500-48430iAGL25201908

U661F

main30500-48550iGGL20201509-201904

U881E

main30500-48551iGGL20201905-201908

U881E

main30500-48560iGGL25201509-201904

U881F

main30500-48561iGGL25201908

U881F

3502TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

→ Go to FIG 35-02

3503TRANSMISSION CASE & OIL PAN (ATM)

→ Go to FIG 35-03

4 parts on this diagram · 2 diagrams in section
