VACUUM PIPING

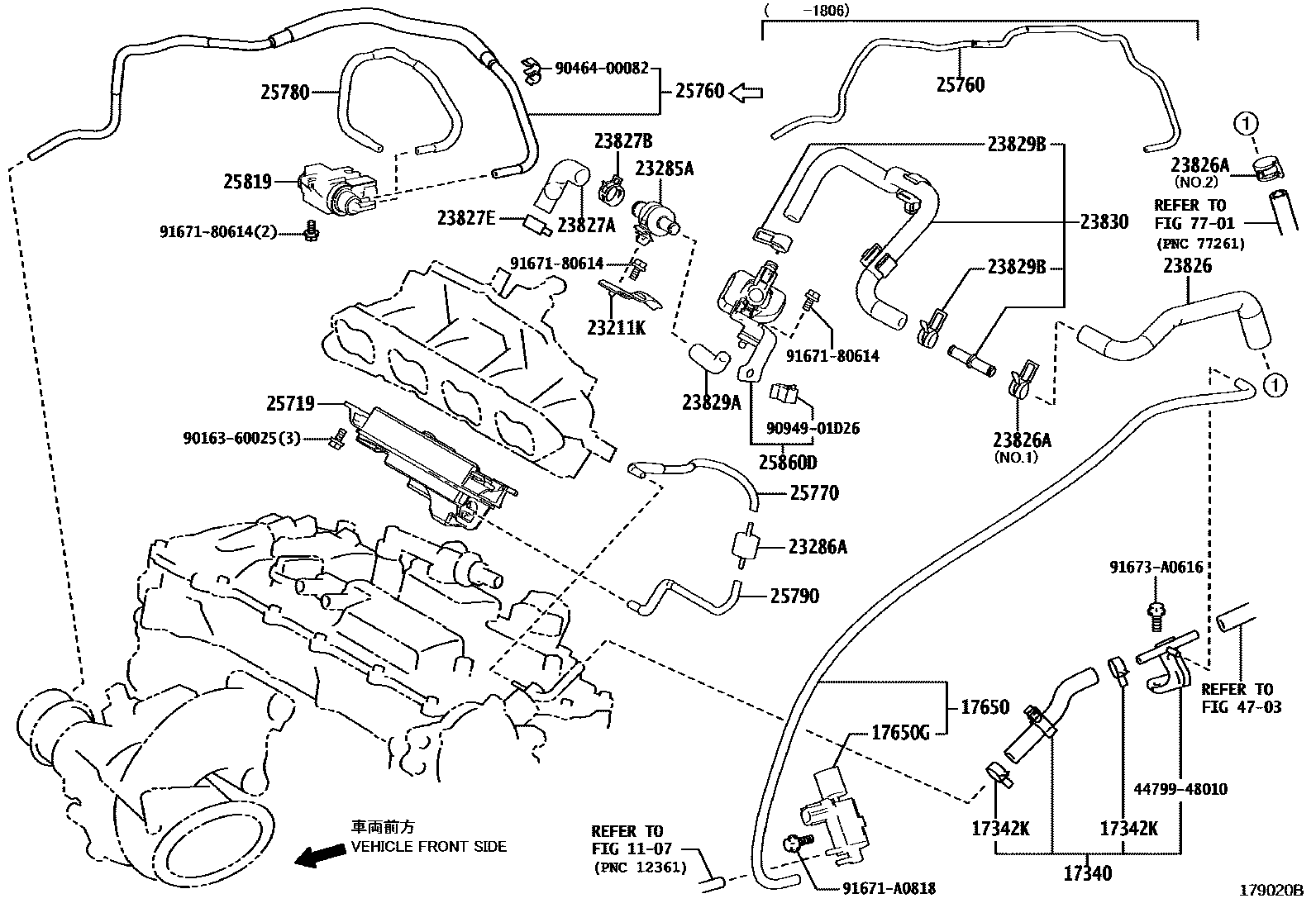

Parts diagram
1107MOUNTING
→ Go to FIG 11-07
17340HOSE ASSY, VACUUM SWITCHING VALVE
main44750-48460i201509-201908
17342KCLIP(FOR VACUUM HOSE)
main90467-16014×2i201509-201908
17650VALVE ASSY, VACUUM SWITCHING
main25860-36140i201908
17650GVALVE, DUTY VACUUM SWITCHING
main90910-12132i201509-201908
23211KBRACKET
main23211-36010i201509-201908
23285AVALVE, CHECK, NO.1
main25748-36010i201509-201908
23286AVALVE, CHECK, NO.2
main90917-10065i201509-201908
23826HOSE, FUEL VAPOR FEED, NO.1
main23826-31290i201509-201712
main23826-31410i201908
main23826-36200i201509-201712
main23826-36270supersedes 23826-36290i202007
TAIWAN SPEC
main23826-36290i201712-201908
main23826-31260i201908
HONG KONG SPEC,NO.1; MACAO SPEC,NO.1
main23826-31480i201908
HONG KONG SPEC,NO.2; MACAO SPEC,NO.2
23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
main90466-13004i201509-201712
NO.1:REFER ILLUST.
main90466-13005i201712-201908
NO.1:REFER ILLUST.
main96133-41501supersedes 90466-13005i202007
NO.1:REFER ILLUST.; TAIWAN SPEC,NO.1:REFER ILLUST.
main96136-41901i201709-201908
NO.2:REFER ILLUST.
main96137-41901i201509-201708
NO.2:REFER ILLUST.
main90467-16014i201908
HONG KONG SPEC; MACAO SPEC
23827AHOSE, FUEL VAPOR FEED, NO.2
main23827-36150i201509-201908
23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
main96136-42201i201509-201908
main96133-41501i202107
SINGAPORE SPEC
23827ECLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
main96137-41901i201908
main90467-16014i201908
HONG KONG SPEC; MACAO SPEC
23829AHOSE, FUEL VAPOR FEED
main23826-36160supersedes 23826-36170i202007
TAIWAN SPEC
main23826-36170i201509-201908
main23829-31170i201510-201712
23829BCLIP(FOR FUEL VAPOR FEED HOSE)
main90466-13004i201509-201712
NO.2
main90466-13005×2i201908
NO.2
main96132-51100i201509-201908
NO.1
main96138-41501i201908
NO.2
main96136-41901i201908
HONG KONG SPEC,NO.2; MACAO SPEC,NO.2
23830HOSE ASSY, FUEL VAPOR FEED, NO.2
main23830-36150i201509-201908
main23827-31190i201908
HONG KONG SPEC; MACAO SPEC
25719TANK, VACUUM SURGE
main25719-36010i201509-201908
main25719-31070i201908
HONG KONG SPEC; MACAO SPEC
25760HOSE ASSY, VACUUM TRANSMITTING
main25760-36040i201509-201806
main25760-36041i201908
25770HOSE ASSY, VACUUM TRANSMITTING, NO.2
main25770-36010i201509-201908
25780HOSE ASSY, VACUUM TRANSMITTING, NO.3
main25780-36010i201509-201908
25790HOSE ASSY, VACUUM TRANSMITTING, NO.4
main25790-36010i201509-201908
25819VALVE ASSY, VACUUM REGULATING
main25819-0W010i201509-201908
25860VALVE ASSY, VACUUM SWITCHING, NO.1
main25860-31090i201509-201712
main25860-31120i201509-201908
NO.2
main25860-31130i201908
NO.3
main25860-31160i201712-201908
NO.1
main25860-31190i201908
HONG KONG SPEC,NO.1; MACAO SPEC,NO.1
25860DVALVE ASSY, VACUUM SWITCHING, NO.2
main25860-36111supersedes 25860-36121i202007
TAIWAN SPEC
main25860-36121i201908
main90910-12132i201908
4703BRAKE BOOSTER & VACUUM TUBE
→ Go to FIG 47-03
7701FUEL TANK & TUBE
→ Go to FIG 77-01
4479948010WAY, BRAKE VACUUM HOSE
main44799-48010
9016360025
main90163-60025
9046400082
main90464-00082
9094901D26
main90949-01D26
9167180614
main91671-80614
91671A0818
main91671-A0818
91673A0616
main91673-A0616
