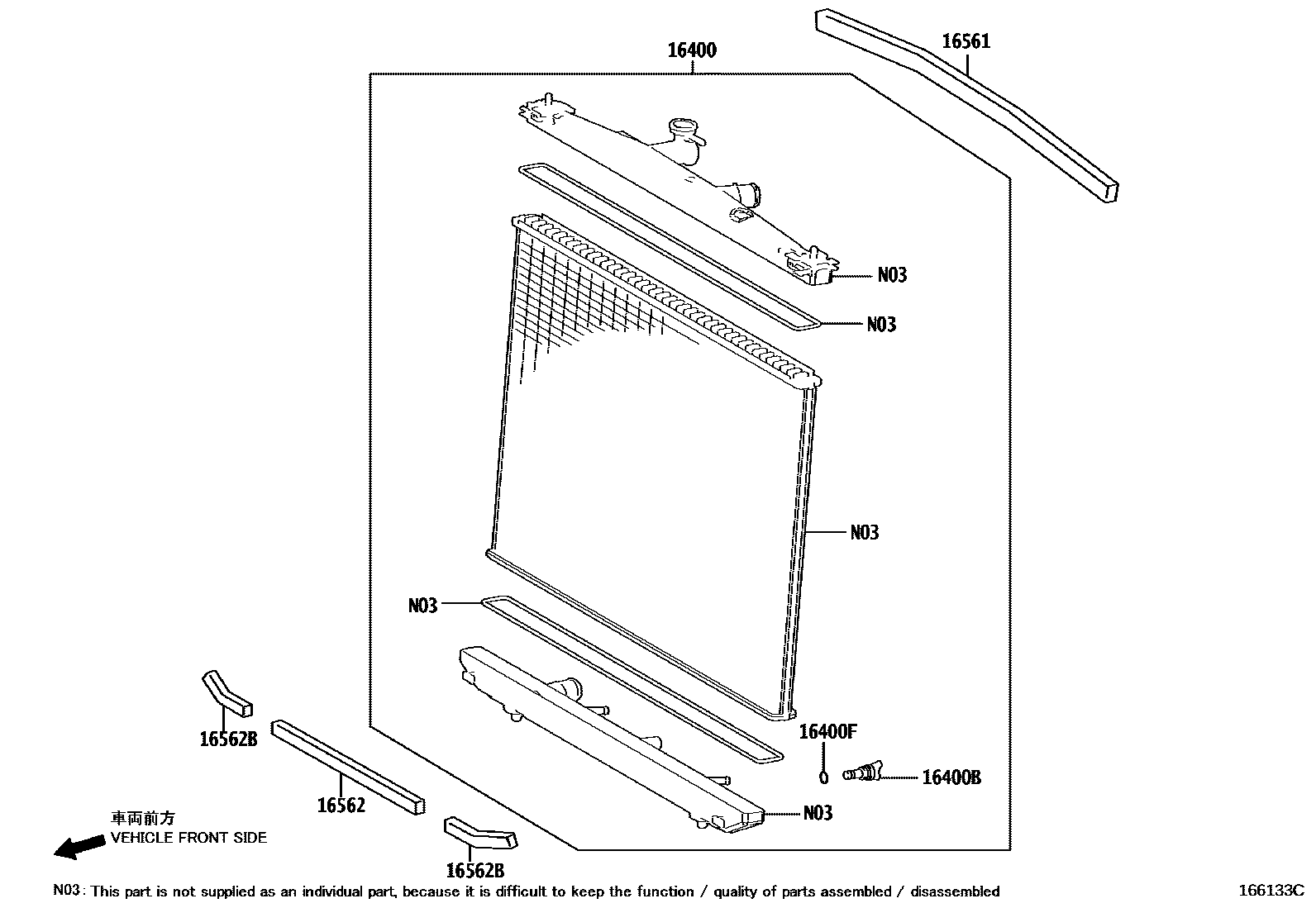

RADIATOR & WATER OUTLET

0001 1RADIATOR 0002 1RADIATOR SIDE 0003 1ENGINE SIDE PIPING(1/3) 0004 1ENGINE SIDE PIPING(2/3) 0005 1ENGINE SIDE PIPING(3/3) 0006 1INTERCOOLER SIDE 0007 1 0008 1 0009 1 0010 1

16400RADIATOR ASSY

main16400-31A30i2GRFXS..GYL25201510-201908

main16400-31A40i2GRFKS..GGL2#201509-201908

main16400-36110i8ARFTS..AGL2#201509-201908

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280i8ARFTS..AGL2#201509-201908

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i2GRFXS..GYL25;2GRFKS..GGL2#..GCC201509-201908

16561SEAL, RADIATOR TO SUPPORT, NO.1

main16561-31120i2GR#..GGL2#,GYL25..CHI,GEN201509-201908

NO.1

main16561-31150i2GR#..GGL2#,GYL25..GCC201509-201908

NO.2

main16561-31160i2GRFKS..GGL2#..GCC201509-201908

NO.3

16562SEAL, RADIATOR TO SUPPORT, NO.2

main16562-31140i2GR#..GGL2#,GYL25201509-201908

NO.1

main16562-31150i2GR#..GGL2#,GYL25201509-201908

NO.2

16562BSEAL, RADIATOR TO SUPPORT, NO.4

main16562-31150i8ARFTS..AGL2#201509-201908
