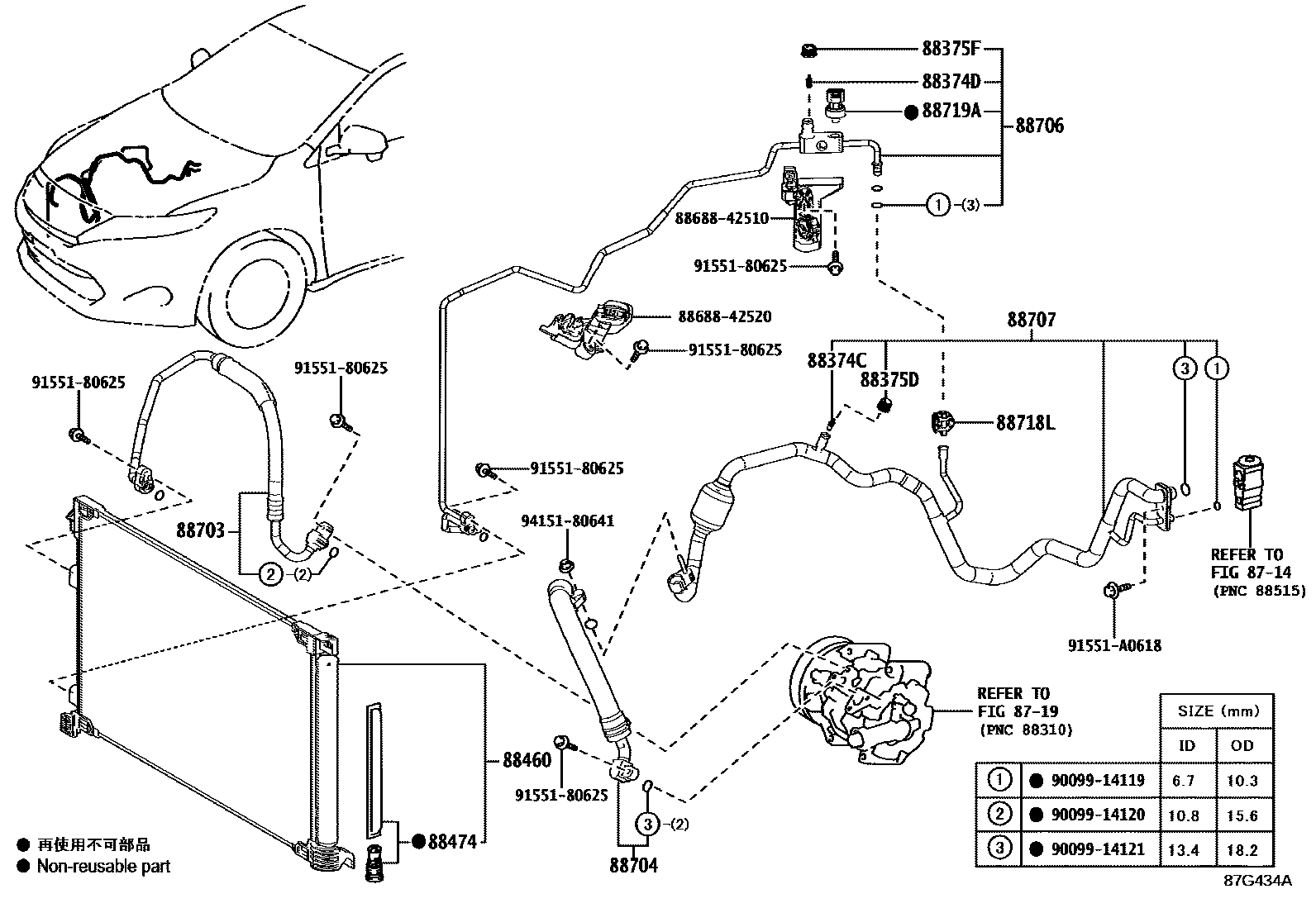

HEATING & AIR CONDITIONING - COOLER PIPING

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374CVALVE, SERVICE, NO.2

main88374-30010iASU60201705

88374DVALVE, SERVICE NO.3

main88374-30010iASU60201705

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iASU60201705

88375FCAP, SERVICE VALVE, NO.3

main88375-30280iASU60201705

88460CONDENSER ASSY, COOLER

main88460-48160iASU60201705

88474DRYER, COOLER

main88474-12010iASU60201705

88703HOSE SUB-ASSY, DISCHARGE

main88703-48350iASU60201705

88704HOSE SUB-ASSY, SUCTION

main88704-78010iASU60201705

88706PIPE SUB-ASSY, LIQUID

main88706-48030iASU60201705

88707PIPE SUB-ASSY, SUCTION

main88710-48550iASU60201705

88718LCLAMP, PIPING

main88718-2D150iASU60201705

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iASU60201705

8868842510BRACKET, COOLER DIAPHRAGM

main88688-42510

8868842520BRACKET, COOLER DIAPHRAGM

main88688-42520

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9155180625

main91551-80625

91551A0618

main91551-A0618

9415180641

main94151-80641

22 parts on this diagram · 1 diagram in section
