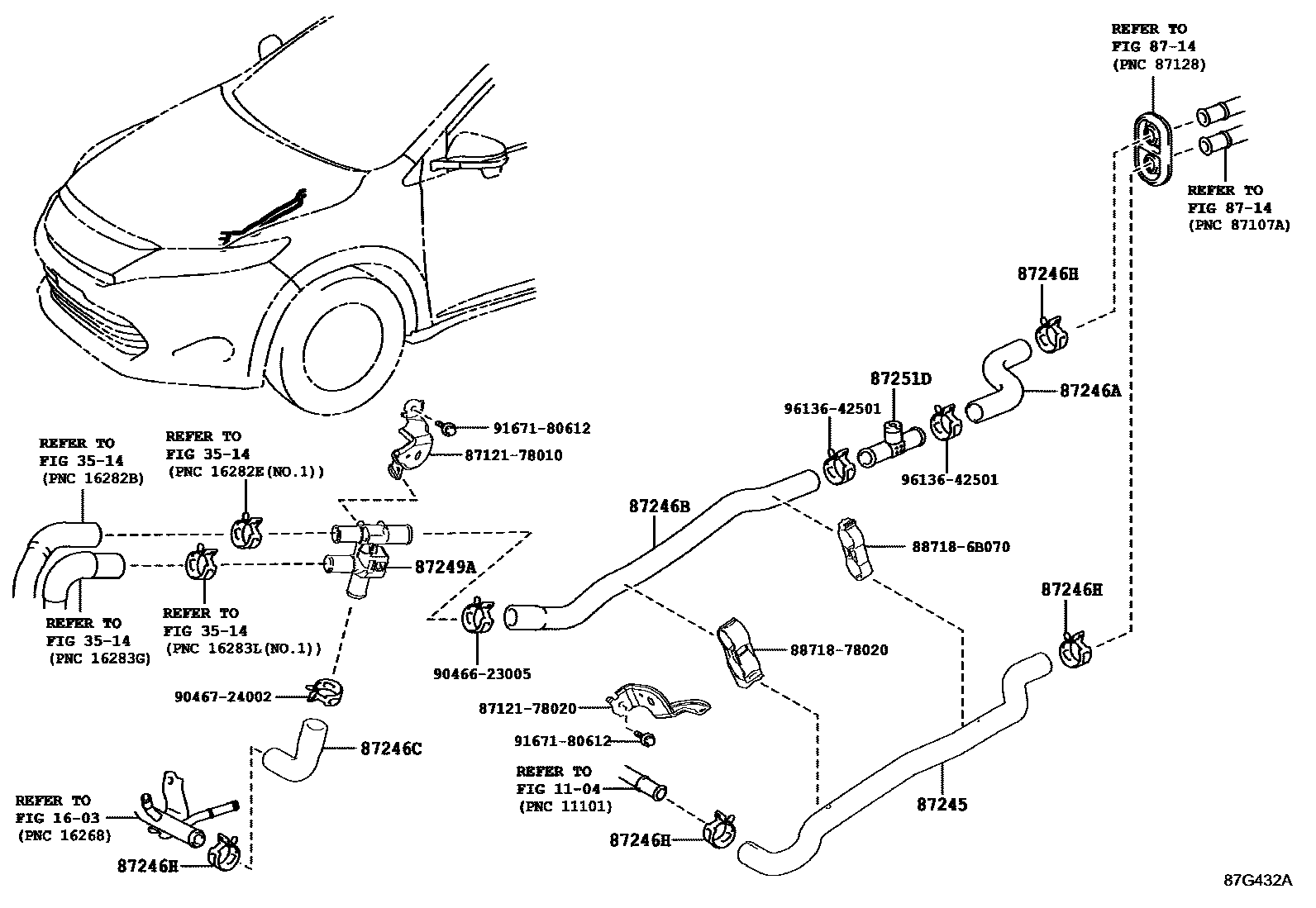

HEATING & AIR CONDITIONING - WATER PIPING

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

3514OIL COOLER & TUBE (ATM)

→ Go to FIG 35-14

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87209-48310iASU60201705

87246AHOSE, HEATER WATER, OUTLET A

main87245-48F80iASU60201705

87246BHOSE, HEATER WATER, OUTLET B

main87245-78030iASU60201705-201708

main87245-78031iASU60201709

87246CHOSE, HEATER WATER, OUTLET C

main87245-78010iASU60201705

87246HCLIP OR CLAMP(FOR HEATER WATER HOSE)

main96138-42501×4iASU60201705

87249APIPE, HEATER WATER OUTLET, A

main87248-78010iASU60201705

87251DJOINT, WATER, NO.1

main87251-78010iASU60201705

8712178010BRACKET, HEATER, FRONT RH

main87121-78010

8712178020BRACKET, HEATER, FRONT RH

main87121-78020

887186B070PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-6B070

8871878020PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-78020

9046623005

main90466-23005

9046724002

main90467-24002

9167180612

main91671-80612

9613642501

main96136-42501

19 parts on this diagram · 1 diagram in section
