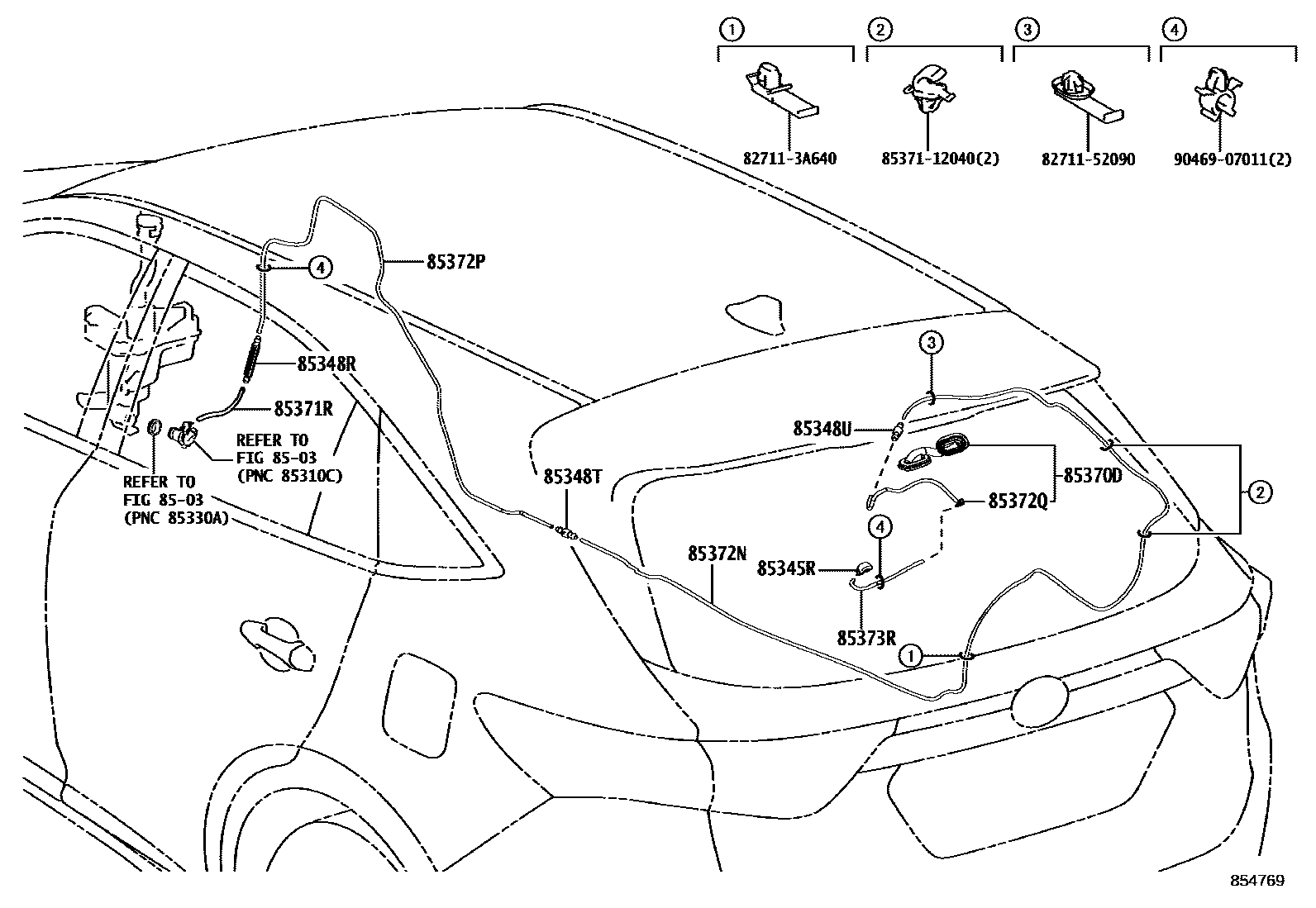

REAR WASHER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85345RNOZZLE, REAR WASHER

main85391-48060iASU60201705

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-32150iASU60201705

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iASU60201705

85348UJOINT, REAR WASHER HOSE, NO.3

main85349-89122iASU60201705

85370DHOSE ASSY, REAR WASHER, NO.1

main85370-48380iASU60201705

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33080iASU60201705-202005

L=1450(*H,L=200)

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-62098iASU60201705

L=3374

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90099-33382iASU60201705

L=1790

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main85374-48010iASU60201705-202005

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iASU60201705

L=1450(*H,L=220)

827113A640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A640

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-12040

9046907011

main90469-07011

15 parts on this diagram · 1 diagram in section
