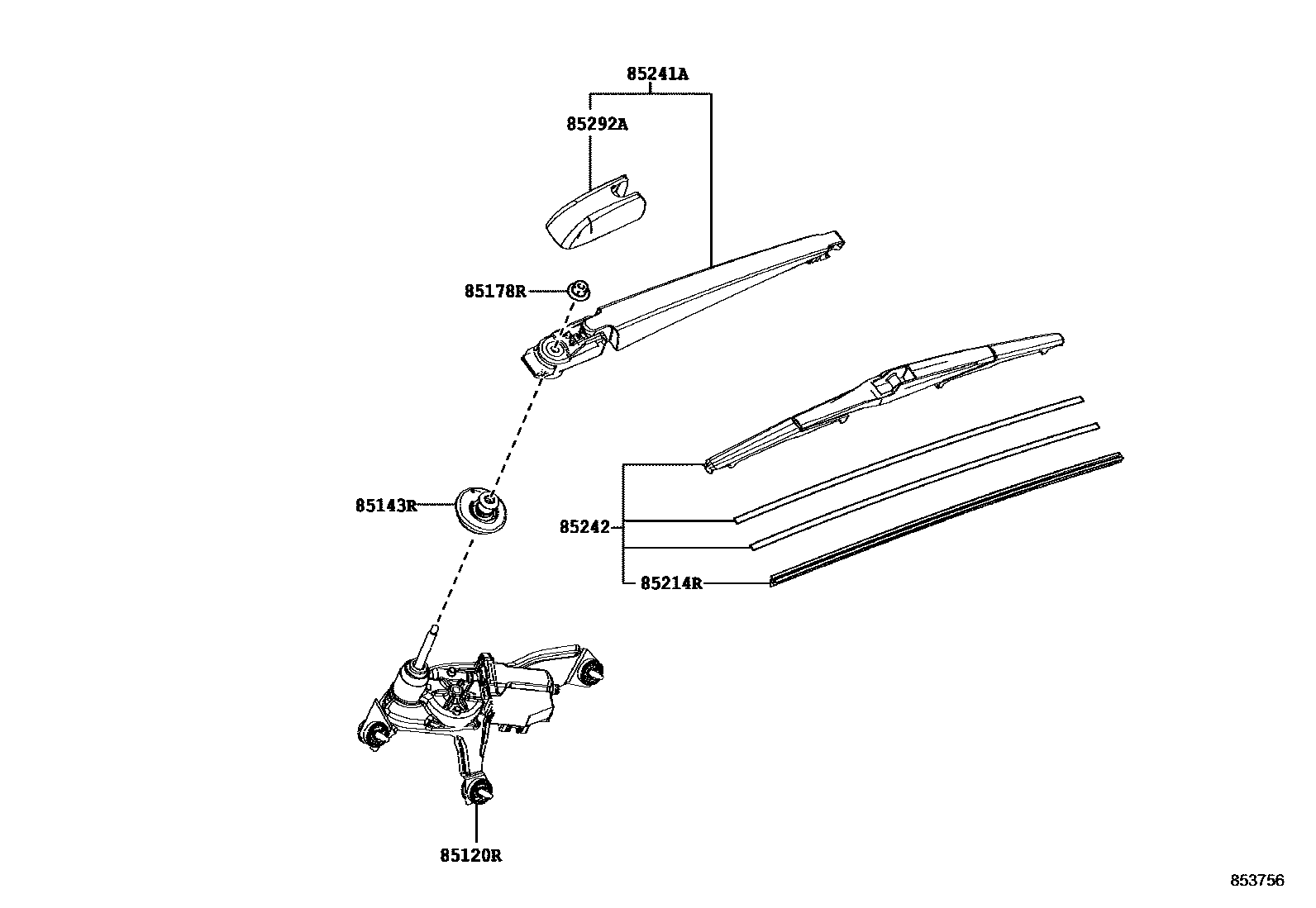

REAR WIPER

85120RMOTOR AND BRACKET ASSY, REAR WIPER

main85130-48060iASU60201705

85143RGROMMET, REAR WIPER MOTOR

main85143-60130iASU60201705

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iASU60201705

85214RRUBBER, REAR WIPER

main85214-30280iASU60201705

85241AARM, REAR WIPER

main85241-12150iASU60201705

85242BLADE, RR WIPER

main85242-12130iASU60201705

85292ACAP, REAR WIPER ARM HEAD

main85292-42010iASU60201705

7 parts on this diagram · 1 diagram in section
