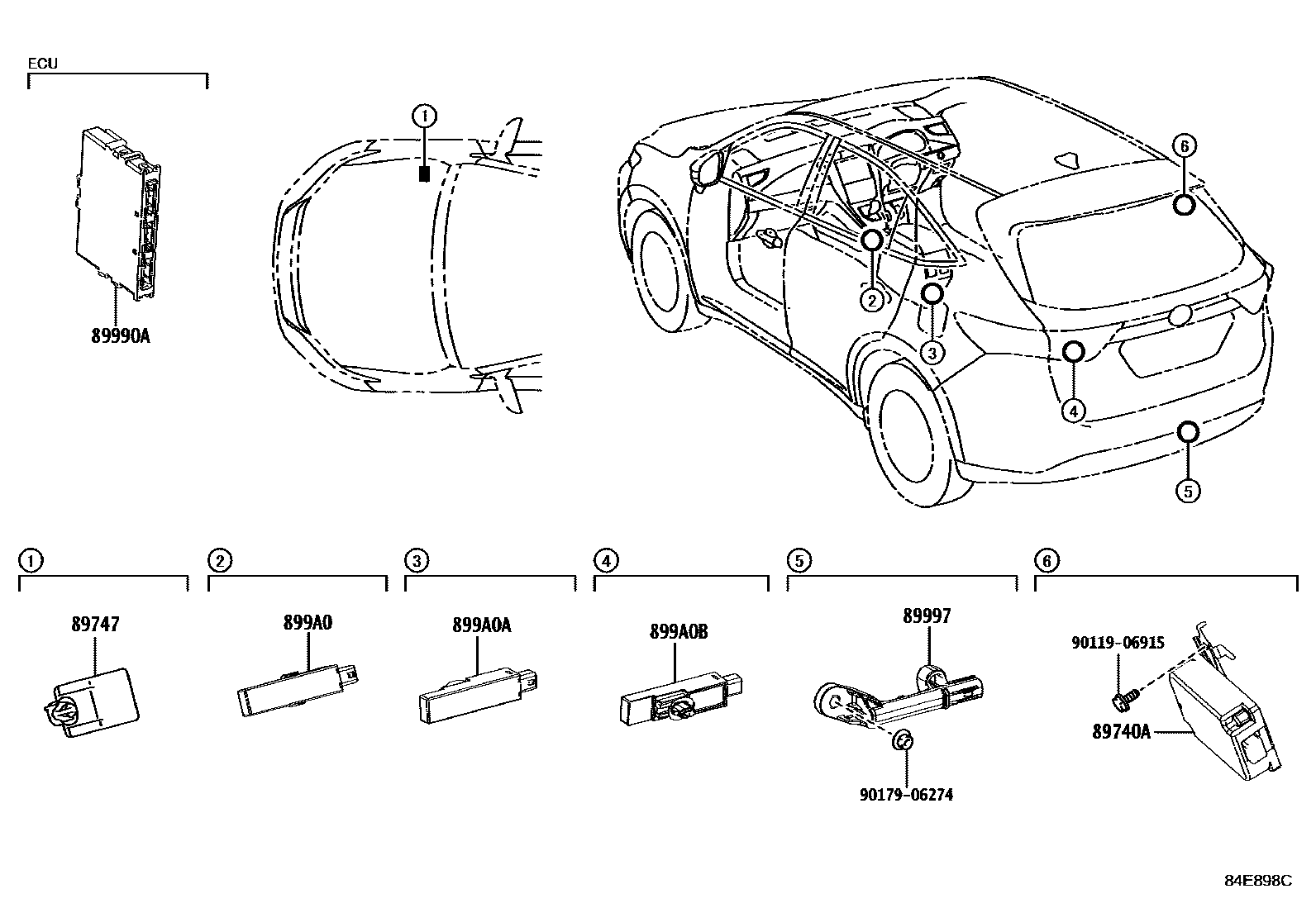

WIRELESS DOOR LOCK

89740ARECEIVER ASSY, SMART DOOR CONTROL

main89740-48270iASU60201705

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iASU60201705

89990ACOMPUTER ASSY, SMART KEY

main89990-48490iASU60201705

P/N LABEL=8999048490

89997ANTENNA, ELECTRICAL KEY

main89997-30100iASU60201705

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-60010iASU60201705

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-47010iASU60201705

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-47010iASU60201705

9011906915

main90119-06915

9017906274

main90179-06274

9 parts on this diagram · 1 diagram in section
