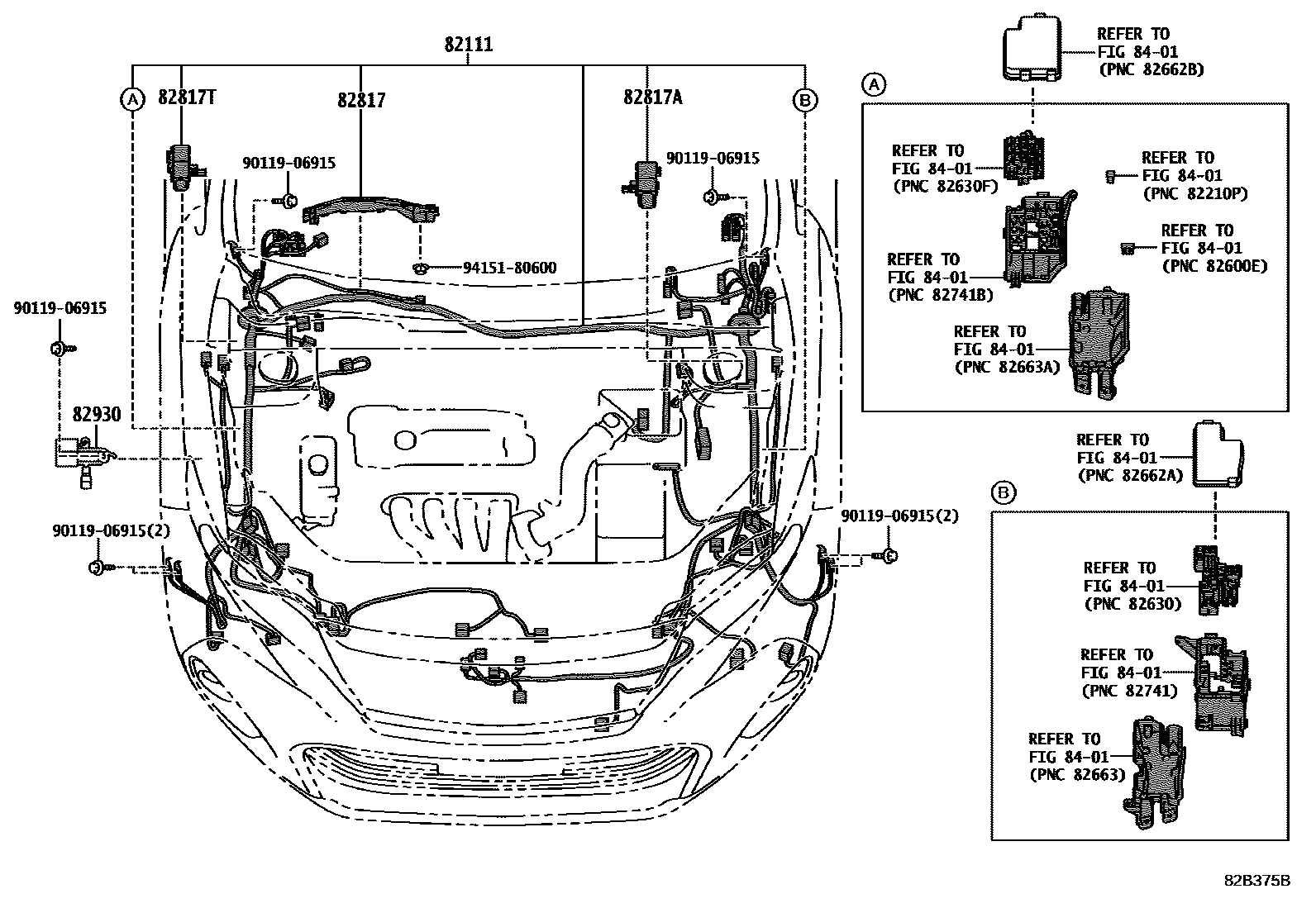

82111WIRE, ENGINE ROOM MAIN

main82111-4D550iASU60201705

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-42470iASU60201705

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-42750iASU60201705

82817TPROTECTOR, WIRING HARNESS, NO.15

main82817-42760iASU60201705

82930CONDENSER ASSY, WIRING HARNESS, NO.1

main82930-48040iASU60201705

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906915

main90119-06915

9415180600

main94151-80600

8 parts on this diagram · 9 diagrams in section
