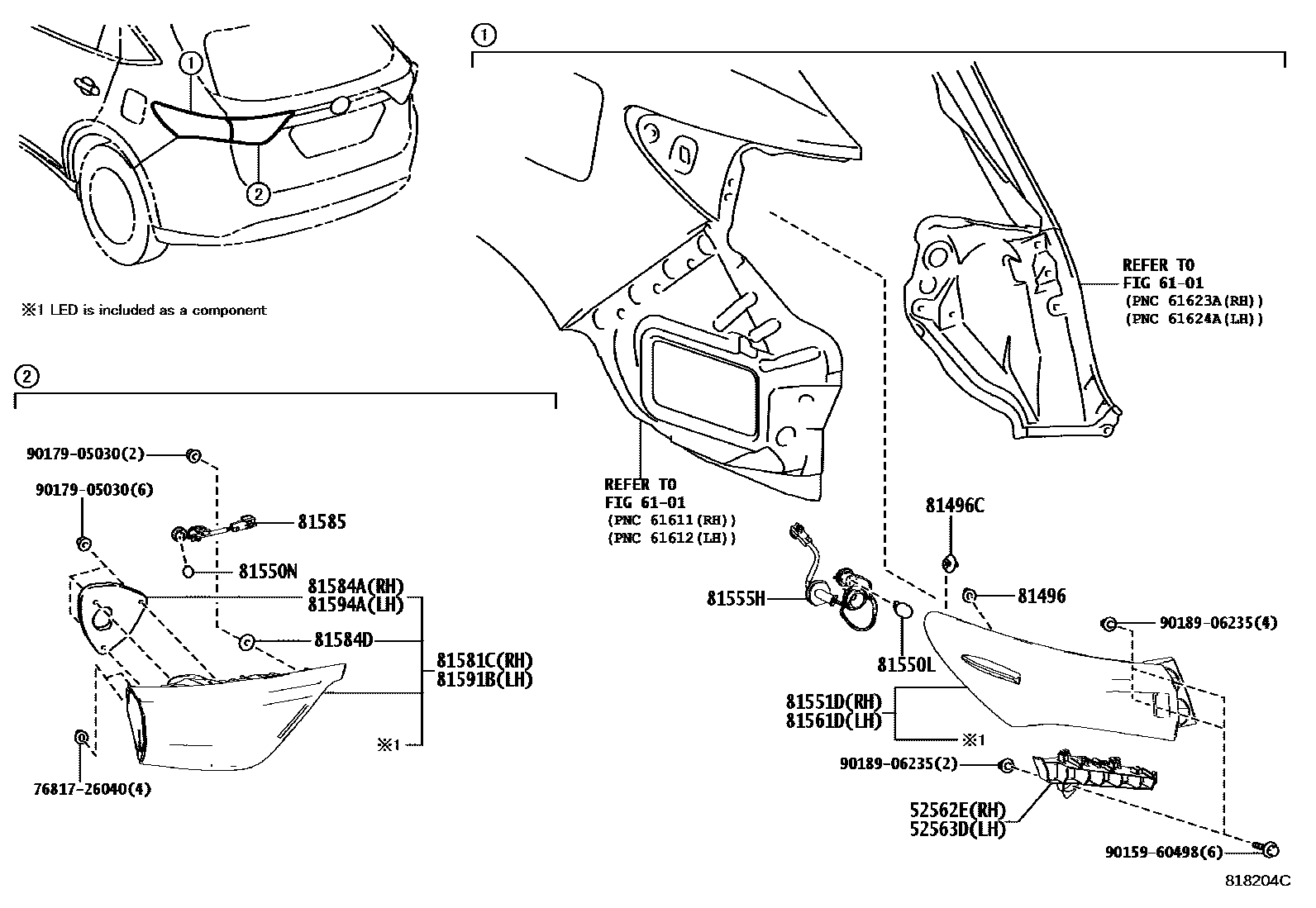

REAR COMBINATION LAMP

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-48010iASU60201705

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-48010iASU60201705

6101SIDE MEMBER

→ Go to FIG 61-01

81496GUIDE, REAR COMBINATION LAMP

main81496-52020×2iASU60201705

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010×2iASU60201705

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011×2iASU60201705

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059×2iASU60201705

12V 16W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-48430iASU60201705-201908

main81551-48431iASU60201908

81555HSOCKET & WIRE, REAR COMBINATION LAMP

main81555-48330×2iASU60201705

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-48420iASU60201705-201908

main81561-48421iASU60201908

81581CLENS AND BODY, REAR LAMP, RH

main81581-48250iASU60201705-201911

main81581-48251iASU60201911

81584AGASKET, REAR LAMP RH

main81584-48240iASU60201705

81584DGASKET, REAR LAMP

main81584-22040×2iASU60201705

81585SOCKET & WIRE, REAR LAMP

main81585-48140×2iASU60201705

81591BLENS AND BODY, REAR LAMP, LH

main81591-48260iASU60201705-201911

main81591-48261iASU60201911

81594AGASKET, REAR LAMP LH

main81594-48250iASU60201705

7681726040CLIP, BACK DOOR OUTSIDE GARNISH

main76817-26040

9015960498

main90159-60498

9017905030

main90179-05030

9018906235

main90189-06235

20 parts on this diagram · 1 diagram in section
