SEAT BELT & CHILD RESTRAINT SEAT

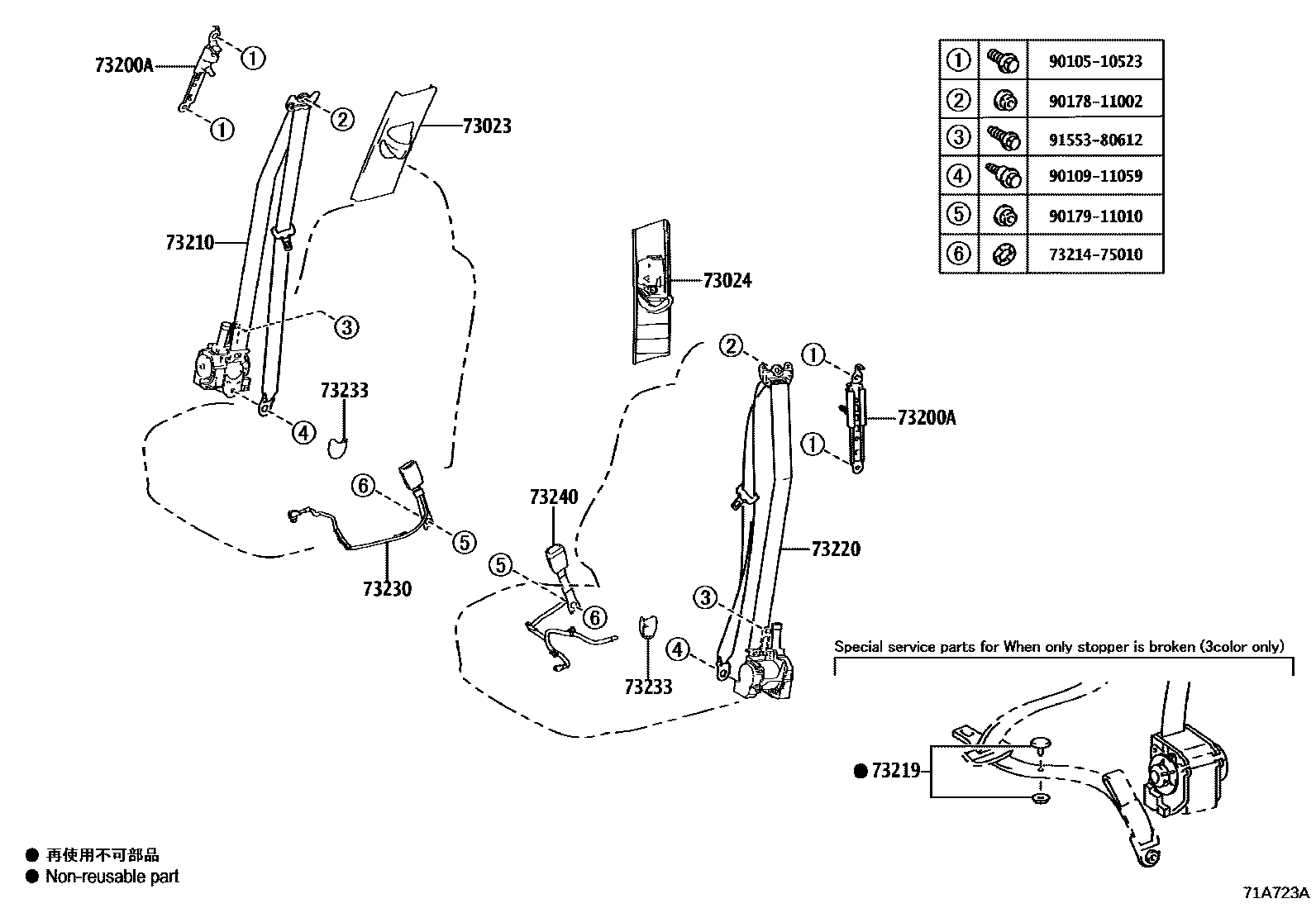

0001 1FRONT SEAT BELT 0002 1REAR SEAT BELT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-33030-C0iASU60201705

BLACK,TRIM2#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-33030-C0iASU60201705

BLACK,TRIM2#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070×2iASU60201705

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-48610-C0iASU60201705

BLACK,TRIM2#

73219STOPPER, TONGUE PLATE

main73219-33010iASU60201705

BLACK

main73219-33020iASU60201705

GRAY

main73219-33030iASU60201705

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-48490-C0iASU60201705

BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-48590-C0iASU60201705

BLACK,TRIM2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C1×2iASU60201705

BLACK,TRIM2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-48480-C0iASU60201705

BLACK,TRIM2#

main73230-48500-C0iASU60..G201705

"METAL AND LEATHER PACKAGE"*(S),BLACK,TRIM2#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010911059

main90109-11059

9017811002

main90178-11002

9017911010

main90179-11010

9155380612

main91553-80612

15 parts on this diagram · 2 diagrams in section
