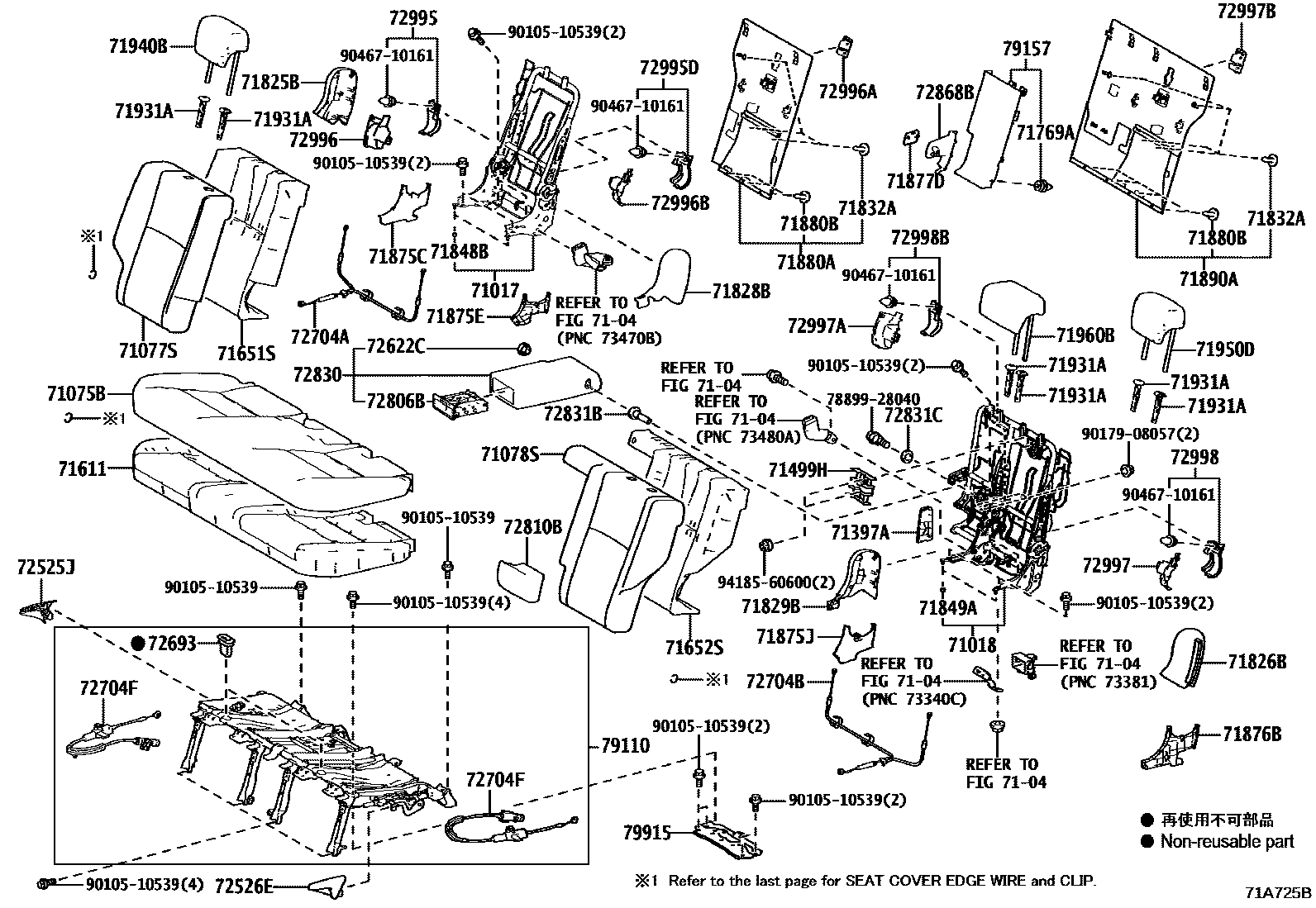

REAR SEAT & SEAT TRACK

0001 1 0002 1SEAT COVER EDGE WIRE & CLIP

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-48200iASU60201705-201908

main71017-48201iASU60201909-202005

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-48161iASU60201705-201908

main71018-48162iASU60201909-202005

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-48770-C0iASU60201705-202005

BLACK REDPERFORATION,TRIM2#

main71075-48760-C1iASU60..G201705-202005

"METAL AND LEATHER PACKAGE"*(S),BLACK/RED,TRIM2#

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-48C50-C2iASU60201705-201803

BLACK REDPERFORATION,TRIM2#

main71077-48C51-C1iASU60201803-202005

BLACK REDPERFORATION,TRIM2#

main71077-48C40-C3iASU60..G201705-201803

"METAL AND LEATHER PACKAGE"*(S),BLACK/RED,TRIM2#

main71077-48C41-C5iASU60..G201803-202005

"METAL AND LEATHER PACKAGE"*(S),BLACK/RED,TRIM2#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-48B50-C2iASU60201705-201803

BLACK REDPERFORATION,TRIM2#

main71078-48B51-C1iASU60201803-202005

BLACK REDPERFORATION,TRIM2#

main71078-48B40-C3iASU60..G201705-201803

"METAL AND LEATHER PACKAGE"*(S),BLACK/RED,TRIM2#

main71078-48B41-C5iASU60..G201803-202005

"METAL AND LEATHER PACKAGE"*(S),BLACK/RED,TRIM2#

71397ACOVER, CENTER SEAT HINGE

main71397-48040-C0iASU60201705-202005

BLACK,TRIM2#

71499HDAMPER, REAR SEATBACK SPRING, LH

main71499-48090iASU60201705-202005

71611PAD, REAR SEAT CUSHION

main71503-48010iASU60201705-202005

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-48290iASU60201705-202005

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-48260iASU60201705-202005

71769ACLIP, REAR SEATBACK BOARD

main71769-47020iASU60201705-202005

71825BMOULDING, REAR SEAT CUSHION, RH

main71825-48070-C0iASU60201705-202005

BLACK,TRIM2#

71826BMOULDING, REAR SEAT CUSHION, LH

main71826-48060-C0iASU60201705-202005

BLACK,TRIM2#

71828BMOULDING, REAR SEAT CUSHION, REAR RH

main71828-48110-C0iASU60201705-202005

BLACK,TRIM2#

71829BMOULDING, REAR SEAT CUSHION, REAR LH

main71829-48090-C0iASU60201705-202005

BLACK,TRIM2#

71832ACLIP, REAR SEATBACK CARPET OR MAT

main71769-48010×7iASU60201705-202005

71848BCAP, SEAT ADJUSTER COVER, RH

main71848-78010×2iASU60201705-202005

71849ACAP, SEAT ADJUSTER COVER, LH

main71848-78010×2iASU60201705-202005

71875CCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-48090-C0iASU60201705-202005

BLACK,TRIM2#

71875ECOVER, RECLINING ADJUSTER INSIDE, RH

main71875-48100-C0iASU60201705-202005

BLACK,TRIM2#

71875JCOVER, RECLINING ADJUSTER INSIDE, RH

main71876-48090-C0iASU60201705-202005

BLACK,TRIM2#

71876BCOVER, RECLINING ADJUSTER INSIDE, LH

main71876-48080-C0iASU60201705-202005

BLACK,TRIM2#

71877DCOVER, REAR SEAT ARMREST HOLE

main71877-48010-C0iASU60201705-202005

BLACK,TRIM2#

71880ACARPET ASSY, REAR SEATBACK BOARD, RH

main71880-48270-C0iASU60201705-201711

BLACK,TRIM2#

main71880-48271-C0iASU60201711-202005

BLACK,TRIM2#

71880BCLIP(FOR REAR SEATBACK CARPET)

main90467-08186-C3×7iASU60201705-202005

BLACK

71890ACARPET ASSY, REAR SEATBACK BOARD, LH

main71890-48240-C0iASU60201705-201711

BLACK,TRIM2#

main71890-48241-C0iASU60201711-202005

BLACK,TRIM2#

71931ASUPPORT, REAR SEAT HEADREST

main71930-47020×3iASU60201709-201710

W(LOCK)

main71930-47020-C0×3iASU60201705-201709

W(LOCK),BLACK,TRIM2#

main71930-47020-C4×3iASU60201710-202005

W(LOCK),BLACK,TRIM2#

main71931-47020×3iASU60201709-201710

W/O(LOCK)

main71931-47020-C0×3iASU60201705-201709

W/O(LOCK),BLACK,TRIM2#

main71931-47020-C4×3iASU60201710-202005

W/O(LOCK),BLACK,TRIM2#

71940BHEADREST ASSY, REAR SEAT, RH

main71940-48702-C8iASU60201705-202005

BLACK/RED,TRIM2#

71950DHEADREST ASSY, REAR SEAT, LH

main71940-48702-C8iASU60201705-202005

BLACK/RED,TRIM2#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-48442-C5iASU60201705-202005

BLACK,TRIM2#

72525JHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-48020-C0iASU60201705

BLACK,TRIM2#

72526EHANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-48050-C0iASU60201705

BLACK,TRIM2#

72622CBUSH, REAR SEATBACK PROTECTOR SHAFT

main72622-48010iASU60201705-202005

72693HOOK, REAR SEAT CUSHION LOCK

main72693-12080×2iASU60201705

72704ACABLE, REAR SEAT RECLINING CONTROL

main72704-48110iASU60201705-202005

72704BCABLE, REAR SEAT RECLINING CONTROL, NO.2

main72704-48130iASU60201705-202005

72704FCABLE, REAR SEAT RECLINING CONTROL, NO.3

main72704-48120×2iASU60201705

72806BHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

main72806-53020-C0iASU60201705-201908

BLACK,TRIM2#

main72806-53021-C0iASU60201909-202005

BLACK,TRIM2#

72810BARMREST ASSY, NO.1 SEAT

main72810-48221-C1iASU60201705-202005

BLACK,TRIM2#

main72810-48340-C0iASU60..G201705-202005

"METAL AND LEATHER PACKAGE"*(S),BLACK,TRIM2#

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-48820-C1iASU60201705-201803

BLACK,TRIM2#

main72830-48820-C2iASU60201803-201908

BLACK,TRIM2#

main72830-48821-C2iASU60201909-202005

BLACK,TRIM2#

main72830-48490-C1iASU60..G201705-201803

"METAL AND LEATHER PACKAGE"*(S),BLACK,TRIM2#

main72830-48490-C2iASU60..G201803-201908

"METAL AND LEATHER PACKAGE"*(S),BLACK,TRIM2#

main72830-48491-C2iASU60..G201909-202005

"METAL AND LEATHER PACKAGE"*(S),BLACK,TRIM2#

72831BPLATE, REAR SEAT CENTER ARMREST, NO.1

main72831-47010iASU60201705-202005

72831CPLATE, REAR SEAT CENTER ARMREST, NO.2

main72831-52010iASU60201705-202005

72868BCOVER, CENTER ARMREST HINGE

main72868-48020-C0iASU60201705-202005

BLACK,TRIM2#

72995COVER, REAR SEAT CUSHION, RH

main72996-48100-C0iASU60201705-202005

BLACK,TRIM2#

72995DCOVER, REAR SEAT CUSHION, INNER RH

main72997-48070-C0iASU60201705-202005

BLACK,TRIM2#

72996COVER, REAR SEATBACK, RH

main72996-48080-C0iASU60201705-202005

BLACK,TRIM2#

72996ACOVER, REAR SEATBACK

main72996-60160-C0iASU60201705-202005

BLACK,TRIM2#

72996BCOVER, REAR SEATBACK, INNER RH

main72997-48050-C0iASU60201705-202005

BLACK,TRIM2#

72997COVER, REAR SEATBACK, LH

main72997-48050-C0iASU60201705-202005

BLACK,TRIM2#

72997ACOVER, REAR SEATBACK, INNER LH

main72996-48080-C0iASU60201705-202005

BLACK,TRIM2#

72997BCOVER, REAR SEATBACK

main72996-60160-C0iASU60201705-202005

BLACK,TRIM2#

72998COVER, REAR SEAT CUSHION, LH

main72997-48070-C0iASU60201705-202005

BLACK,TRIM2#

72998BCOVER, REAR SEAT CUSHION, LH

main72996-48100-C0iASU60201705-202005

BLACK,TRIM2#

79110LEG ASSY, NO.1 SEAT

main79110-48060iASU60201705

79157COVER, NO.1 SEATBACK

main79157-48060-C0iASU60201705-202005

BLACK,TRIM2#

79915BRACKET, SEAT LEG

main79915-42010iASU60201705

7889928040BOLT, FRONT SEAT

main78899-28040

9010510539

main90105-10539

9017908057

main90179-08057

9046710161

main90467-10161

9418560600

main94185-60600

62 parts on this diagram · 2 diagrams in section
