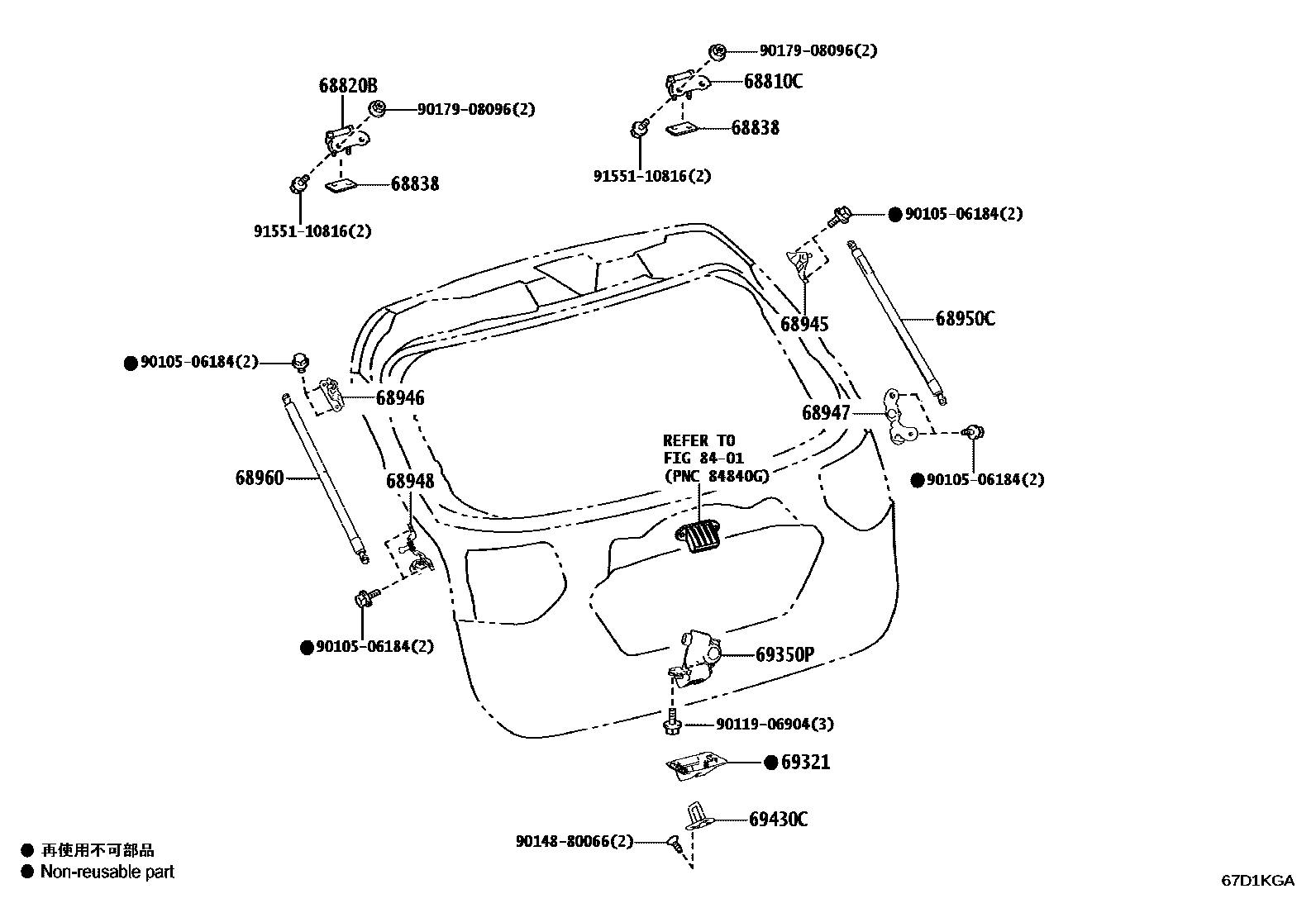

BACK DOOR LOCK & HANDLE

0001 1W/O(POWER BACK DOOR) 0002 1W(POWER BACK DOOR)

68810CHINGE ASSY, BACK DOOR, RH

main68810-48130iASU60201705-201807

main68810-48131iASU60201808-202005

68820BHINGE ASSY, BACK DOOR, LH

main68810-48130iASU60201705-201807

main68810-48131iASU60201808

68838PAD, BACK DOOR HINGE, NO.1

main68838-48110iASU60201705

T=1.0,T=1.0

main68838-48120iASU60201705

T=1.5,T=1.5

main68838-48130iASU60201705

T=2.0,T=2.0

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-48070iASU60..M201705

main68945-48080iASU60..G201705-201711

main68945-48110iASU60..G201711

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-48050iASU60..G201711

main68946-48070iASU60..M201705

main68946-48080iASU60..G201705-201711

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68903-48011iASU60..G201705-201710

main68903-48021iASU60..G201710

main68947-48060iASU60..M201705

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68904-48011iASU60..G201705-201710

main68904-48021iASU60..G201710

main68948-48060iASU60..M201705

68950CSTAY ASSY, BACK DOOR, RH

main68950-0W700iASU60..M201705-201707

main68950-0WA50iASU60..M201708

68960STAY ASSY, BACK DOOR, LH

main68960-0W700iASU60..M201705-201707

main68960-0WA50iASU60..M201708

69321COVER, BACK DOOR LOCK

main69321-48040iASU60..M201705

main69321-48050iASU60..G201705

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-48063iASU60..G201705

main69350-48081iASU60..M201705

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-48030iASU60201705

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506184

main90105-06184

9011906904

main90119-06904

9014880066

main90148-80066

9017908096

main90179-08096

9155110816

main91551-10816

18 parts on this diagram · 2 diagrams in section
