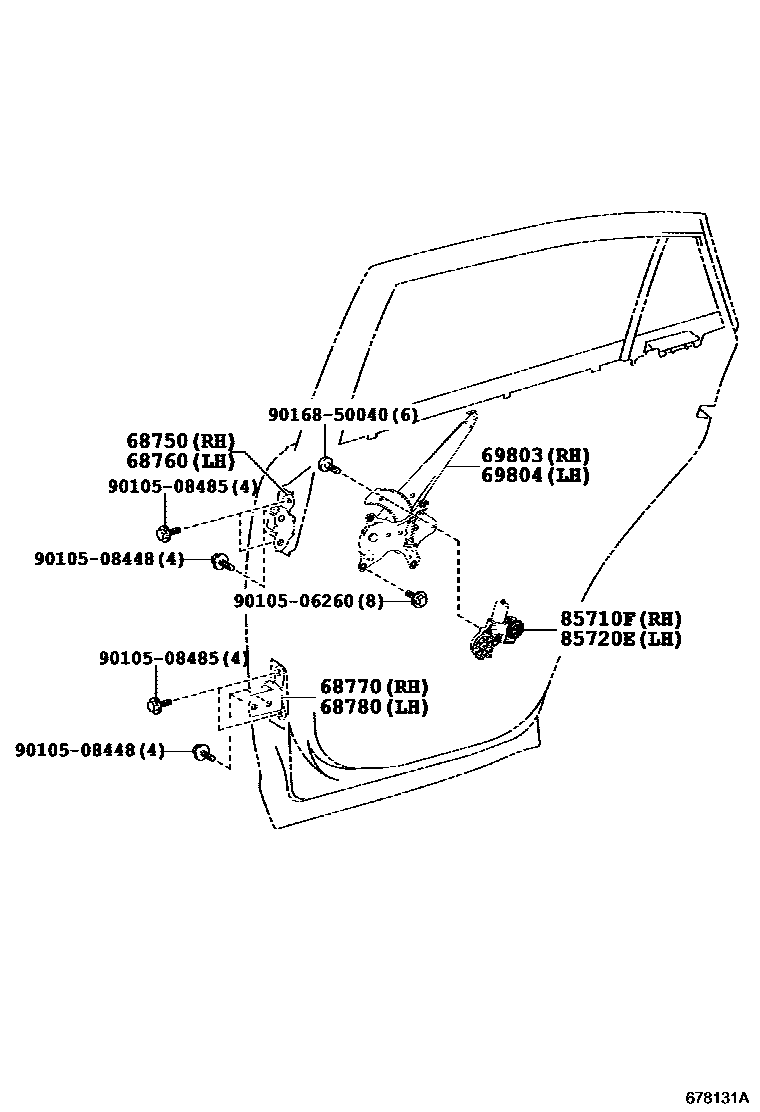

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20122iASU60201705

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20122iASU60201705

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52031iASU60201705

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52031iASU60201705

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-42050iASU60201705

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-42050iASU60201705

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-48120iASU60201705

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-48110iASU60201705

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

9016850040

main90168-50040

12 parts on this diagram · 1 diagram in section
