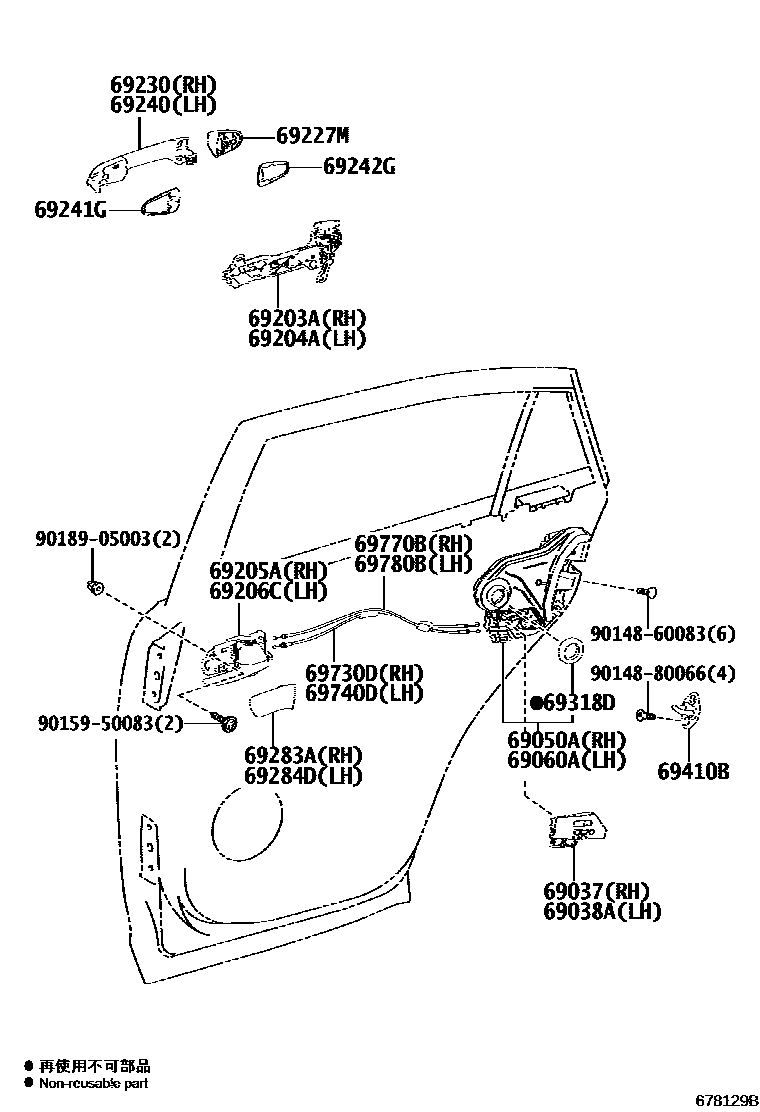

REAR DOOR LOCK & HANDLE
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM2#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM2#
69227MCOVER, REAR DOOR OUTSIDE HANDLE
*CR
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK,202
SPARKLING BLACK PEARL CS.,220
DK. RED M.M.,3Q3
DK.BLUE M.M.,8W7
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK,202
SPARKLING BLACK PEARL CS.,220
DK. RED M.M.,3Q3
DK.BLUE M.M.,8W7
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM2#
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM2#
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
9014860083
main90148-60083
9014880066
main90148-80066
9015950083
main90159-50083
9018905003
main90189-05003
25 parts on this diagram · 1 diagram in section
