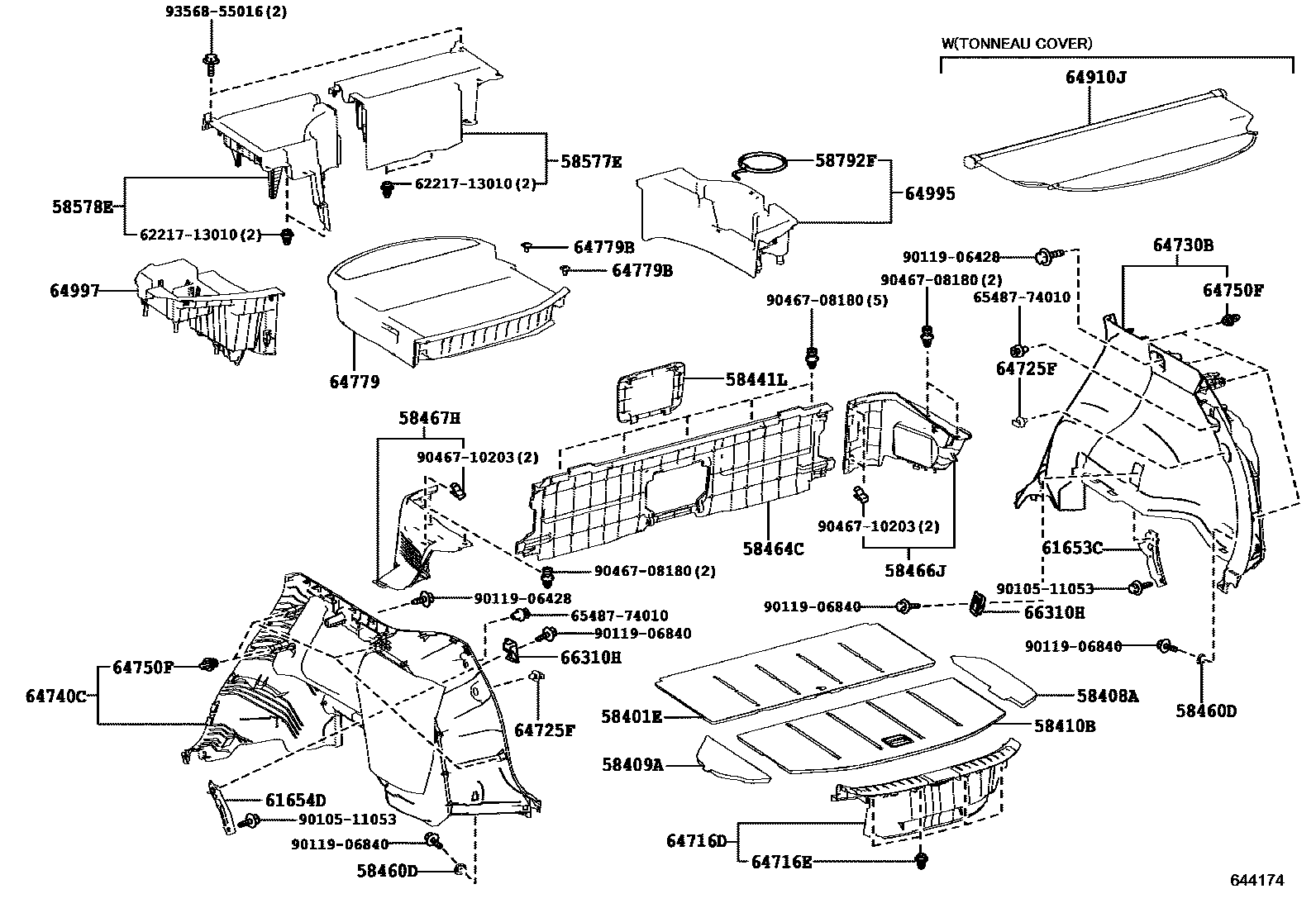

DECK BOARD & DECK TRIM COVER
58401EBOARD SUB-ASSY, DECK
58408ABOARD SUB-ASSY, DECK, NO.2
BLACK,TRIM2#
58409ABOARD SUB-ASSY, DECK, NO.3
BLACK,TRIM2#
58410BBOARD ASSY, DECK
BLACK,TRIM2#
58441LCOVER, BATTERY SERVICE HOLE
BLACK,TRIM2#
58460DSTRIKER ASSY, LUGGAGE HOLD BELT
58464CBOARD, BATTERY SERVICE COVER, NO.1
BLACK,TRIM2#
58466JBOARD, BATTERY SERVICE COVER, NO.2
BLACK,TRIM2#
58467HBOARD, BATTERY SERVICE COVER, NO.3
BLACK,TRIM2#
58577EPLATE, REAR FLOOR MAT SUPPORT SIDE, NO.1
58578EPLATE, REAR FLOOR MAT SUPPORT SIDE, LH
58792FSUPPORT, JACK CARRIER
61653CBRACKET, DECK SIDE TRIM, RH
61654DBRACKET, DECK SIDE TRIM, NO.2
64716DCOVER, DECK TRIM, REAR
BLACK,TRIM2#
64716ECLIP(FOR DECK TRIM REAR COVER)
64725FHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64730BPANEL ASSY, DECK TRIM SIDE, RH
BLACK,TRIM2#
64740CPANEL ASSY, DECK TRIM SIDE, LH
BLACK,TRIM2#
64750FCLIP(FOR DECK SIDE TRIM PANEL)
64779TRAY, SPARE WHEEL COVER
64779BSTOPPER, SPARE WHEEL COVER
64910JCOVER ASSY, TONNEAU
64995BOX, DECK FLOOR, RH
64997BOX, DECK FLOOR, LH
66310HHOOK ASSY, ROPE
6221713010COVER, RAIL ROOF SIDE, INNER CENTER
main62217-13010
6548774010CLIP, CORNER PROTECTOR
main65487-74010
9010511053
main90105-11053
9011906428
main90119-06428
9011906840
main90119-06840
9046708180
main90467-08180
9046710203
main90467-10203
9356855016
main93568-55016
34 parts on this diagram · 1 diagram in section
