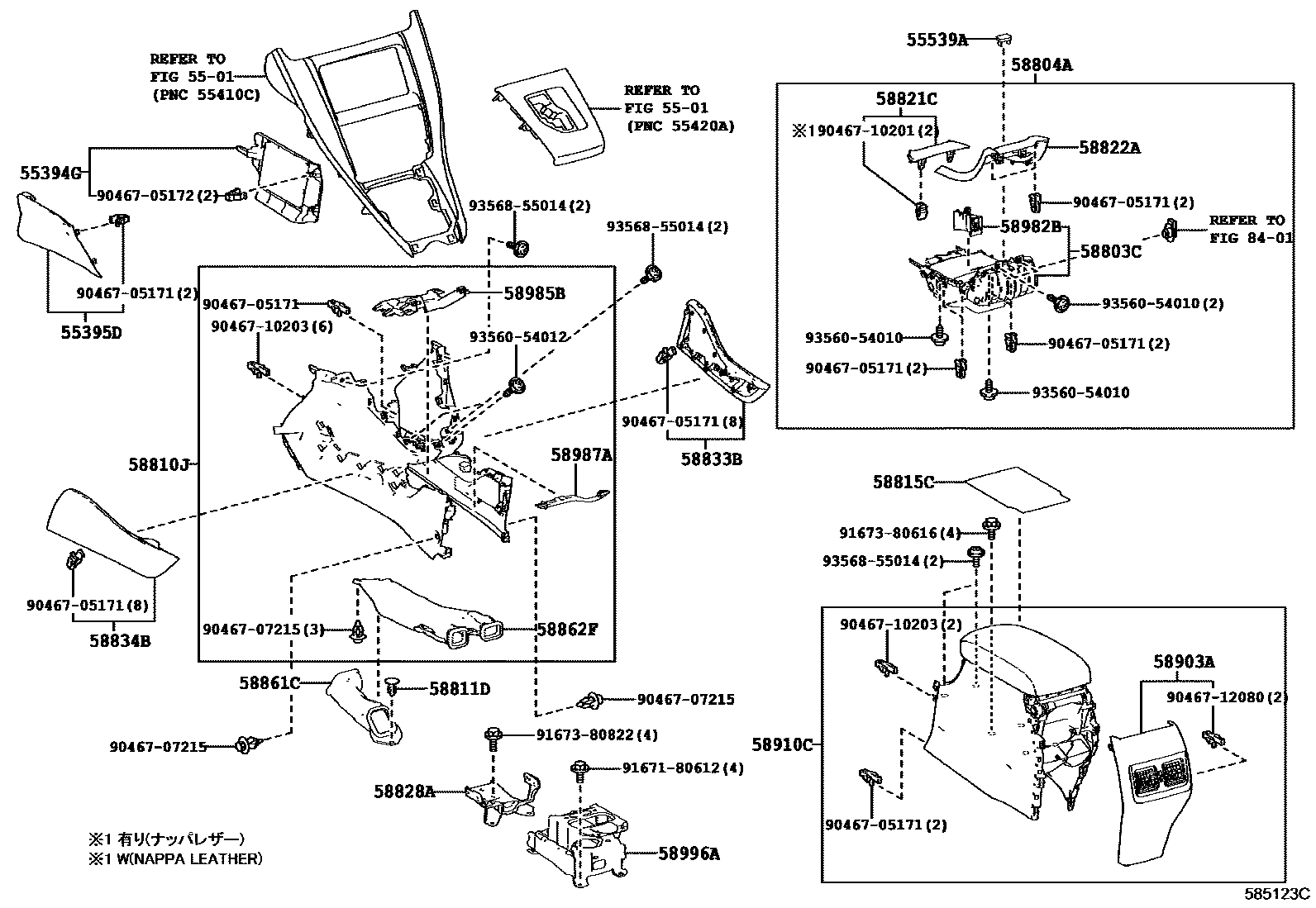

CONSOLE BOX & BRACKET
5501
55394GCOVER, INSTRUMENT PANEL BRACE, INNER NO.1 RH
BLACK,TRIM2#
55395DCOVER, INSTRUMENT PANEL BRACE, INNER NO.1 LH
BLACK,TRIM2#
55539ACOVER, SPARE SWITCH HOLE
58804APANEL SUB-ASSY, CONSOLE, UPPER
BLACK,TRIM2#
58810JBOX ASSY, CONSOLE
BLACK,TRIM2#
58811DCLIP(FOR CONSOLE BOX)
58815CCARPET, CONSOLE BOX
58821CPANEL, CONSOLE, UPPER
58822APANEL, CONSOLE, UPPER REAR
BLACK,TRIM2#
58828ABRACKET, CONSOLE BOX, LOWER
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
BLACK/RED,TRIM2#
58834BGARNISH, CONSOLE UPPER PANEL, NO.2
BLACK/RED,TRIM2#
58861CDUCT, CONSOLE BOX, NO.1
58862FDUCT, CONSOLE BOX, NO.2
58903APANEL SUB-ASSY, CONSOLE REAR END
BLACK,TRIM2#
58910CBOX ASSY, CONSOLE, REAR
BLACK/RED,TRIM2#
58982BRETAINER, CONSOLE BOX, NO.3
58985BRETAINER, CONSOLE BOX, NO.1
58987ARETAINER, CONSOLE BOX, NO.2
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
8401
9046705171
main90467-05171
9046705172
main90467-05172
9046707215
main90467-07215
9046710201
main90467-10201
9046710203
main90467-10203
9046712080
main90467-12080
9167180612
main91671-80612
9167380616
main91673-80616
9167380822
main91673-80822
9356054010
main93560-54010
9356054012
main93560-54012
9356855014
main93568-55014
35 parts on this diagram · 2 diagrams in section
