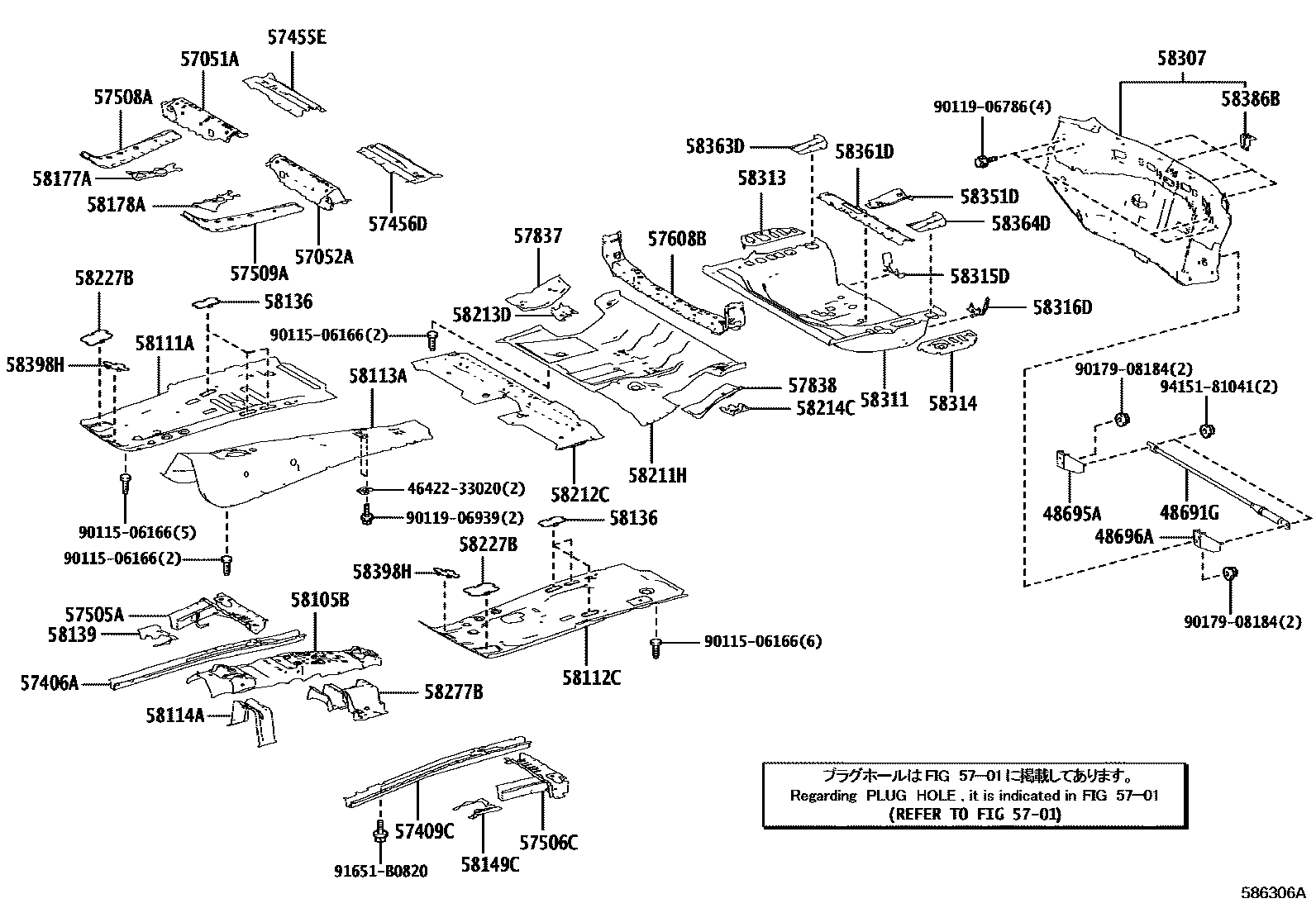

FLOOR PAN & LOWER BACK PANEL
48691GDAMPER, SUSPENSION TOWER
48695ABRACKET, TOWER BAR, RH
48696ABRACKET, TOWER BAR, LH
5701
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57406AMEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57409CMEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57455EPLATE, FRONT FLOOR CROSSMEMBER, NO.3 RH
57456DPLATE, FRONT FLOOR CROSSMEMBER, NO.3 LH
57505AREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER
57506CREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER, LH
57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
57608BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4
57837REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.3
57838REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.4
58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58114AREINFORCEMENT, FRONT FLOOR PANEL
58136COVER, FRONT FLOOR HOLE
58139COVER, FRONT FLOOR SIDE, REAR
58149CPLATE, FRONT FLOOR SIDE, REAR LH
58177AEXTENSION, FRONT FLOOR PANEL, RH
58178AEXTENSION, FRONT FLOOR PANEL, LH
58211HPAN, CENTER FLOOR
58212CPAN, CENTER FLOOR, FRONT
58213DREINFORCEMENT, CENTER FLOOR PANEL
58214CREINFORCEMENT, CENTER FLOOR PANEL, LH
58227BPLATE, FRONT FLOOR PANEL SIDE, RH
58277BREINFORCEMENT, DRIVE SHAFT CENTER SUPPORT
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58315DEXTENSION, REAR FLOOR PAN, RH
58316DEXTENSION, REAR FLOOR PAN, LH
58351DREINFORCEMENT, REAR FLOOR PANEL
58361DREINFORCEMENT, REAR FLOOR PANEL, NO.1 RH
58363DREINFORCEMENT, REAR FLOOR PANEL, NO.2 RH
58364DREINFORCEMENT, REAR FLOOR PANEL, NO.2 LH
58386BBRACKET, REAR BUMPER COVER, NO.2
58398HCOVER, FLOOR UNDER, NO.1
4642233020CAP, PARKING BRAKE CABLE, CASING
main46422-33020
9011506166
main90115-06166
9011906786
main90119-06786
9011906939
main90119-06939
9017908184
main90179-08184
91651B0820
main91651-B0820
9415181041
main94151-81041
52 parts on this diagram · 1 diagram in section
