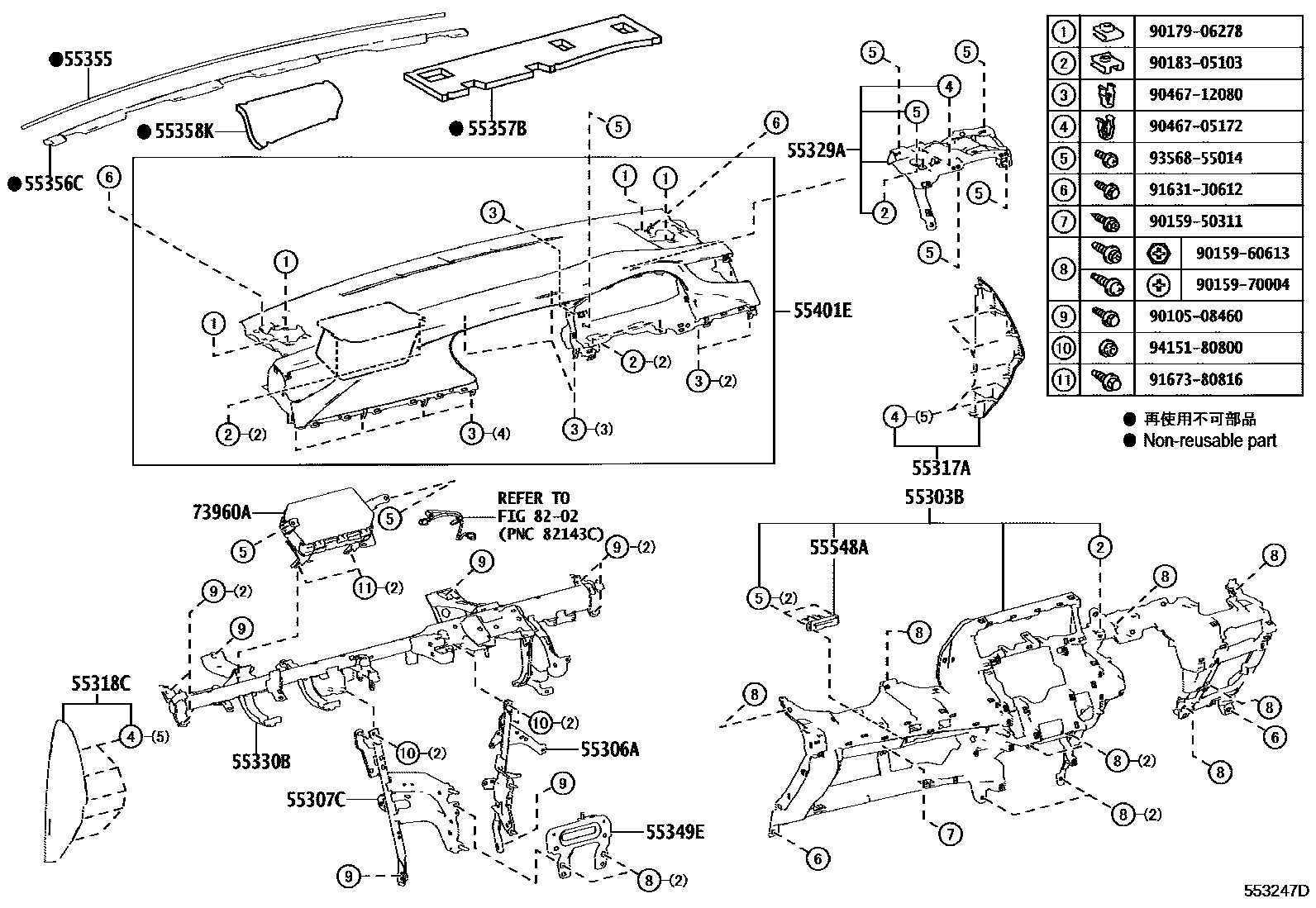

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-48171-C0iASU60201705-201810

BLACK,TRIM2#

main55303-48171-C1iASU60201810

BLACK,TRIM2#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-48150iASU60201705

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-48150iASU60201705

55317APANEL, INSTRUMENT SIDE, RH

main55317-48150-C0iASU60201705

BLACK,TRIM2#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-48120-C0iASU60201705

BLACK,TRIM2#

55329ABRACKET, INSTRUMENT PANEL METER

main55329-48100iASU60201705

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-48210iASU60201705

55349EBRACKET, INSTRUMENT PANEL BRACE MOUNTING, LOWER

main55349-48020iASU60201705

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-42030iASU60201705

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-48060iASU60201705

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-48140iASU60201705

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-48090iASU60201705

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-48150-20iASU60201901

BLACK/RED,TRIM2#

main55401-48150-C2iASU60201705-201901

BLACK/RED,TRIM2#

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-52030-C0iASU60201705-201810

BLACK,TRIM2#

main55548-52030-C2iASU60201810

BLACK,TRIM2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-48080iASU60201705

8202WIRING & CLAMP

→ Go to FIG 82-02

9010508460

main90105-08460

9015950311

main90159-50311

9015960613

main90159-60613

9015970004

main90159-70004

9017906278

main90179-06278

9018305103

main90183-05103

9046705172

main90467-05172

9046712080

main90467-12080

91631J0612

main91631-J0612

9167380816

main91673-80816

9356855014

main93568-55014

9415180800

main94151-80800

28 parts on this diagram · 4 diagrams in section
