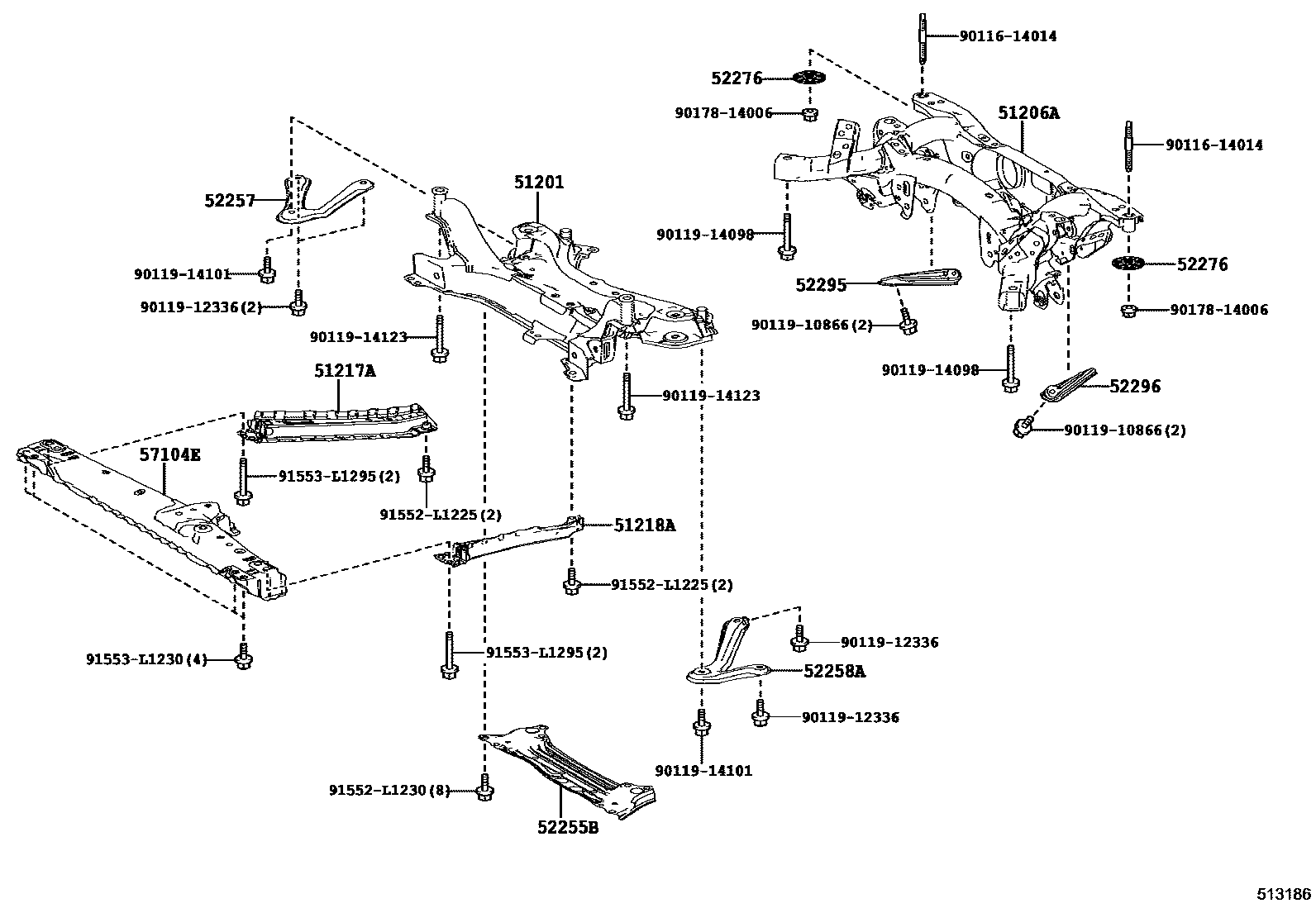

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION MEMBER 0002 1UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12442iASU60201705

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-78010iASU60201705

51217AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51107-42020iASU60201705-202005

51218AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51108-42020iASU60201705

52255BBRACE, FRONT SUSPENSION MEMBER

main52255-76010iASU60201705

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-42010iASU60201705

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-42010iASU60201705

52276CUSHION, REAR SUSPENSION MEMBER, REAR LOWER

main52203-42020iASU60201705

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-42010iASU60201705

52296BRACE, REAR SUSPENSION MEMBER, LH

main52296-42010iASU60201705

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-42070iASU60201705

9011614014

main90116-14014

9011910866

main90119-10866

9011912336

main90119-12336

9011914098

main90119-14098

9011914101

main90119-14101

9011914123

main90119-14123

9017814006

main90178-14006

91552L1225

main91552-L1225

91552L1230

main91552-L1230

91553L1230

main91553-L1230

91553L1295

main91553-L1295

22 parts on this diagram · 2 diagrams in section
