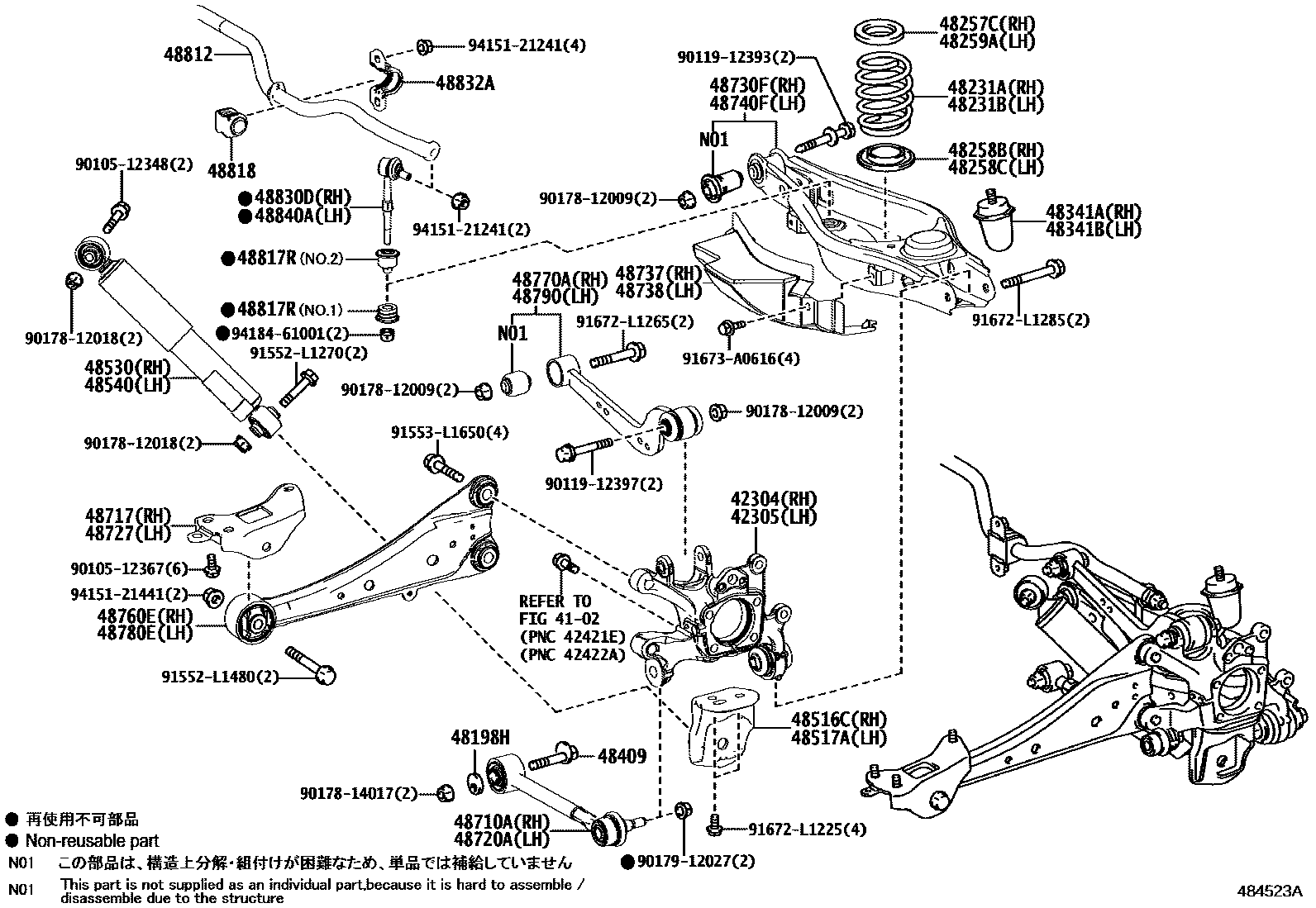

REAR SPRING & SHOCK ABSORBER

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-42020iASU60201705

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-42020iASU60201705

48198HCAM, CAMBER ADJUST, NO.2

main48198-42010×2iASU60201705-202005

48231ASPRING, COIL, REAR RH

main48231-42330iASU60201705

48231BSPRING, COIL, REAR LH

main48231-42330iASU60201705

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-42030iASU60201705

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-12050iASU60201705

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-12050iASU60201705

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-42030iASU60201705

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-42010iASU60201705

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-42010iASU60201705

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-42030×2iASU60201705-202005

48516CBRACKET, REAR SHOCK ABSORBER, NO.1 RH

main48505-42010iASU60201705

48517ABRACKET, REAR SHOCK ABSORBER, NO.1 LH

main48506-42010iASU60201705

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-48390iASU60201705

MARK 48531-48390

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-48390iASU60201705

MARK 48531-48390

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-42030iASU60201705-202005

48717BRACKET, REAR SUSPENSION ARM, RH

main48717-42010iASU60201705

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-42030iASU60201705-202005

48727BRACKET, REAR SUSPENSION ARM, LH

main48727-42010iASU60201705

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-42040iASU60201705-201905

W(PNC 48737)

main48730-42050iASU60201905-202005

W/O(PNC 48737)

48737COVER, REAR SUSPENSION ARM, RH

main48737-42021iASU60201705-201905

48738COVER, REAR SUSPENSION ARM, LH

main48738-42021iASU60201705-201905

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48740-42010iASU60201705-201905

W(PNC 48738)

main48740-42020iASU60201905-202005

W/O(PNC 48738)

48760EARM ASSY, TRAILING, REAR RH

main48760-48110iASU60201705

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-42040iASU60201705

48780EARM ASSY, TRAILING, REAR LH

main48780-48110iASU60201705

48790ARM ASSY, UPPER CONTROL, REAR LH

main48790-42020iASU60201705

48812BAR, STABILIZER, REAR

main48812-42040iASU60201705

48817RCUSHION, STABILIZER(FOR REAR)

main48817-48010×2iASU60201705

NO.2

main48817-48020×2iASU60201705

NO.1

48818BUSH, STABILIZER, REAR

main48818-42020×2iASU60201705

48830DLINK ASSY, REAR STABILIZER, RH

main48830-42022iASU60201705

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-42010×2iASU60201705

48840ALINK ASSY, REAR STABILIZER, LH

main48830-42022iASU60201705

9010512348

main90105-12348

9010512367

main90105-12367

9011912393

main90119-12393

9011912397

main90119-12397

9017812009

main90178-12009

9017812018

main90178-12018

9017814017

main90178-14017

9017912027

main90179-12027

91552L1270

main91552-L1270

91552L1480

main91552-L1480

91553L1650

main91553-L1650

91672L1225

main91672-L1225

91672L1265

main91672-L1265

91672L1285

main91672-L1285

91673A0616

main91673-A0616

9415121241

main94151-21241

9415121441

main94151-21441

9418461001

main94184-61001

53 parts on this diagram · 1 diagram in section
