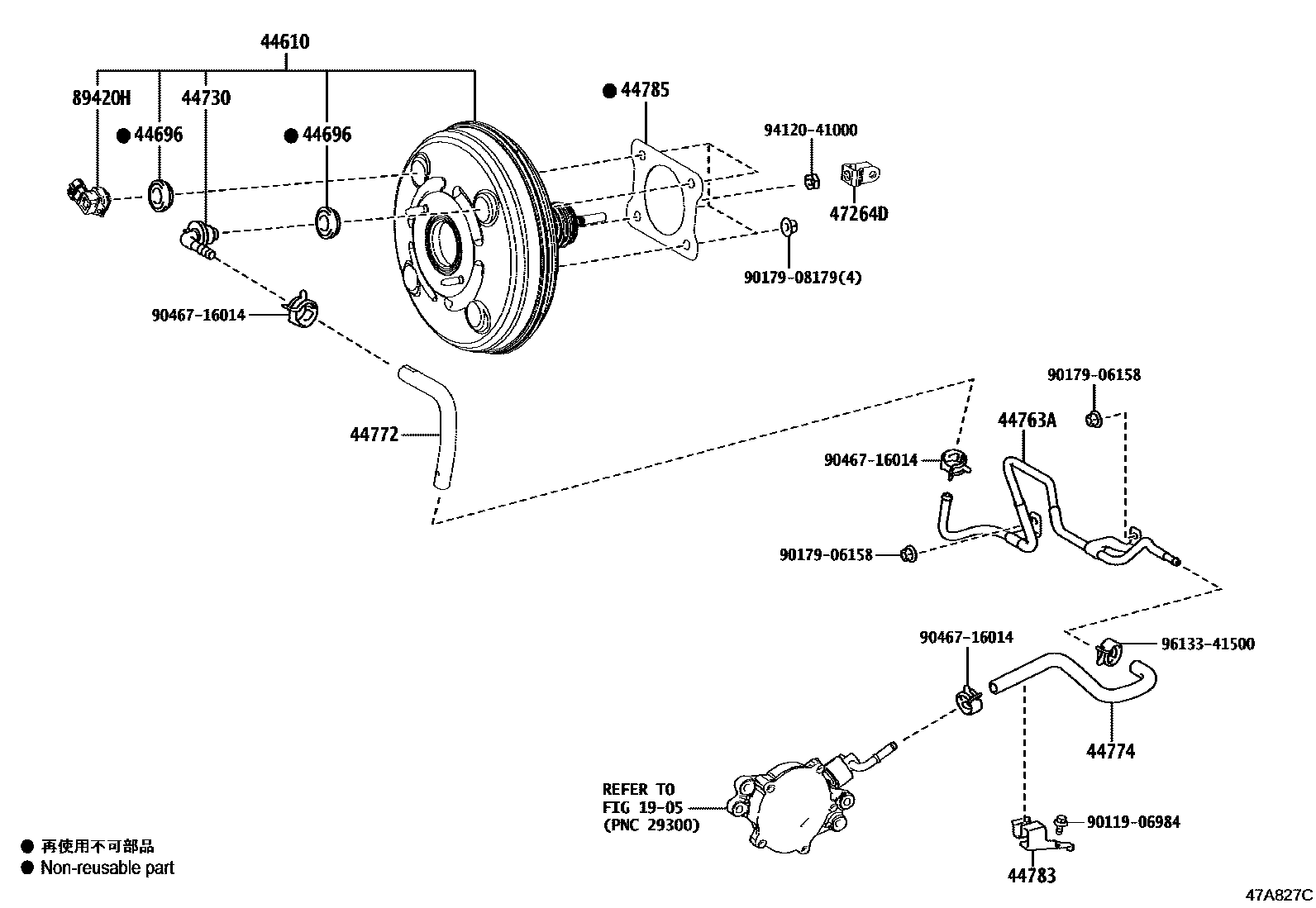

BRAKE BOOSTER & VACUUM TUBE

1905VACUUM PUMP

→ Go to FIG 19-05

44610BOOSTER ASSY, BRAKE

main44610-48520iASU60201705

44696GROMMET, CHECK VALVE

main90480-24439×2iASU60201705

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iASU60201705

44763ATUBE, HOSE TO HOSE, NO.1

main44763-78010iASU60201705

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-42080iASU60201705

44774HOSE, UNION TO CONNECTOR TUBE

main44774-78010iASU60201705

44783CLAMP, VACUUM HOSE

main44783-78010iASU60201705

44785GASKET, BRAKE BOOSTER

main44785-12040iASU60201705

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-63010iASU60201705

89420HSENSOR ASSY, VACUUM

main89421-52020iASU60201705

9011906984

main90119-06984

9017906158

main90179-06158

9017908179

main90179-08179

9046716014

main90467-16014

9412041000

main94120-41000

9613341500

main96133-41500

17 parts on this diagram · 1 diagram in section
