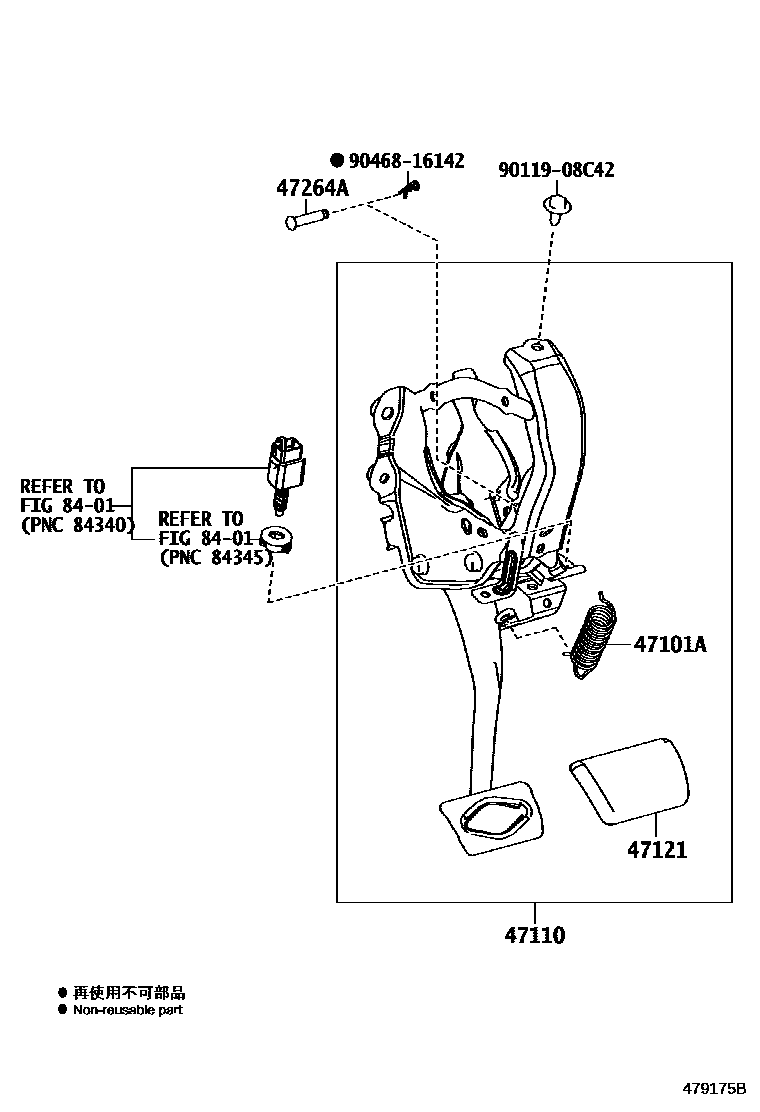

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main47146-78010iASU60201705

47110SUPPORT ASSY, BRAKE PEDAL

main47110-42210iASU60201705

47121PAD, BRAKE PEDAL

main47121-42020iASU60201705

47264APIN(FOR PUSH ROD)

main90249-08256iASU60201705

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908C42

main90119-08C42

9046816142

main90468-16142

7 parts on this diagram · 1 diagram in section
