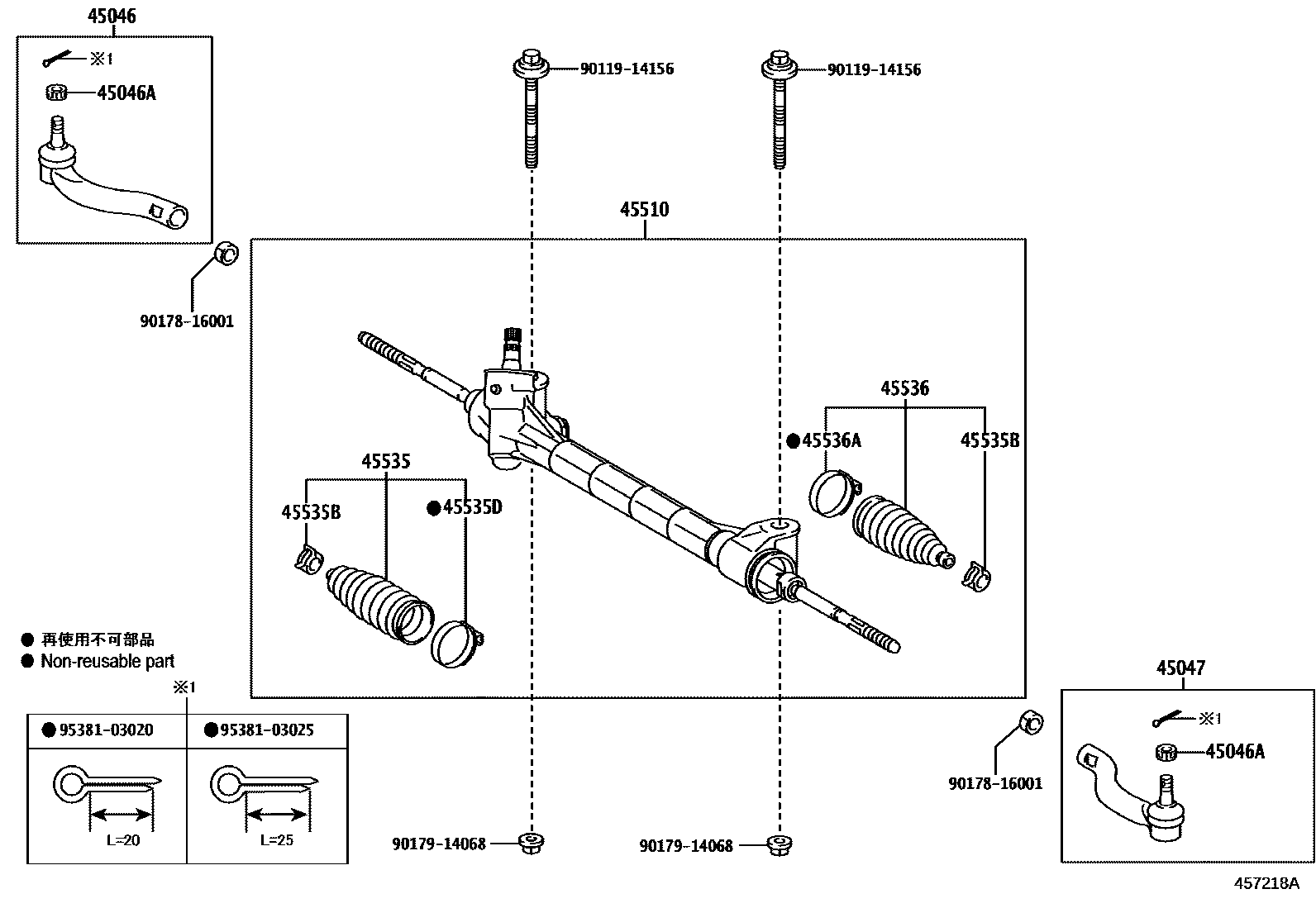

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-49195iASU60201705

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iASU60201705

45047END SUB-ASSY, TIE ROD, LH

main45047-49135iASU60201705

45510GEAR ASSY, STEERING

main45510-42150iASU60201705-201803

main45510-42151iASU60201804

45535BOOT, STEERING RACK, NO.1

main45535-49045iASU60201705

45535BCLIP(FOR STEERING RACK BOOT)

main45537-42020×2iASU60201705

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-42010iASU60201705

45536BOOT, STEERING RACK, NO.2

main45535-49045iASU60201705

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-42010iASU60201705

9011914156

main90119-14156

9017816001

main90178-16001

9017914068

main90179-14068

9538103020

main95381-03020

9538103025

main95381-03025

14 parts on this diagram · 1 diagram in section
