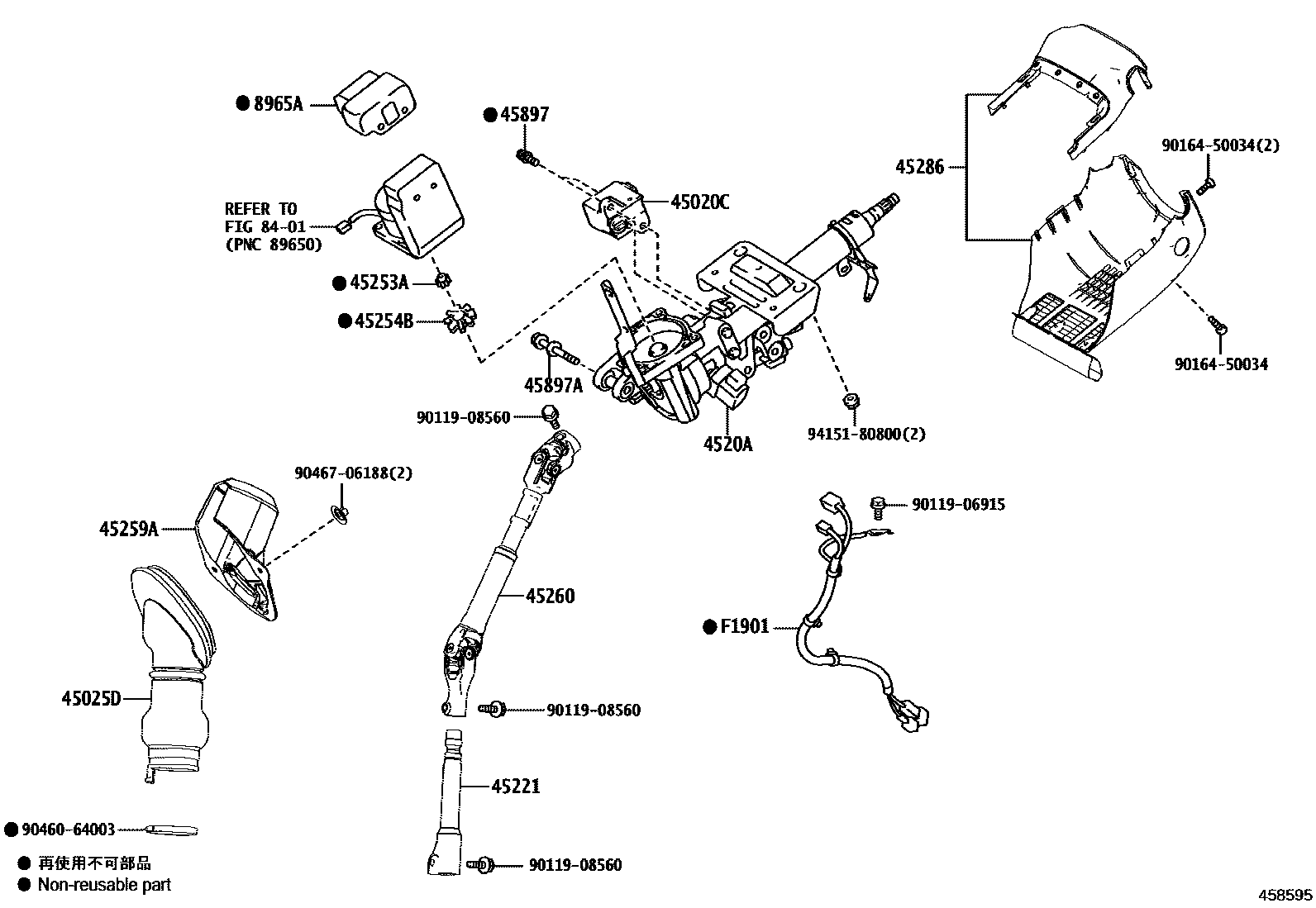

STEERING COLUMN & SHAFT

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-48090iASU60201705-202005

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-42070iASU60201705

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-48020iASU60201705-202005

45221SHAFT, STEERING INTERMEDIATE

main45221-42090iASU60201705

45253ASPACER, ELECTRIC POWER STEERING MOTOR SHAFT

main45253-33110iASU60201705

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iASU60201705

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-42010iASU60201705

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-42100iASU60201705-202005

45286COVER, STEERING COLUMN

main45286-48915-C0iASU60201705

BLACK,TRIM2#

45897BOLT, STEERING LOCK SET

main45897-12020×2iASU60201705-202005

45897ABOLT, TILT STEERING PAWL SET

main90119-10981iASU60201705

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8965APROTECTOR, POWER STEERING COMPUTER

main8965A-33011iASU60201705

F1901WIRE SUB-ASSY, COMPUTER

mainF190148080iASU60201705

9011906915

main90119-06915

9011908560

main90119-08560

9016450034

main90164-50034

9046064003

main90460-64003

9046706188

main90467-06188

9415180800

main94151-80800

20 parts on this diagram · 1 diagram in section
