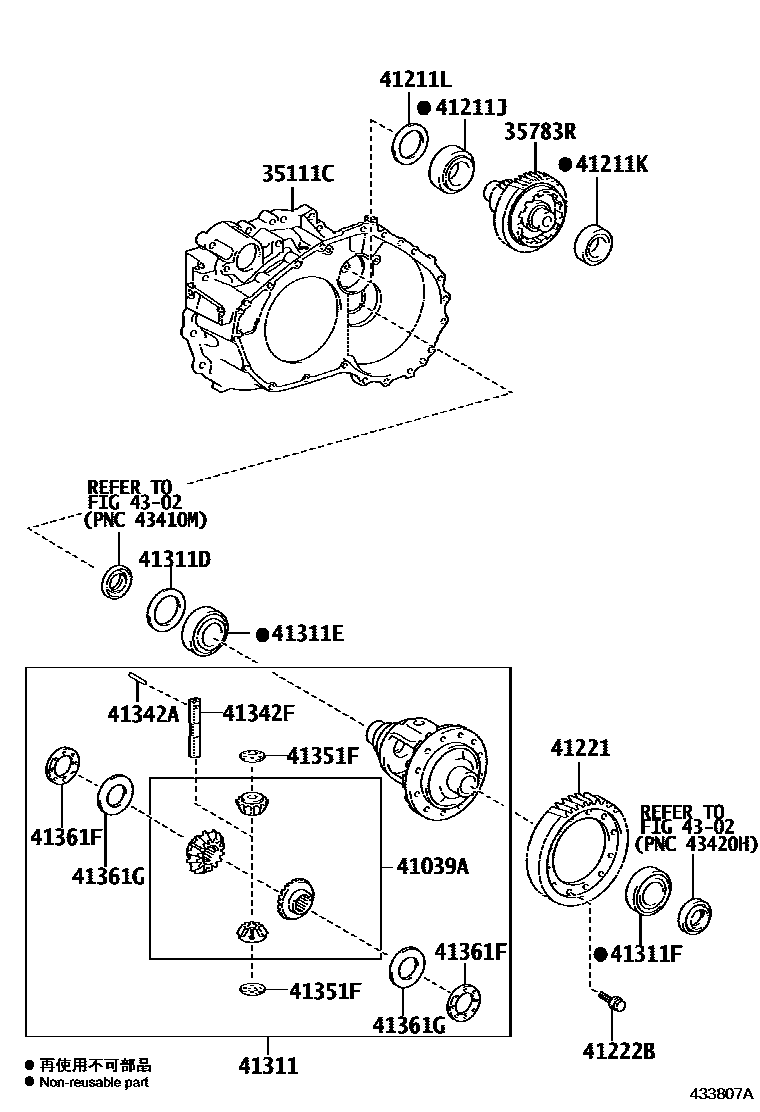

FRONT AXLE HOUSING & DIFFERENTIAL
35111CHOUSING, TRANSAXLE
35783RGEAR, COUNTER DRIVEN
41039AGEAR KIT, DIFFERENTIAL
41211JBEARING, TAPERED ROLLER (FOR DIFFERENTIAL DRIVE PINION RH)
41211KBEARING, TAPERED ROLLER (FOR DIFFERENTIAL DRIVE PINION LH)
41211LSHIM (FOR DIFFERENTIAL DRIVE PINION)
T=2.000
T=2.025
T=2.050
T=2.075
T=2.100
T=2.125
T=2.150
T=2.175
T=2.200
T=2.225
T=2.250
T=2.275
T=2.300
T=2.325
T=2.350
T=2.375
T=2.400
T=2.425
T=2.450
T=2.475
T=2.500
T=2.525
T=2.550
T=2.575
T=2.600
T=2.625
T=2.650
T=2.675
T=2.700
T=2.725
T=2.750
T=2.775
T=2.800
T=2.825
T=2.850
T=2.875
T=2.900
T=2.925
T=2.950
T=2.975
T=3.000
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41311CASE, FRONT DIFFERENTIAL
41311DSHIM (FOR FRONT DIFFERENTIAL CASE FRONT)
T=2.000
T=2.025
T=2.050
T=2.075
T=2.100
T=2.125
T=2.150
T=2.175
T=2.200
T=2.225
T=2.250
T=2.275
T=2.300
T=2.325
T=2.350
T=2.375
T=2.400
T=2.425
T=2.450
T=2.475
T=2.500
T=2.525
T=2.550
T=2.575
T=2.600
T=2.625
T=2.650
T=2.675
T=2.700
T=2.725
T=2.750
T=2.775
T=2.800
T=2.825
T=2.850
T=2.875
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
41361GWASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEAR)
4302
18 parts on this diagram · 1 diagram in section
