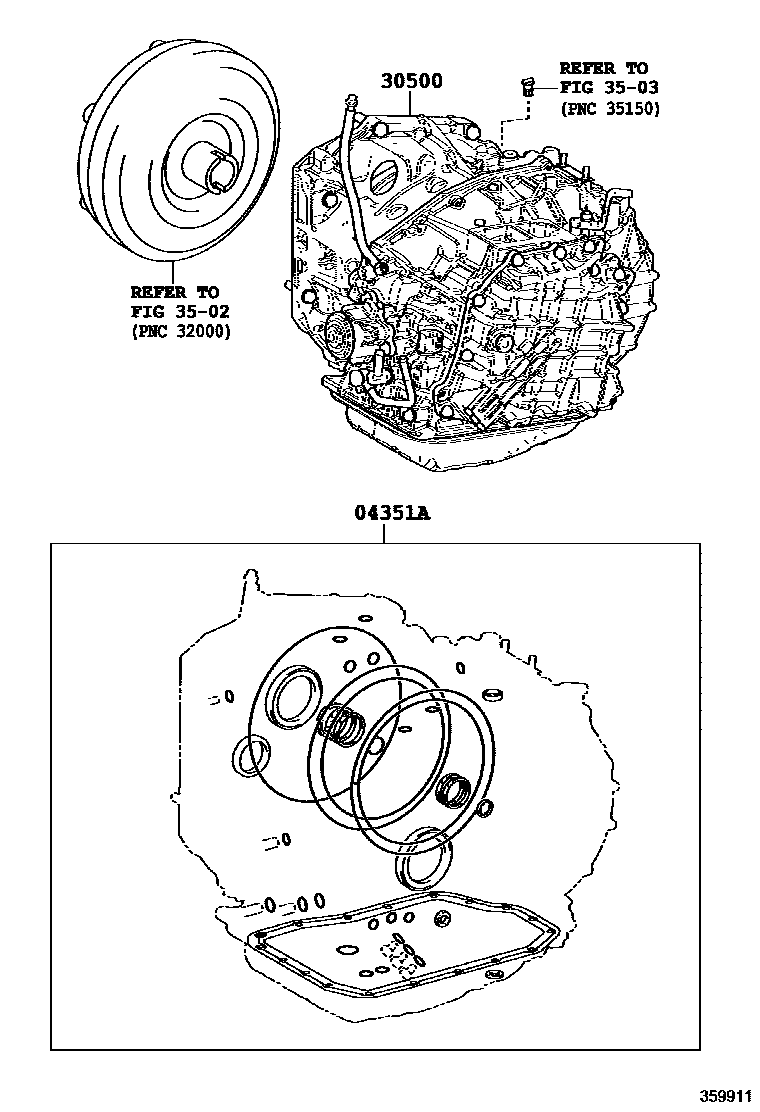

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-48242iASU60201811

main04351-78010iASU60201705-201811

30500TRANSAXLE ASSY, AUTOMATIC

main30500-78010iASU60201705

U661E

3502TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

→ Go to FIG 35-02

3503TRANSMISSION CASE & OIL PAN (ATM)

→ Go to FIG 35-03

4 parts on this diagram · 1 diagram in section
