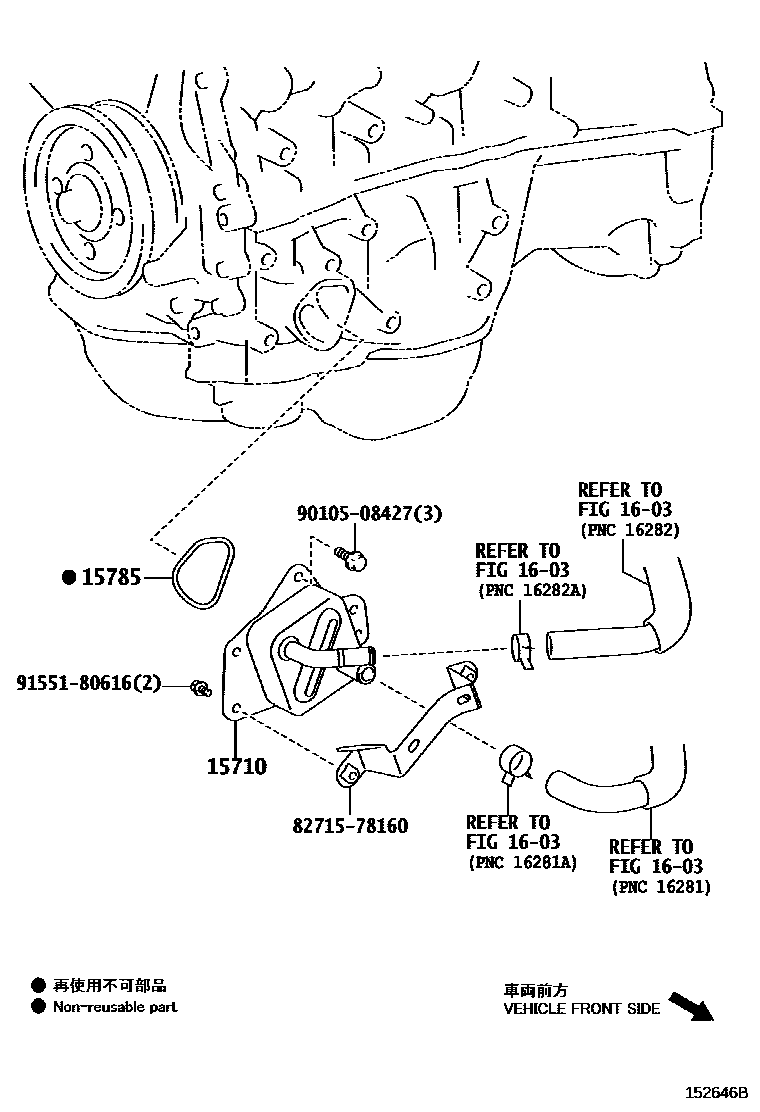

ENGINE OIL COOLER

15710COOLER ASSY, OIL

main15710-36031i8ARFTS..ASU60201705

15785GASKET, OIL COOLER

main15785-36021i8ARFTS..ASU60201705

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8271578160BRACKET,WIRING HARNESS CLAMP

main82715-78160

9010508427

main90105-08427

9155180616

main91551-80616

6 parts on this diagram · 1 diagram in section
