Toyota 311240 — VENTILATION HOSE

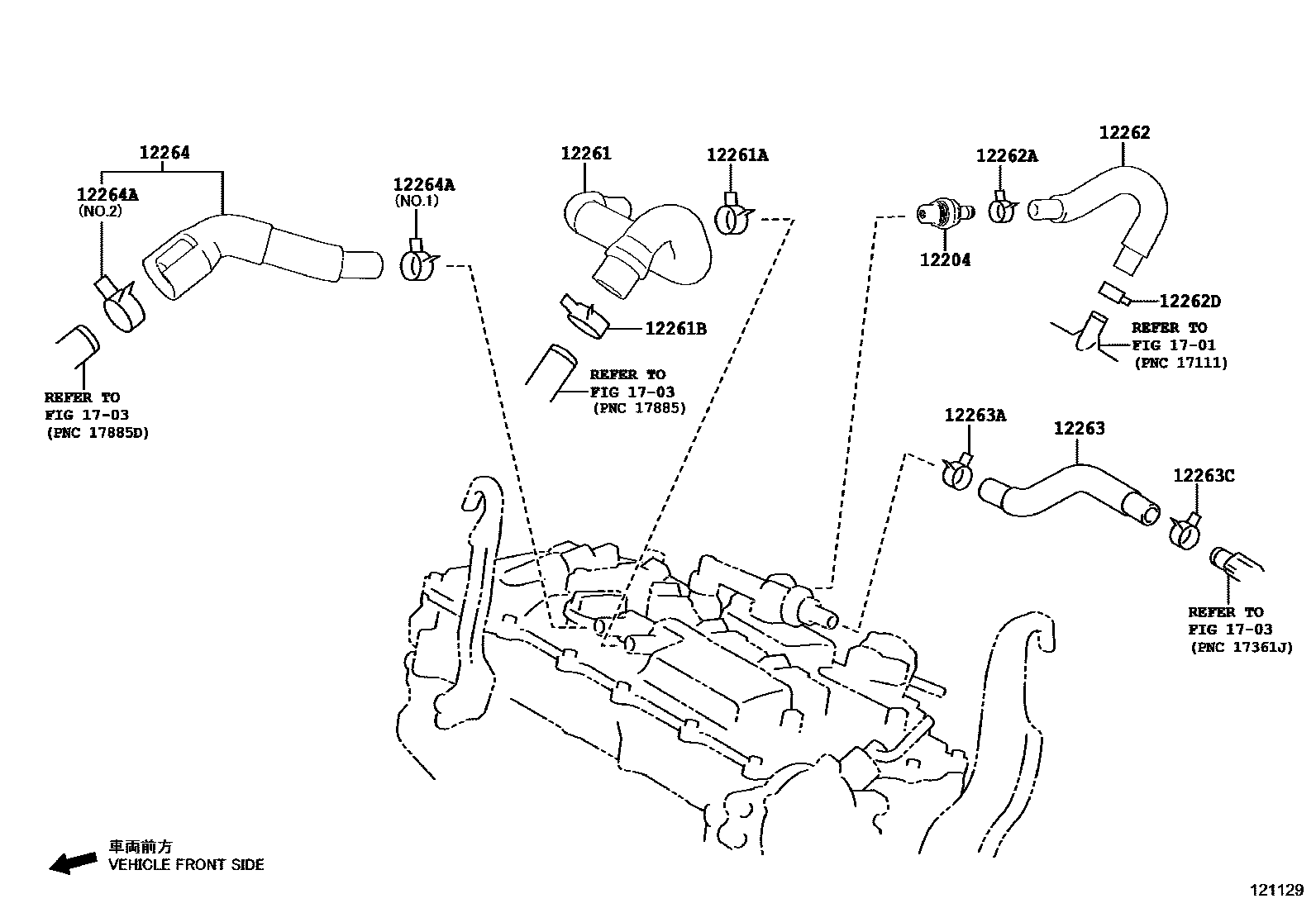

Parts diagram

12204VALVE SUB-ASSY, VENTILATION

12261HOSE, VENTILATION

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

12261BCLIP OR CLAMP(FOR VENTILATION HOSE)

12262HOSE, VENTILATION, NO.2

12262ACLIP(FOR VENTILATION HOSE NO.2)

12262DCLIP(FOR VENTILATION HOSE NO.2)

12263HOSE, VENTILATION, NO.3

12263ACLIP(FOR VENTILATION HOSE)

12263CCLIP(FOR VENTILATION HOSE)

12264HOSE, VENTILATION, NO.4

12264ACLIP(FOR VENTILATION HOSE)

1701MANIFOLD

→ Go to FIG 17-01

1703AIR CLEANER

→ Go to FIG 17-03

14 parts on this diagram · 1 diagram in section

VENTILATION HOSE for Toyota 311240

This section contains 14 genuine Toyota parts for the VENTILATION HOSE system of the Toyota 311240. Key components include: VALVE SUB-ASSY, VENTILATION, HOSE, VENTILATION, CLIP OR CLAMP(FOR VENTILATION HOSE), HOSE, VENTILATION, NO.2.
