Toyota LEXUS RX SERIES — MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
8606CAMERA & REAR MONITOR DISPLAY
87810MIRROR ASSY, INNER REAR VIEW
87908ACTUATOR ASSY, OUTER MIRROR, RH
87909ACTUATOR ASSY, OUTER MIRROR, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
87917CSCREW, OUTER MIRROR
87917HSCREW, OUTER MIRROR, NO.2
87917JSCREW, OUTER MIRROR, NO.3
8791BACOVER, OUTER MIRROR, RH NO.3
87939ACOVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
87946RETRACTOR, OUTER MIRROR, RH
87948ACOVER, OUTER MIRROR HOLE, LH
8794BACOVER, OUTER MIRROR, LH NO.3
87966RETRACTOR, OUTER MIRROR, LH
9017906274

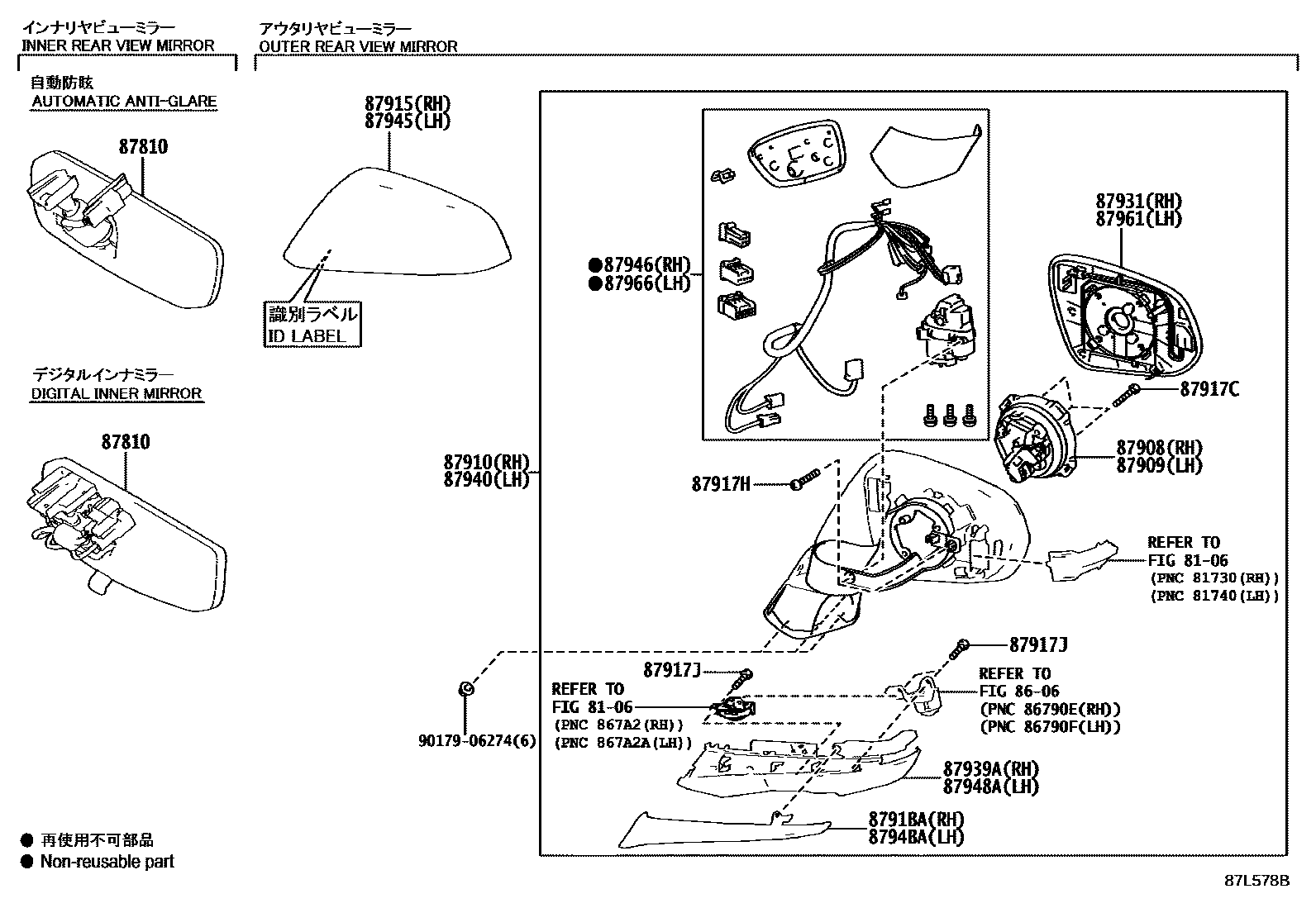

21 parts on this diagram · 1 diagram in section
MIRROR for Toyota LEXUS RX SERIES
This section contains 21 genuine Toyota parts for the MIRROR system of the Toyota LEXUS RX SERIES. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, CAMERA & REAR MONITOR DISPLAY, MIRROR ASSY, INNER REAR VIEW, ACTUATOR ASSY, OUTER MIRROR, RH, ACTUATOR ASSY, OUTER MIRROR, LH.
