Toyota LEXUS RX SERIES — AIR BAG

89170ACOMPUTER ASSY, AIRBAG

89173ASENSOR, AIRBAG, FRONT RH

89174ASENSOR, AIRBAG, FRONT LH

89831DSENSOR, FLOOR SIDE AIRBAG, RH

89831ESENSOR, FLOOR SIDE AIRBAG, LH

8983ASENSOR, SIDE AIRBAG PRESSURE, RH

8983A-52020

8983AASENSOR, SIDE AIRBAG PRESSURE, LH

9011908D76

90119-08D76

91553A0620

91553-A0620

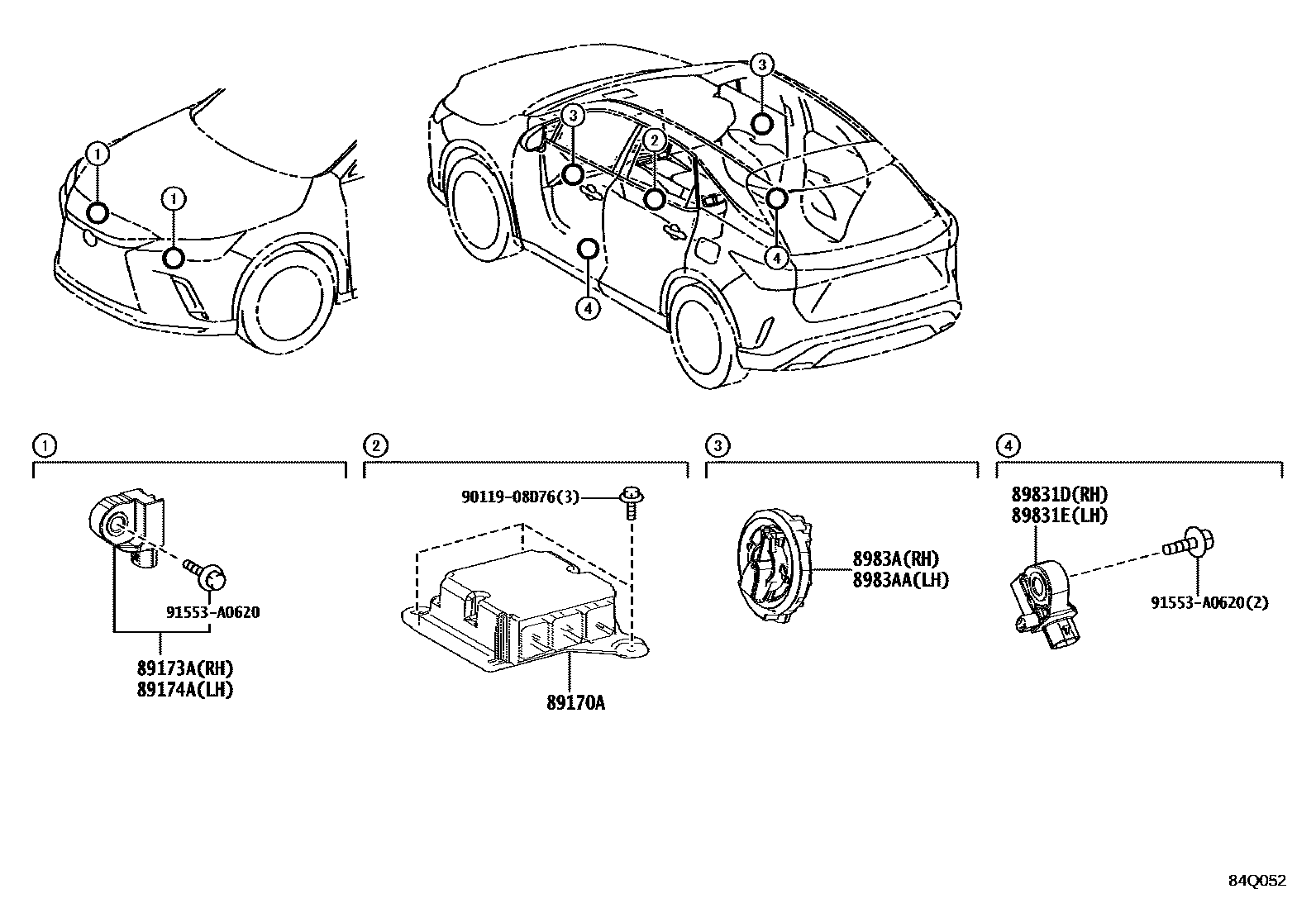

9 parts on this diagram · 1 diagram in section

AIR BAG for Toyota LEXUS RX SERIES

This section contains 9 genuine Toyota parts for the AIR BAG system of the Toyota LEXUS RX SERIES. Key components include: COMPUTER ASSY, AIRBAG, SENSOR, AIRBAG, FRONT RH, SENSOR, AIRBAG, FRONT LH, SENSOR, FLOOR SIDE AIRBAG, RH, SENSOR, FLOOR SIDE AIRBAG, LH.
