WIRELESS DOOR LOCK
89000COMPUTER ASSY, DIGITAL KEY
KEY PLATE-SMART KEY:2 & CARD KEY:1 & DIGITAL KEY,P/N LABEL=8900048011; KEY PLATE-SMART KEY:2 & DIGITAL KEY,P/N LABEL=8900048011
KEY PLATE-SMART KEY:2 & CARD KEY:1 & DIGITAL KEY; KEY PLATE-SMART KEY:2 & DIGITAL KEY
KEY PLATE-SMART KEY:2; KEY PLATE-SMART KEY:2 & CARD KEY:1
KEY PLATE-SMART KEY:2; KEY PLATE-SMART KEY:2 & CARD KEY:1
KEY PLATE-SMART KEY:2 & CARD KEY:1 & DIGITAL KEY; KEY PLATE-SMART KEY:2 & DIGITAL KEY
890D0RECEIVER ASSY, BLE DOOR DIGITAL KEY
KEY PLATE-SMART KEY:2 & CARD KEY:1 & DIGITAL KEY; KEY PLATE-SMART KEY:2 & DIGITAL KEY
890F0RECEIVER ASSY, BLE LUGGAGE DIGITAL KEY
KEY PLATE-SMART KEY:2 & CARD KEY:1 & DIGITAL KEY; KEY PLATE-SMART KEY:2 & DIGITAL KEY
KEY PLATE-SMART KEY:2 & CARD KEY:1 & DIGITAL KEY; KEY PLATE-SMART KEY:2 & DIGITAL KEY
890G0RECEIVER ASSY, BLE INDOOR DIGITAL KEY
KEY PLATE-SMART KEY:2 & CARD KEY:1 & DIGITAL KEY; KEY PLATE-SMART KEY:2 & DIGITAL KEY
KEY PLATE-SMART KEY:2 & CARD KEY:1 & DIGITAL KEY; KEY PLATE-SMART KEY:2 & DIGITAL KEY
89746CHARNESS, ELECTRICAL KEY WIRE, NO.1
KEY PLATE-SMART KEY:2 & CARD KEY:1 & DIGITAL KEY; KEY PLATE-SMART KEY:2 & DIGITAL KEY
89746DHARNESS, ELECTRICAL KEY WIRE, NO.2
KEY PLATE-SMART KEY:2 & CARD KEY:1 & DIGITAL KEY; KEY PLATE-SMART KEY:2 & DIGITAL KEY
89747BUZZER, WIRELESS DOOR LOCK
main89747-30040iAALH15,TALH17..LHD..EUR; AALH15..LHD..EUR; TALA15;AALH10..RHD;AALH15,16,TALA10,TALH17..GCC,GEN; TALH17..LHD..EUR202211
ARMENIA SPEC; AZERBAIJAN SPEC; GEORGIA SPEC; KAZAKHSTAN SPEC; KYRGYZSTAN SPEC; MONGOLIA SPEC; MOROCCO SPEC
8974FCASE, W/O DIGITAL KEY
89990ACOMPUTER ASSY, SMART KEY
BELARUS SPEC; GEORGIA SPEC; KAZAKHSTAN SPEC; KYRGYZSTAN SPEC; MONGOLIA SPEC; UKRAINE SPEC
main899H0-48210iAALH1#,TALH17..CHI,GCC,GEN; AALH15,16,TALH17..LHD..EUR; AALH15,TALH17..LHD..EUR; AALH15,TALH17..RHD..EUR; AALH15..LHD..EUR; TALH17..LHD..EUR202211-202308
BELARUS SPEC; GEORGIA SPEC; INDIA SPEC; ISRAEL SPEC; KAZAKHSTAN SPEC; KYRGYZSTAN SPEC; MONGOLIA SPEC; MOROCCO SPEC; REUNION SPEC; UKRAINE SPEC
main899H0-48211iAALH1#,TALH17..CHI,GCC,GEN; AALH15,16,TALH17..LHD..EUR; AALH15,TALH17..LHD..EUR; AALH15,TALH17..RHD..EUR; AALH15..LHD..EUR; TALH17..LHD..EUR202308-202410
BELARUS SPEC; GEORGIA SPEC; INDIA SPEC; ISRAEL SPEC; KAZAKHSTAN SPEC; KYRGYZSTAN SPEC; MONGOLIA SPEC; MOROCCO SPEC; REUNION SPEC; UKRAINE SPEC
BELARUS SPEC; GEORGIA SPEC; KAZAKHSTAN SPEC; KYRGYZSTAN SPEC; MONGOLIA SPEC; UKRAINE SPEC
ANTI-THEFT SYSTEM-WITH(*IM&ALARM&SIREN&*IS&TILT)
main899H0-48380iAALH1#,TALH17..CHI,GCC,GEN; AALH15,16,TALH17..LHD..EUR; AALH15,TALH17..RHD..EUR202410
ANTI-THEFT SYSTEM-WITH(*IM&ALARM&SIREN&*IS&TILT); ANTI-THEFT SYSTEM-WITH(IMMOBILIZER); INDIA SPEC
SOUTH AFRICA SPEC&ANTI-THEFT SYSTEM-W(*IM&ALARM&SIREN&*IS&ULTLA WIDE BAND)
INDONESIA SPEC
INDONESIA SPEC
INDONESIA SPEC
INDONESIA SPEC
INDONESIA SPEC
INDONESIA SPEC
SOUTH AFRICA SPEC&ANTI-THEFT SYSTEM-W(*IM&ALARM&SIREN&*IS&ULTLA WIDE BAND)
89997ANTENNA, ELECTRICAL KEY
899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
8271112B30WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12B30
9011906A07
main90119-06A07
9017906274
main90179-06274

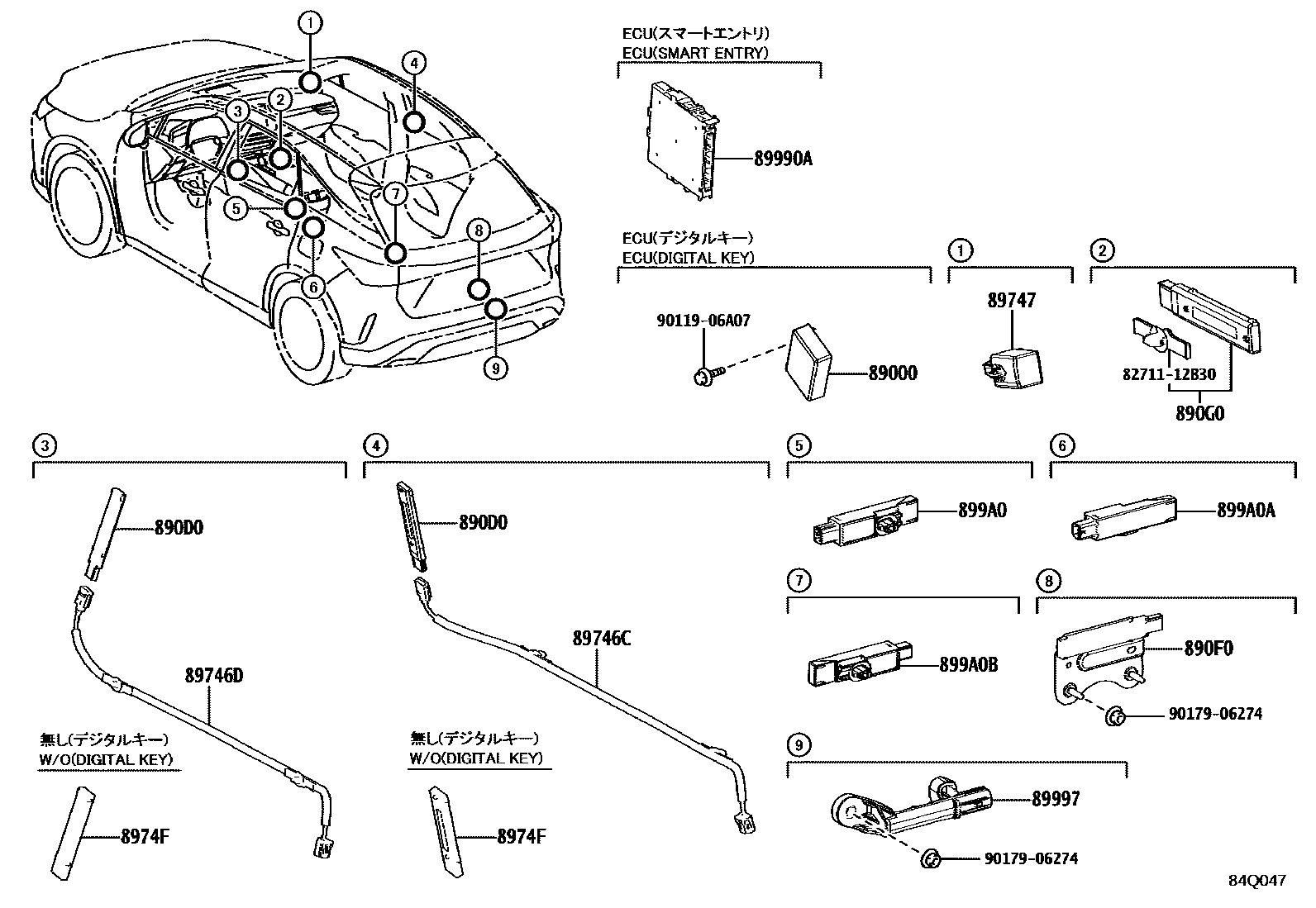

16 parts on this diagram · 2 diagrams in section
