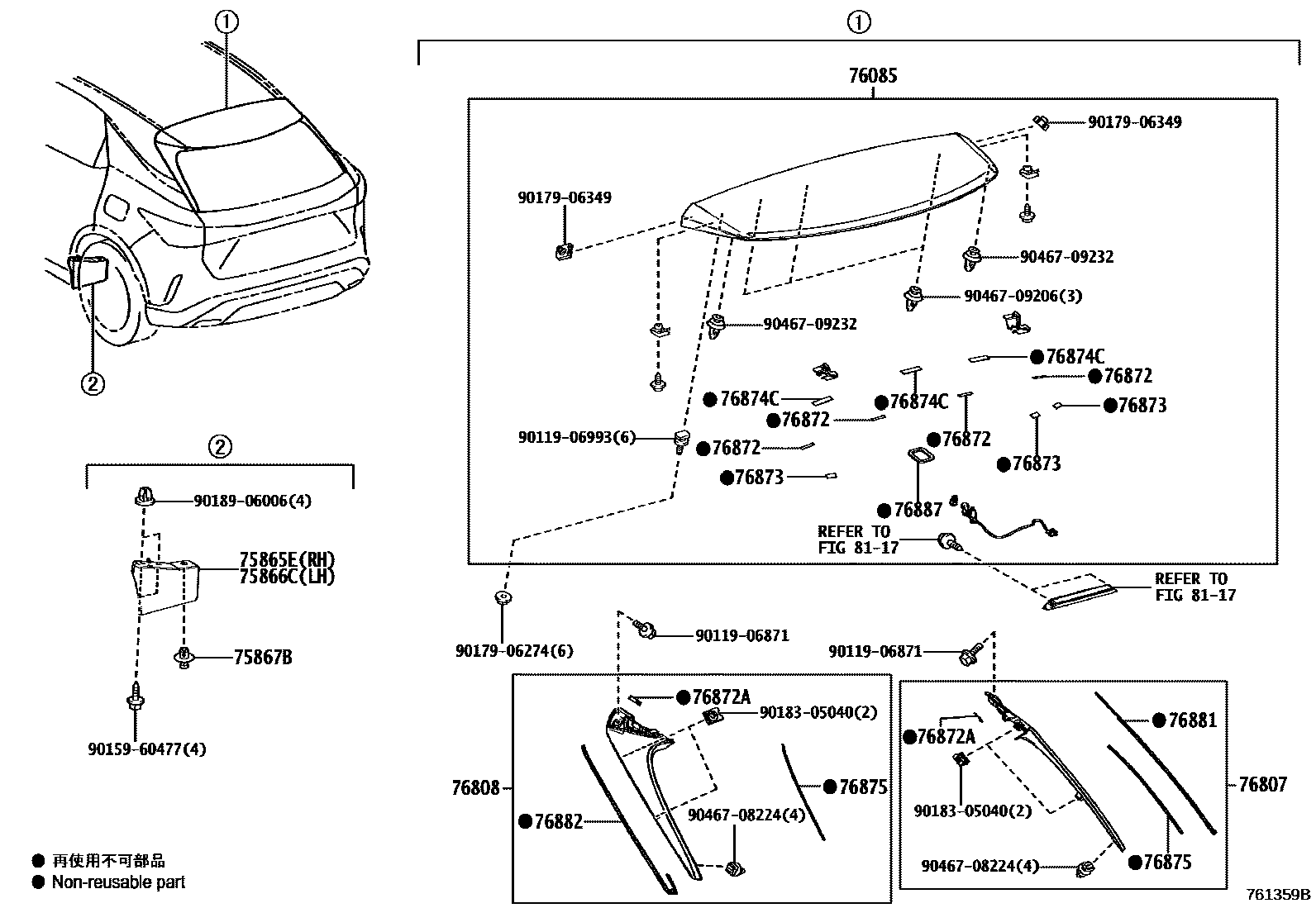

MUDGUARD & SPOILER

75865EPROTECTOR, ROCKER PANEL MOULDING, RH

main75865-48050iAALH1#,SALA15,TALA1#,TALH17202211

75866CRETAINER, ROCKER PANEL MOULDING, LH

main75866-48050iAALH1#,SALA15,TALA1#,TALH17202211

75867BCLIP, ROCKER PANEL MOULDING

main75867-33050iAALH1#,SALA15,TALA1#,TALH17202211

76085SPOILER SUB-ASSY, REAR

main76085-48913iAALH1#,SALA15,TALA1#,TALH17202211

PAINT REQ.

76807PROTECTOR SUB-ASSY, REAR SPOILER, SIDE RH

main76807-48060iAALH1#,SALA15,TALA1#,TALH17202211

76808PROTECTOR SUB-ASSY, REAR SPOILER, SIDE LH

main76808-48060iAALH1#,SALA15,TALA1#,TALH17202211

76872PROTECTOR, REAR SPOILER, NO.1

main76872-48011iAALH1#,SALA15,TALA1#,TALH17202211

76872APROTECTOR, REAR SPOILER, NO.1

main76872-48011iAALH1#,SALA15,TALA1#,TALH17202211

76873PROTECTOR, REAR SPOILER, NO.2

main76873-48070iAALH1#,SALA15,TALA1#,TALH17202211

76874CPROTECTOR, REAR SPOILER, NO.3

main76874-48030iAALH1#,SALA15,TALA1#,TALH17202211

76875PROTECTOR, REAR SPOILER, NO.4

main76875-48090iAALH1#,SALA15,TALA1#,TALH17202211

76881PROTECTOR, REAR SPOILER SIDE, NO.1 RH

main76881-48070iAALH1#,SALA15,TALA1#,TALH17202211

76882PROTECTOR, REAR SPOILER SIDE, NO.1 LH

main76882-48050iAALH1#,SALA15,TALA1#,TALH17202211

76887SEAL, REAR SPOILER

main76887-48060iAALH1#,SALA15,TALA1#,TALH17202211

8117CENTER STOP LAMP

→ Go to FIG 81-17

9011906871

main90119-06871

9011906993

main90119-06993

9015960477

main90159-60477

9017906274

main90179-06274

9017906349

main90179-06349

9018305040

main90183-05040

9018906006

main90189-06006

9046708224

main90467-08224

9046709206

main90467-09206

9046709232

main90467-09232

25 parts on this diagram · 1 diagram in section
