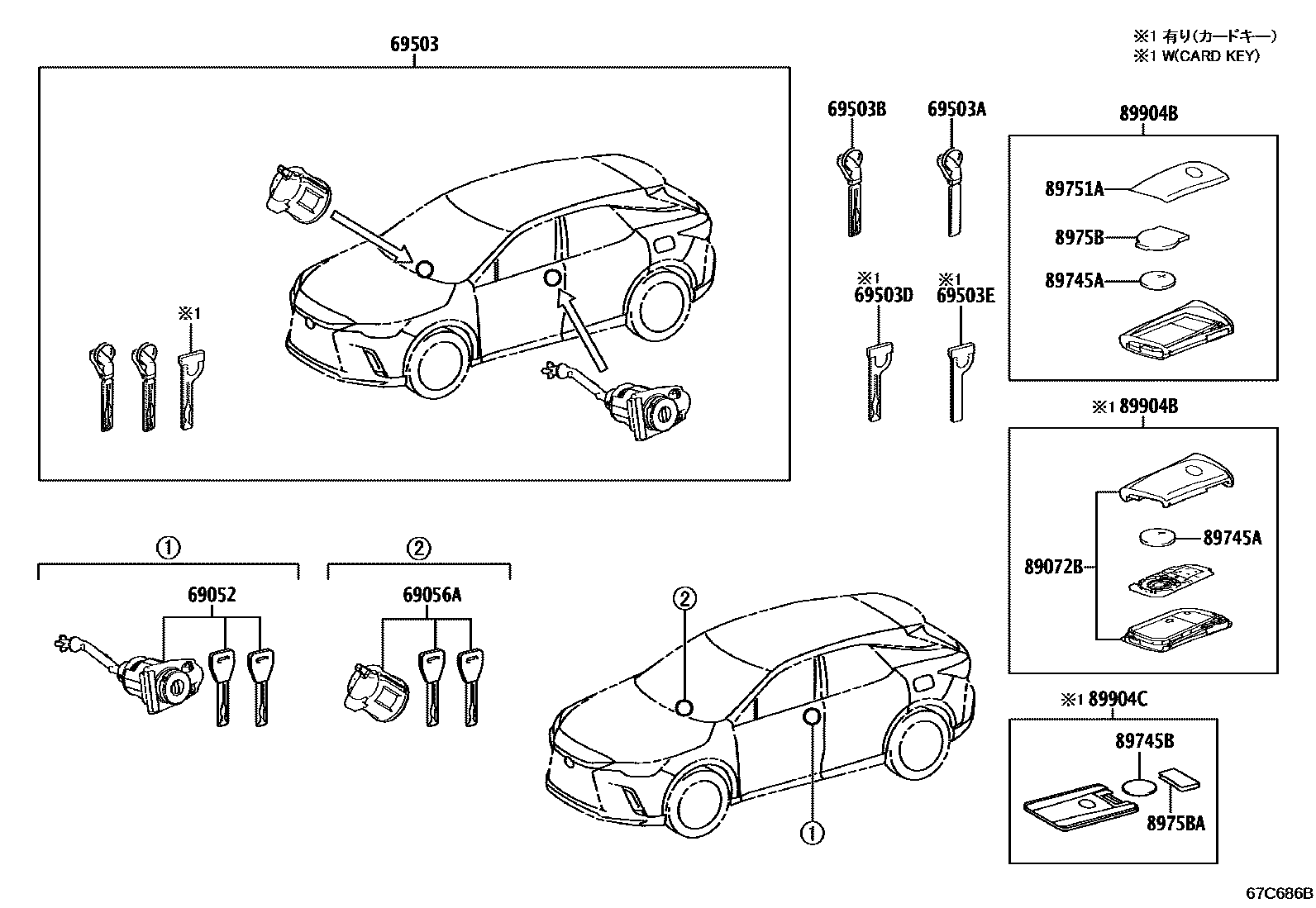

LOCK CYLINDER SET
69052CYLINDER & KEY SET, DOOR LOCK, LH
69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69503CYLINDER SET, LOCK
main69005-48670iAALH1#,SALA15,TALH17..LHD..(CHI,EUR); SALA15,TALA1#..LHD;AALH1#,TALH17..LHD..(EUR,GCC,GEN)202211
KEY PLATE-SMART KEY:2 & CARD KEY:1; KEY PLATE-SMART KEY:2 & CARD KEY:1 & DIGITAL KEY
KEY PLATE-SMART KEY:2 & CARD KEY:1
69503AKEY, BLANK
MASTER KEY,W(*68)
69503BKEY, CUT
MASTER KEY,W(*68)
69503DKEY, CUT(CARD KEY)
MASTER KEY
69503EKEY, BLANK(CARD KEY)
main69515-30350iAALH1#,TALA1#,TALH17..RHD..GEN; AALH10,15,TALH17..RHD..GEN; AALH10,SALA15,TALA1#..LHD;AALH15,16,TALH17..LHD..GEN;AALH15,16,TALH17..CHI,EUR,GCC; AALH15,TALA15,TALH17..RHD..GEN202211
MASTER KEY; MASTER KEY,AUSTRALIA SPEC; MASTER KEY,SOUTH AFRICA SPEC
89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
main89072-78700×2iAALH10,15,TALA15,TALH17..RHD..GEN; AALH10,TALA10..LHD..GEN; AALH15,16,TALA15,TALH17..LHD..GEN; AALH15,TALH17..RHD..GEN202211
AUSTRALIA SPEC; NEW ZEALAND SPEC; TAIWAN SPEC
BRAZIL SPEC; CHILE SPEC
89745ABATTERY, TRANSMITTER
CR2032; CR2032,INDIA SPEC
CR2450
89745BBATTERY, TRANSMITTER(CARD KEY)
main89745-50030iAALH15,16,TALH17..LHD..EUR; AALH15,TALH17..LHD..EUR; AALH15..LHD..EUR; AALH16..LHD..EUR202410
CR2412,AZERBAIJAN SPEC&ANTI-THEFT SYSTEM-WITH(*IM&ALARM&SIREN&*IS&TILT)&KEY PLATE-SMART KEY:2 & CARD KEY:1; CR2412,GEORGIA SPEC&ANTI-THEFT SYSTEM-WITH(*IM&ALARM&SIREN&*IS&TILT)&KEY PLATE-SMART KEY:2 & CARD KEY:1; CR2412,KAZAKHSTAN SPEC&ANTI-THEFT SYSTEM-WITH(*IM&ALARM&SIREN&*IS&TILT)&KEY PLATE-SMART KEY:2 & CARD KEY:1; CR2412,KYRGYZSTAN SPEC&ANTI-THEFT SYSTEM-WITH(*IM&ALARM&SIREN&*IS&TILT)&KEY PLATE-SMART KEY:2 & CARD KEY:1; CR2412,MOLDOVA SPEC&ANTI-THEFT SYSTEM-WITH(*IM&ALARM&SIREN&*IS&TILT)&KEY PLATE-SMART KEY:2 & CARD KEY:1; CR2412,MONGOLIA SPEC&ANTI-THEFT SYSTEM-WITH(*IM&ALARM&SIREN&*IS&TILT)&KEY PLATE-SMART KEY:2 & CARD KEY:1; CR2412,MOROCCO SPEC&ANTI-THEFT SYSTEM-WITH(*IM&ALARM&SIREN&*IS&TILT)&KEY PLATE-SMART KEY:2 & CARD KEY:1; CR2412,REUNION SPEC&ANTI-THEFT SYSTEM-WITH(*IM&ALARM&SIREN&*IS&TILT)&KEY PLATE-SMART KEY:2 & CARD KEY:1; CR2412,UKRAINE SPEC&ANTI-THEFT SYSTEM-WITH(*IM&ALARM&SIREN&*IS&TILT)&KEY PLATE-SMART KEY:2 & CARD KEY:1
89751ACOVER, TRANSMITTER HOUSING
main89751-33220×2iAALH10,TALA10..RHD;AALH15,16,TALA15,TALH17..GCC,GEN; AALH15,TALH17..RHD..EUR202211
INDIA SPEC
8975BCOVER, TRANSMITTER BATTERY HOUSING
main8975B-33040×2iAALH10,TALA10..RHD;AALH15,16,TALA15,TALH17..GCC,GEN; AALH15,TALH17..RHD..EUR202211
INDIA SPEC
8975BACOVER, TRANSMITTER BATTERY HOUSING(CARD KEY)
main8975B-50030iAALH15,16,TALH17..LHD..EUR; AALH15,TALH17..LHD..EUR; AALH15..LHD..EUR; AALH16..LHD..EUR202410
AZERBAIJAN SPEC&ANTI-THEFT SYSTEM-WITH(*IM&ALARM&SIREN&*IS&TILT)&KEY PLATE-SMART KEY:2 & CARD KEY:1; GEORGIA SPEC&ANTI-THEFT SYSTEM-WITH(*IM&ALARM&SIREN&*IS&TILT)&KEY PLATE-SMART KEY:2 & CARD KEY:1; KAZAKHSTAN SPEC&ANTI-THEFT SYSTEM-WITH(*IM&ALARM&SIREN&*IS&TILT)&KEY PLATE-SMART KEY:2 & CARD KEY:1; KYRGYZSTAN SPEC&ANTI-THEFT SYSTEM-WITH(*IM&ALARM&SIREN&*IS&TILT)&KEY PLATE-SMART KEY:2 & CARD KEY:1; MOLDOVA SPEC&ANTI-THEFT SYSTEM-WITH(*IM&ALARM&SIREN&*IS&TILT)&KEY PLATE-SMART KEY:2 & CARD KEY:1; MONGOLIA SPEC&ANTI-THEFT SYSTEM-WITH(*IM&ALARM&SIREN&*IS&TILT)&KEY PLATE-SMART KEY:2 & CARD KEY:1; MOROCCO SPEC&ANTI-THEFT SYSTEM-WITH(*IM&ALARM&SIREN&*IS&TILT)&KEY PLATE-SMART KEY:2 & CARD KEY:1; REUNION SPEC&ANTI-THEFT SYSTEM-WITH(*IM&ALARM&SIREN&*IS&TILT)&KEY PLATE-SMART KEY:2 & CARD KEY:1; UKRAINE SPEC&ANTI-THEFT SYSTEM-WITH(*IM&ALARM&SIREN&*IS&TILT)&KEY PLATE-SMART KEY:2 & CARD KEY:1
89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY
main8990H-48170iAALH10,15,TALA15,TALH17..RHD..GEN; AALH10,TALA10..LHD..GEN; AALH15,16,TALA15,TALH17..LHD..GEN; AALH15,TALH17..RHD..GEN202211-202407
AUSTRALIA SPEC; NEW ZEALAND SPEC; TAIWAN SPEC
main8990H-48171iAALH1#,TALA15,TALH17..RHD..GEN; AALH10,TALA10..LHD..GEN; AALH15,16,TALA15,TALH17..LHD..GEN; AALH15,16,TALH17..RHD..GEN202408-202409
AUSTRALIA SPEC; NEW ZEALAND SPEC; TAIWAN SPEC
main8990H-48172iAALH1#,TALA15,TALH17..RHD..GEN; AALH10,TALA10..LHD..GEN; AALH15,16,TALA15,TALH17..LHD..GEN; AALH15,16,TALH17..RHD..GEN202409
AUSTRALIA SPEC; NEW ZEALAND SPEC; TAIWAN SPEC
SOUTH AFRICA SPEC&ANTI-THEFT SYSTEM-W(*IM&ALARM&SIREN&*IS&ULTLA WIDE BAND)
CHILE SPEC
CHILE SPEC
CHILE SPEC
BRAZIL SPEC
BRAZIL SPEC
BRAZIL SPEC
main8990H-48220iAALH15,TALA15,TALH17..LHD..GEN; AALH15..LHD..EUR; AALH16..LHD..EUR; AALH16..LHD..GEN; AALH16..RHD..GEN202308-202408
GEORGIA SPEC; KAZAKHSTAN SPEC; KYRGYZSTAN SPEC; PANAMA SPEC; PANAMA,PERU SPEC; REUNION SPEC; SOUTH AFRICA SPEC; UKRAINE SPEC
main8990H-48221iAALH15,16,TALA15,TALH17..LHD..EUR; AALH15,16,TALH17..LHD..EUR; AALH15,TALA15,TALH17..LHD..EUR; AALH15..LHD..EUR; TALA15,TALH17..LHD..EUR; TALA15..LHD..GEN202409-202410
BELARUS SPEC; GEORGIA SPEC; KAZAKHSTAN SPEC; KYRGYZSTAN SPEC; MONGOLIA SPEC; MOROCCO SPEC; PANAMA,PERU SPEC; REUNION SPEC; UKRAINE SPEC
INDONESIA SPEC
INDONESIA SPEC
INDONESIA SPEC
INDIA SPEC
INDIA SPEC
89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)
BRAZIL SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1; CHILE SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1
BRAZIL SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1; CHILE SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1
BRAZIL SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1; CHILE SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1
main8990H-78571iAALH1#,TALA1#,TALH17..GCC,GEN; AALH1#,TALH17..CHI; AALH15,16,TALH17..LHD..EUR; AALH15,TALA15,TALH17..LHD..EUR; AALH15,TALH17..LHD..EUR; AALH15..LHD..EUR; TALA15,TALH17..LHD..EUR202211-202309
BELARUS SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1; GEORGIA SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1; ISRAEL SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1; ISRAEL SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1 & DIGITAL KEY; KAZAKHSTAN SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1; KEY PLATE-SMART KEY:2 & CARD KEY:1; KEY PLATE-SMART KEY:2 & CARD KEY:1 & DIGITAL KEY; KYRGYZSTAN SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1; MONGOLIA SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1; MOROCCO SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1; REUNION SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1; UKRAINE SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1
main8990H-78572iAALH1#,TALA1#,TALH17..CHI,GCC,GEN; AALH1#,TALH17..CHI; AALH15,16,TALA15,TALH17..LHD..EUR; AALH15,16,TALH17..LHD..EUR; AALH15,TALA15,TALH17..LHD..EUR; AALH15..LHD..EUR; TALA15,TALH17..LHD..EUR202310-202407
BELARUS SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1; GEORGIA SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1; ISRAEL SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1; ISRAEL SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1 & DIGITAL KEY; KAZAKHSTAN SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1; KEY PLATE-SMART KEY:2 & CARD KEY:1; KEY PLATE-SMART KEY:2 & CARD KEY:1 & DIGITAL KEY; KYRGYZSTAN SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1; MONGOLIA SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1; MOROCCO SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1; REUNION SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1; UKRAINE SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1
main8990H-78573iAALH1#,TALA1#,TALH17..CHI,GCC,GEN; AALH1#,TALH17..CHI; AALH15,16,TALA15,TALH17..LHD..EUR; AALH15,16,TALH17..LHD..EUR; AALH15,TALA15,TALH17..LHD..EUR; AALH15..LHD..EUR; TALA15,TALH17..LHD..EUR202408-202409
BELARUS SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1; GEORGIA SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1; ISRAEL SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1; ISRAEL SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1 & DIGITAL KEY; KAZAKHSTAN SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1; KEY PLATE-SMART KEY:2 & CARD KEY:1; KEY PLATE-SMART KEY:2 & CARD KEY:1 & DIGITAL KEY; KYRGYZSTAN SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1; MONGOLIA SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1; MOROCCO SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1; REUNION SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1; UKRAINE SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1
ISRAEL SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&KEY PLATE-SMART KEY:2 & CARD KEY:1; ISRAEL SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&KEY PLATE-SMART KEY:2 & CARD KEY:1& DIGITAL KEY
INDIA SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1
INDIA SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1
INDIA SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1
INDONESIA SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1
INDONESIA SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1
INDONESIA SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1
INDONESIA SPEC&KEY PLATE-SMART KEY:2 & CARD KEY:1
15 parts on this diagram · 2 diagrams in section
