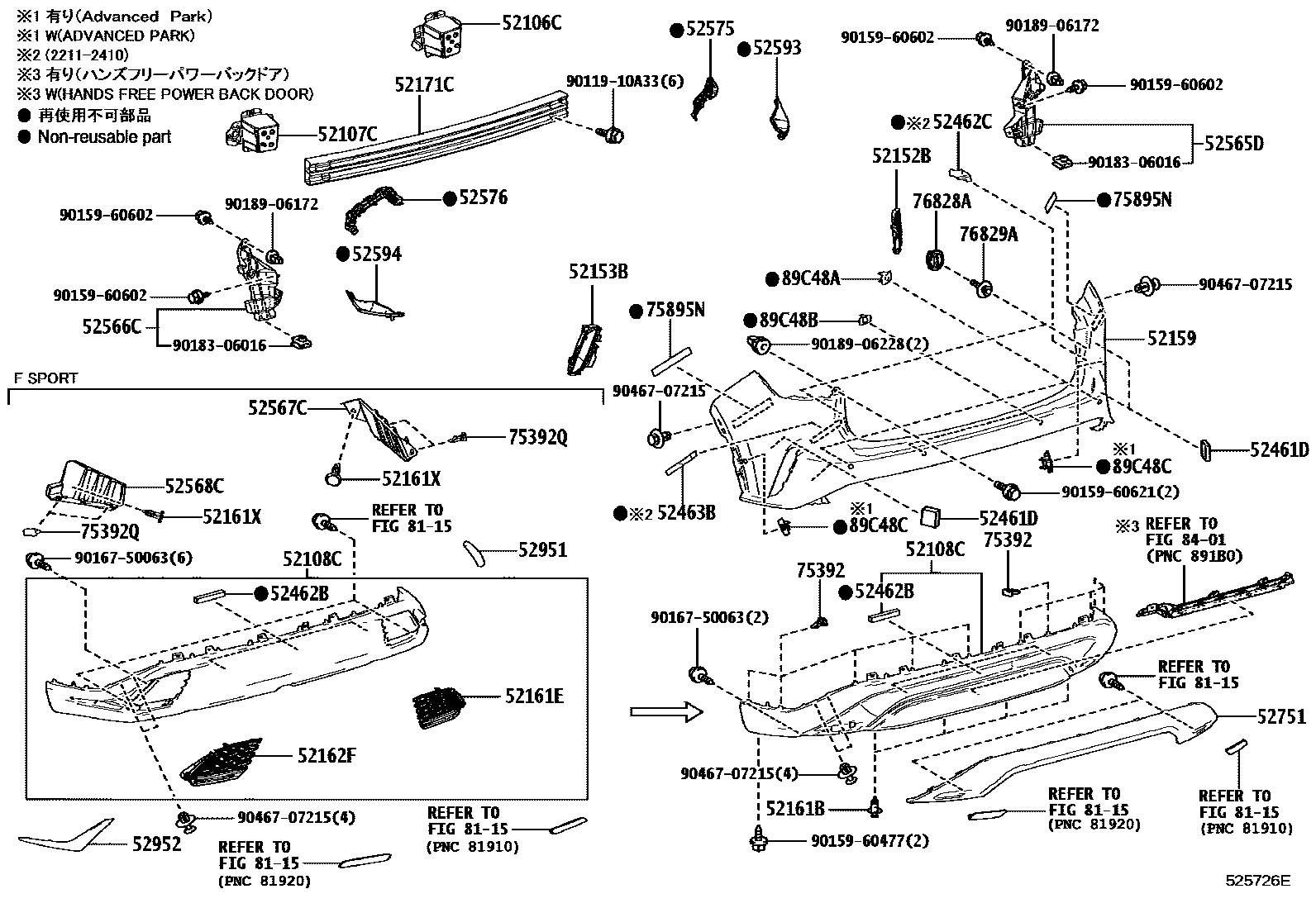

REAR BUMPER & BUMPER STAY
52106CEXTENSION SUB-ASSY, REAR BUMPER, RH
52107CEXTENSION SUB-ASSY, REAR BUMPER, LH
52108CEXTENSION SUB-ASSY, REAR BUMPER, CENTER
NO PAINT REQ.
PAINT REQ.
52152BEXTENSION, REAR BUMPER, RH
52153BEXTENSION, REAR BUMPER, LH
52159COVER, REAR BUMPER
PAINT REQ.
52161BPIECE, REAR BUMPER
52161EEXTENSION, REAR BUMPER SIDE, RH
F SPORT
F SPORT&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)&ADVANCED PARK-WITH
F SPORT&ADVANCED PARK-WITH
52161XPIECE, REAR BUMPER
F SPORT
F SPORT&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)&ADVANCED PARK-WITH
F SPORT&ADVANCED PARK-WITH
52162FEXTENSION, REAR BUMPER SIDE, LH
F SPORT
F SPORT&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)&ADVANCED PARK-WITH
F SPORT&ADVANCED PARK-WITH
52171CREINFORCEMENT, REAR BUMPER
52461DCUSHION, REAR BUMPER
52462BPAD, REAR BUMPER
F SPORT
F SPORT&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)&ADVANCED PARK-WITH
F SPORT&ADVANCED PARK-WITH
52462CPAD, REAR BUMPER, RH
52463BPAD, REAR BUMPER, LH
52565DRETAINER, REAR BUMPER, LOWER RH
52566CRETAINER, REAR BUMPER, LOWER LH
52567CRETAINER, REAR BUMPER LOWER SIDE, RH
F SPORT
F SPORT&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)&ADVANCED PARK-WITH
F SPORT&ADVANCED PARK-WITH
52568CRETAINER, REAR BUMPER LOWER SIDE, LH
F SPORT
F SPORT&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)&ADVANCED PARK-WITH
F SPORT&ADVANCED PARK-WITH
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52593SILENCER, REAR BUMPER, RH
52594SILENCER, REAR BUMPER, LH
52751MOULDING, REAR BUMPER
NOT APPLICABLE
F SPORT,NOT APPLICABLE
F SPORT&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)&ADVANCED PARK-WITH,NOT APPLICABLE
F SPORT&ADVANCED PARK-WITH,NOT APPLICABLE
52951GUARD, SIDE BUMPER, RH
52952GUARD, SIDE BUMPER, LH
75392RETAINER, OUTSIDE MOULDING
75392QRETAINER, OUTSIDE MOULDING, NO.2
F SPORT
F SPORT&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)&ADVANCED PARK-WITH
F SPORT&ADVANCED PARK-WITH
75895NTAPE, MOULDING, NO.1
76828ARETAINER, BACK DOOR GARNISH, NO.3
76829ARETAINER, BACK DOOR GARNISH
8115REFLEX REFLECTOR
8401SWITCH & RELAY & COMPUTER
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
89C48CRETAINER, ULTRASONIC SENSOR, REAR SIDE
9011910A33
main90119-10A33
9015960477
main90159-60477
9015960602
main90159-60602
9015960621
main90159-60621
9016750063
main90167-50063
9018306016
main90183-06016
9018906172
main90189-06172
9018906228
main90189-06228
9046707215
main90467-07215
45 parts on this diagram · 2 diagrams in section
