DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
INDIA SPEC; INDIA SPEC&TIRE & DISC WHEEL-235/50R21 SUMMER TIRE
42601WHEEL, DISC
19X8J,*DGMP,INDIA SPEC,TYPE A:REFER ILLUST.; 19X8J,*DGMP,KYRGYZSTAN SPEC,TYPE A:REFER ILLUST.; 19X8J,*DGMP,TYPE A:REFER ILLUST.
21X8J,*DGMP,BRAZIL SPEC&TIRE & DISC WHEEL-235/50R21 SUMMER TIRE,TYPE B:REFER ILLUST.; 21X8J,*DGMP,CHILE SPEC&TIRE & DISC WHEEL-235/50R21 SUMMER TIRE,TYPE B:REFER ILLUST.
21X8J,#,KYRGYZSTAN SPEC&TIRE & DISC WHEEL-235/50R21 SUMMER TIRE,TYPE B:REFER ILLUST.; 21X8J,#,TIRE & DISC WHEEL-235/50R21 SUMMER TIRE,TYPE B:REFER ILLUST.
21X8J,*DGMP,BRAZIL SPEC&TIRE & DISC WHEEL-235/50R21 SUMMER TIRE,TYPE C:REFER ILLUST.; 21X8J,*DGMP,CHILE SPEC&TIRE & DISC WHEEL-235/50R21 SUMMER TIRE,TYPE C:REFER ILLUST.
21X8J,*DGMP,KYRGYZSTAN SPEC&TIRE & DISC WHEEL-235/50R21 SUMMER TIRE,TYPE C:REFER ILLUST.; 21X8J,*DGMP,TIRE & DISC WHEEL-235/50R21 SUMMER TIRE,TYPE C:REFER ILLUST.
21X8J,#,TIRE & DISC WHEEL-235/50R21 SUMMER TIRE,TYPE D:REFER ILLUST.
21X8J,#,TIRE & DISC WHEEL-235/50R21 SM AC2,TYPE I:REFER ILLUST.
21X8J,*DPMP,BRAZIL SPEC&TIRE & DISC WHEEL-235/50R21 SUMMER TIRE,TYPE C:REFER ILLUST.; 21X8J,*DPMP,CHILE SPEC&TIRE & DISC WHEEL-235/50R21 SUMMER TIRE,TYPE C:REFER ILLUST.
21X8J,*DPMP,KYRGYZSTAN SPEC&TIRE & DISC WHEEL-235/50R21 SUMMER TIRE,TYPE C:REFER ILLUST.
main4261A-48330×4iTALA15..GCC,GEN; TALA15..LHD..GEN; TALH17..CHI,GCC,GEN; TALH17..GCC; TALH17..LHD..GEN202211
21X8J,#,BOLIVIA SPEC&F SPORT&TIRE & DISC WHEEL-235/50R21 SUMMER TIRE,TYPE E:REFERILLUST.; 21X8J,#,BRAZIL SPEC&TIRE & DISC WHEEL-235/50R21 SUMMER TIRE,TYPE E:REFER ILLUST.; 21X8J,#,CHILE SPEC&F SPORT&TIRE & DISC WHEEL-235/50R21 SUMMER TIRE,TYPE E:REFER ILLUST.; 21X8J,#,CHILE SPEC&TIRE & DISC WHEEL-235/50R21 SUMMER TIRE,TYPE E:REFER ILLUST.; 21X8J,#,F SPORT&TIRE & DISC WHEEL-235/50R21 SUMMER TIRE,TYPE E:REFER ILLUST.; 21X8J,#,IRAQ SPEC&TIRE & DISC WHEEL-235/50R21 SUMMER TIRE,TYPE E:REFER ILLUST.; 21X8J,#,TIRE & DISC WHEEL-235/50R21 SUMMER TIRE,TYPE E:REFER ILLUST.
21X8J,#,F SPORT&TIRE & DISC WHEEL-235/50R21 SUMMER TIRE,TYPE E:REFER ILLUST.; 21X8J,#,KYRGYZSTAN SPEC&F SPORT&TIRE & DISC WHEEL-235/50R21 SUMMER TIRE,TYPE E:REFER ILLUST.; 21X8J,#,TIRE & DISC WHEEL-235/50R21 SUMMER TIRE,TYPE E:REFER ILLUST.
42601BBOLT, HUB (FOR AXLE)
42603ORNAMENT SUB-ASSY, WHEEL HUB
*ALU,TYPE A:REFER ILLUST.
*ALU,F SPORT,TYPE A:REFER ILLUST.; *ALU,TYPE A:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
INDIA SPEC&TIRE & DISC WHEEL-235/50R21 SUMMER TIRE,PNC 42611U = BLACK; INDIA SPEC,PNC 42611U = BLACK
main42607-48040×4iAALH15,TALA15,TALH17..LHD..GEN; AALH15,TALA15..LHD..GEN; TALA15..LHD..GEN; TALH17..LHD..GEN202211-202410
BRAZIL SPEC; BRAZIL SPEC&TIRE & DISC WHEEL-235/50R21 SUMMER TIRE; CHILE SPEC; CHILE SPEC&F SPORT&TIRE & DISC WHEEL-235/50R21 SUMMER TIRE; CHILE SPEC&TIRE & DISC WHEEL-235/50R21 SUMMER TIRE
main42607-48060×4iAALH15,16,TALA15,TALH17..LHD..GEN; AALH15,16,TALA15..LHD..GEN; AALH16,TALH17..LHD..GEN; AALH16..LHD..GEN; TALA15..LHD..GEN; TALH17..LHD..GEN202410
BRAZIL SPEC; BRAZIL SPEC&TIRE & DISC WHEEL-235/50R21 SUMMER TIRE; CHILE SPEC; CHILE SPEC&F SPORT&TIRE & DISC WHEEL-235/50R21 SUMMER TIRE; CHILE SPEC&TIRE & DISC WHEEL-235/50R21 SM AC2; CHILE SPEC&TIRE & DISC WHEEL-235/50R21 SUMMER TIRE
INDIA SPEC&TIRE & DISC WHEEL-235/50R21 SUMMER TIRE,PNC 42611U = SILVER; INDIA SPEC,PNC 42611U = SILVER
42607DVALVE, TIRE PRESSURE MONITOR
INDIA SPEC&TIRE & DISC WHEEL-235/50R21 SUMMER TIRE,PNC 42611U = SILVER; INDIA SPEC,PNC 42611U = SILVER
42611JVALVE (FOR TUBELESS TIRE SPARE)
main90942-05009iAALH15,16,TALH17..LHD..EUR; AALH15..LHD..EUR; AALH15..RHD..EUR; AALH16..LHD..GEN; TALA15,TALH17..RHD..GEN; TALA15..LHD;AALH10,SALA15..CHI;AALH15,TALH17..LHD..(CHI,GCC,GEN); TALH17..LHD..EUR; TALH17..RHD..EUR; TALH17..RHD..GEN202211
ARMENIA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V; AZERBAIJAN SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V; AZERBAIJAN SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V; BELARUS SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V; COSTA RICA SPEC; GEORGIA SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V; GEORGIA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V; HONG KONG SPEC&SPARE TIRE-S-TEMPORARY(T165/70D20); INDIA SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V; INDIA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V; KAZAKHSTAN SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V; KYRGYZSTAN SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V; MACAU SPEC&SPARE TIRE-S-TEMPORARY(T165/70D20); MOLDOVA SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V; MOLDOVA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V; MONGOLIA SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V; MONGOLIA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V; MOROCCO SPEC; RUSSIA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V; SPARE TIRE-S-TEMPORARY(T165/70D20); THAILAND SPEC&SPARE TIRE-S-TEMPORARY(T165/70D20); TURKEY SPEC; UKRAINE SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V; UKRAINE SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V
42611UCAP, TIRE VALVE
INDIA SPEC&TIRE & DISC WHEEL-235/50R21 SUMMER TIRE,SILVER; INDIA SPEC,SILVER

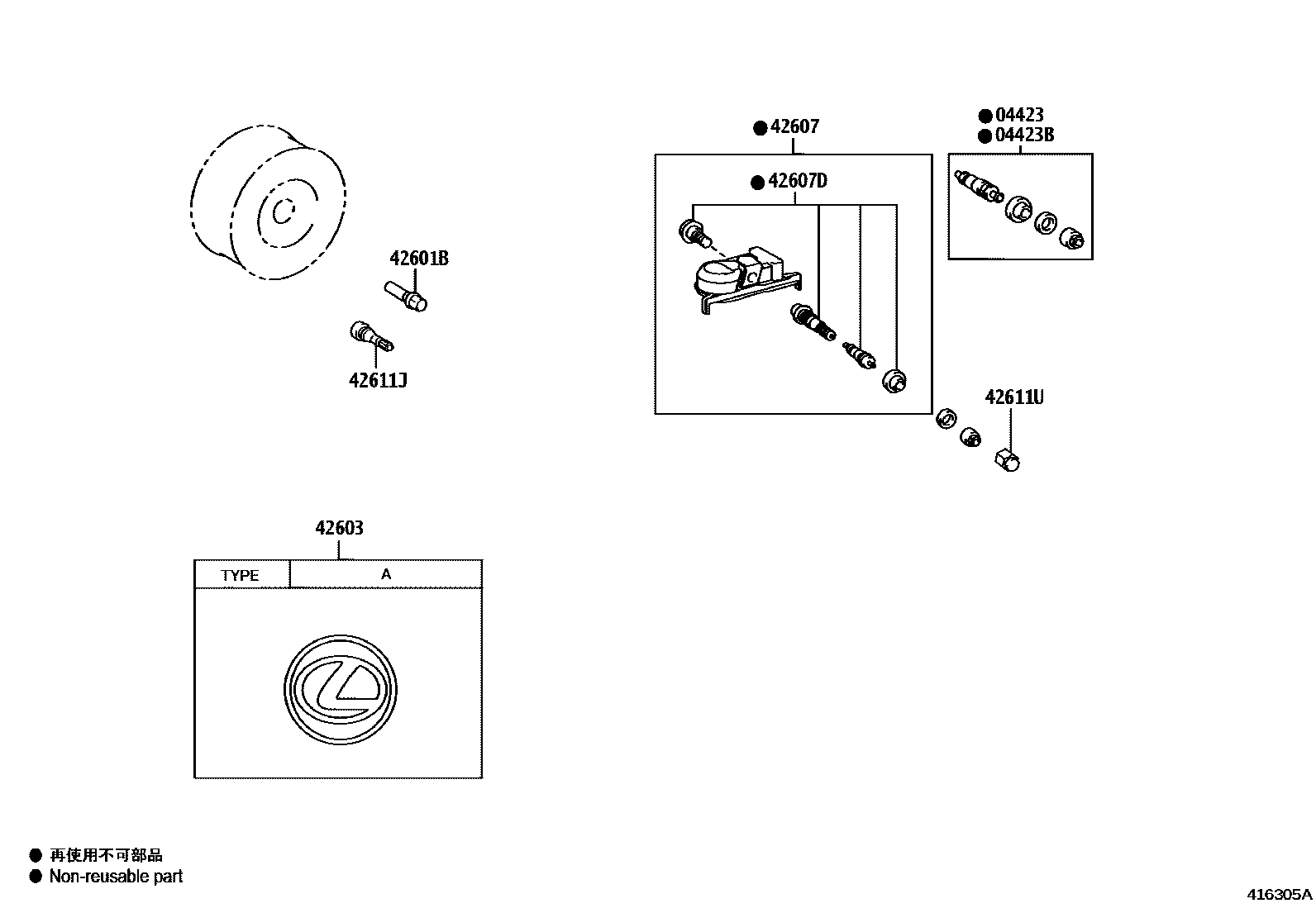

9 parts on this diagram · 3 diagrams in section
