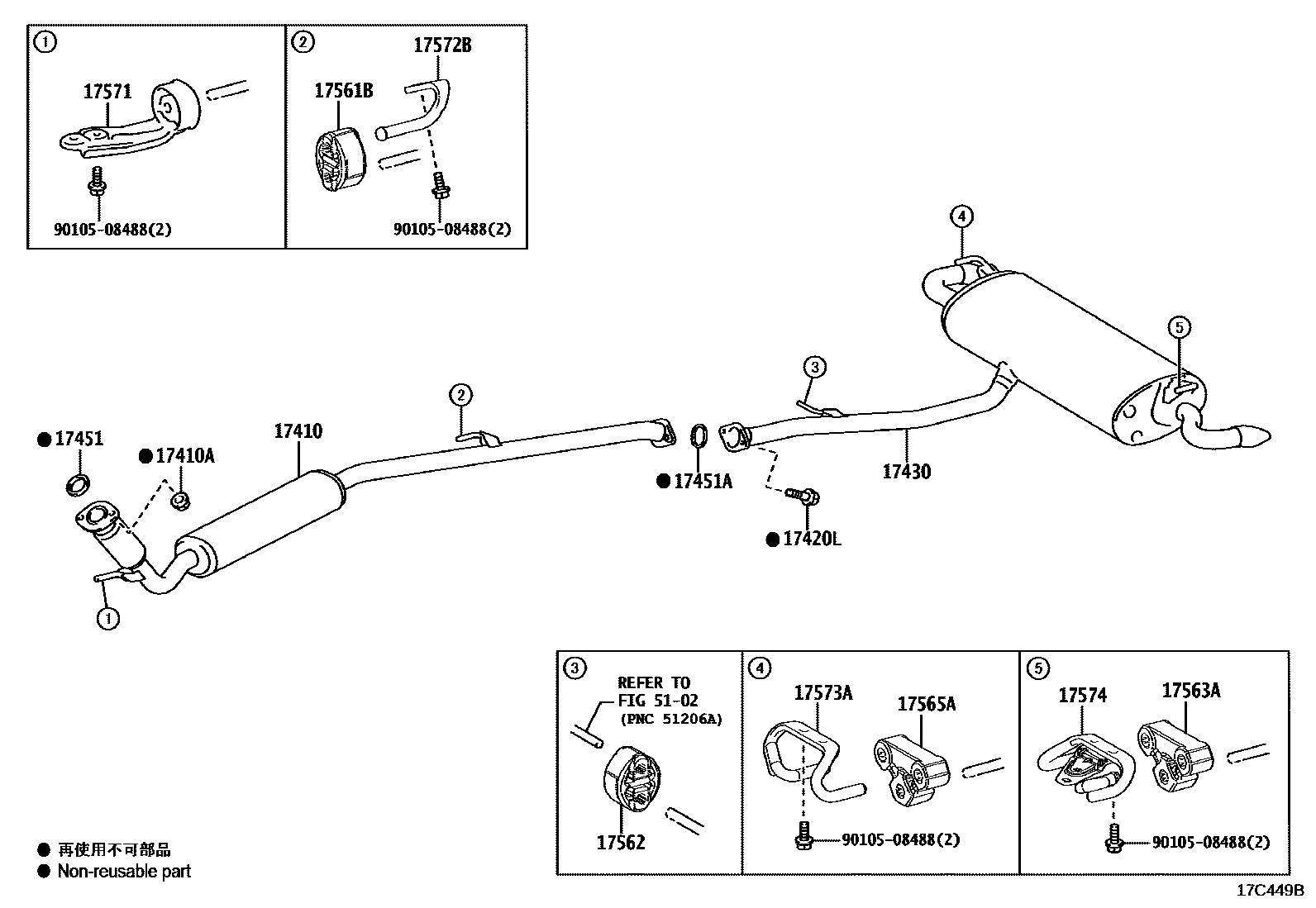

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS); MOLDOVA SPEC&EXHAUST EMISSION CONTROL-EURO6B, WITHOUT(ON BOARD DIAGNOSIS); MONGOLIA SPEC&EXHAUST EMISSION CONTROL-EURO6B, WITHOUT(ON BOARD DIAGNOSIS); MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS); UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS)
*114=TOYOTA/PC3/Y
*114=TOYOTA/PC3/Y
ARMENIA SPEC&EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS); AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS); GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS); KAZAKHSTAN SPEC&EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS); KYRGYZSTAN SPEC&EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS); MOLDOVA SPEC&EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS); MONGOLIA SPEC&EXHAUST EMISSION CONTROL-EURO6B, WITHOUT(ON BOARD DIAGNOSIS); MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS); UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS)
AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS); GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS); KAZAKHSTAN SPEC&EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS); KYRGYZSTAN SPEC&EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS); MOLDOVA SPEC&EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS); UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS)
BRAZIL SPEC&EXHAUST EMISSION CONTROL-BRASIL L7,WITH(ON BOARD DIAGNOSIS)
AUSTRALIA SPEC
AUSTRALIA SPEC
INDIA SPEC&EXHAUST EMISSION CONTROL-INDIA BS6, WITH(ON BOARD DIAGNOSIS)
17410ANUT, EXHAUST PIPE SET STUD BOLT
17420LBOLT, FLANGE(FOR EXHAUST PIPE)
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
17451AGASKET, EXHAUST PIPE, NO.2
17561BSUPPORT, EXHAUST PIPE, NO.1
17562SUPPORT, EXHAUST PIPE, NO.2
17563ASUPPORT, EXHAUST PIPE, NO.3
17565ASUPPORT, EXHAUST PIPE, NO.4
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
17574BRACKET, EXHAUST PIPE SUPPORT, NO.4
5102SUSPENSION CROSSMEMBER & UNDER COVER
9010508488
main90105-08488
16 parts on this diagram · 3 diagrams in section
