Toyota LEXUS RX SERIES — CRANKSHAFT & PISTON

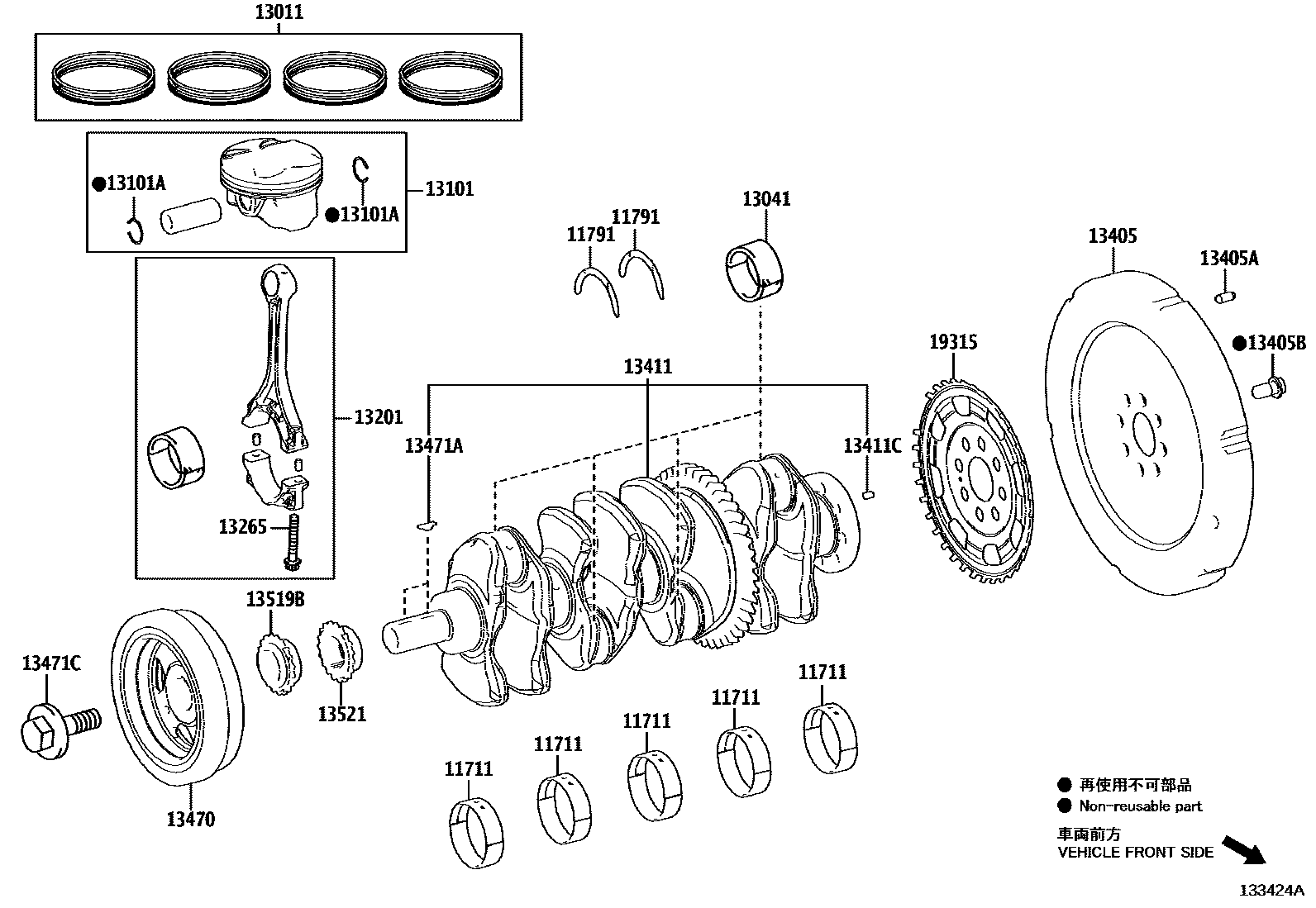

Parts diagram

11711BEARING, CRANKSHAFT

11791WASHER, CRANKSHAFT THRUST, UPPER

13011RING SET, PISTON

13041BEARING, CONNECTING ROD

13101PISTON SUB-ASSY, W/PIN

13101ARING, HOLE SNAP(FOR PISTON PIN)

13201ROD SUB-ASSY, CONNECTING

13265BOLT, CONNECTING ROD

13405FLYWHEEL SUB-ASSY

13405APIN, STRAIGHT(FOR FLYWHEEL)

13405BBOLT, FLYWHEEL SETTING

13411CRANKSHAFT

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

13470PULLEY ASSY, CRANKSHAFT

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

13519BSPROCKET, OIL PUMP DRIVE

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

19315PLATE, CRANK ANGLE SENSOR, NO.1

19 parts on this diagram · 7 diagrams in section

CRANKSHAFT & PISTON for Toyota LEXUS RX SERIES

This section contains 20 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota LEXUS RX SERIES. Key components include: BEARING, CRANKSHAFT, WASHER, CRANKSHAFT THRUST, UPPER, RING SET, PISTON, BEARING, CONNECTING ROD, PISTON SUB-ASSY, W/PIN.
