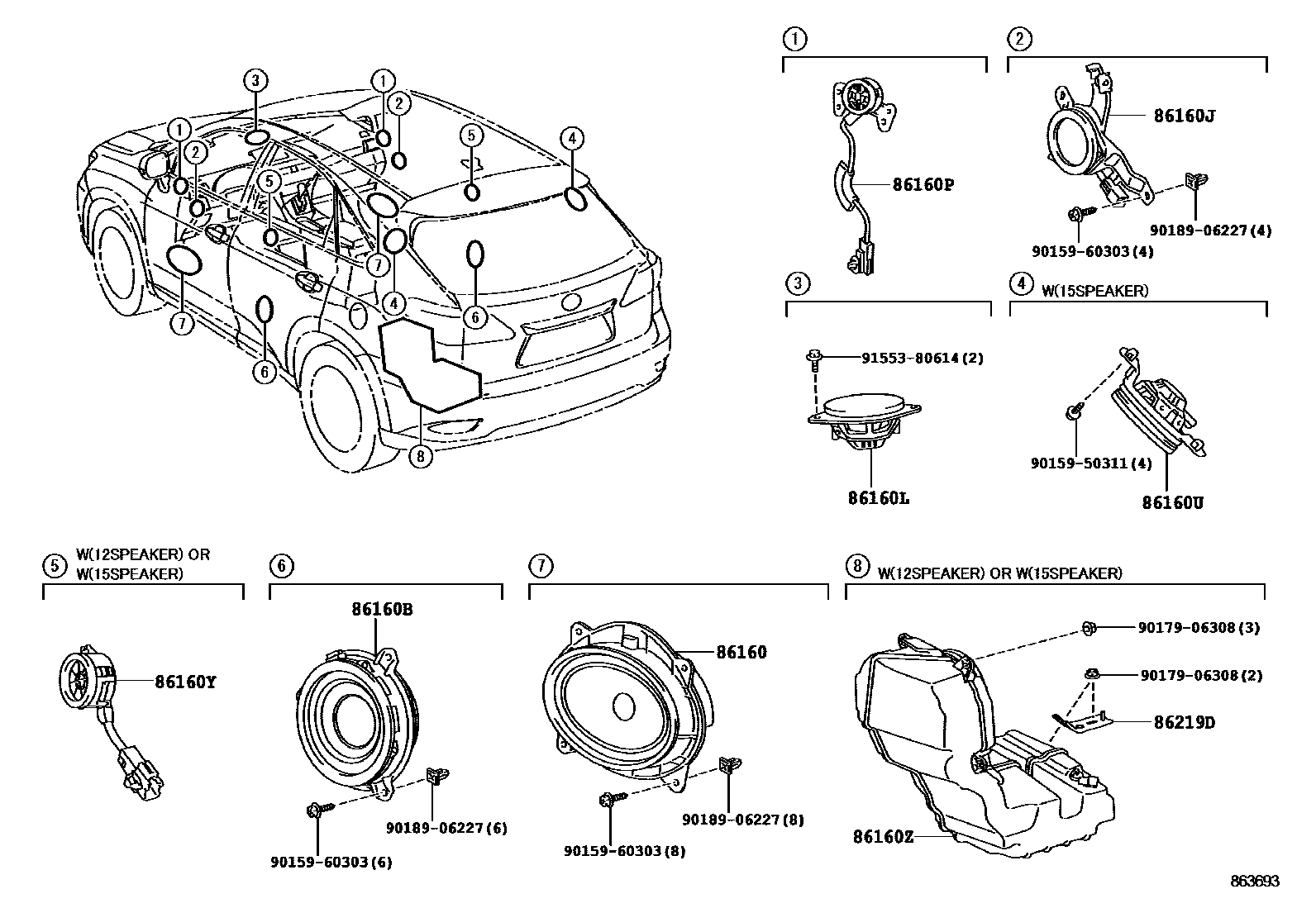

SPEAKER
86160SPEAKER ASSY, FRONT NO.1
main86160-0WL50×2iAGL10,GGL15,GYL1#..EUR; AGL10,GGL15,GYL15..LHD..EUR; AGL10..RHD;GGL15,GYL15200812-201203
AUDIO-DVD CHANGER,15SPEAKER,*MAR; AUDIO-DVD CHANGER,HDD NAVIGATION,15SP,*MAR; AUDIO-DVD CHANGER,RDS,15SPEAKER,*MAR
86160BSPEAKER ASSY, REAR
main86160-0WG20×2iAGL10,GGL15,GYL1#..EUR; AGL10,GGL15,GYL15..LHD..EUR; AGL10..RHD;GGL15,GYL15200812-201203
AUDIO-DVD CHANGER,15SPEAKER,*MAR; AUDIO-DVD CHANGER,HDD NAVIGATION,15SP,*MAR; AUDIO-DVD CHANGER,RDS,15SPEAKER,*MAR
86160JSPEAKER ASSY, FRONT NO.3
RH
LH
RH
LH
main86160-0WL30iAGL10,GGL15,GYL1#..EUR; AGL10,GGL15,GYL15..LHD..EUR; AGL10..RHD;GGL15,GYL15200812-201203
AUDIO-DVD CHANGER,15SPEAKER,*MAR,RH; AUDIO-DVD CHANGER,HDD NAVIGATION,15SP,*MAR,RH; AUDIO-DVD CHANGER,RDS,15SPEAKER,*MAR,RH
main86160-0WL40iAGL10,GGL15,GYL1#..EUR; AGL10,GGL15,GYL15..LHD..EUR; AGL10..RHD;GGL15,GYL15200812-201203
AUDIO-DVD CHANGER,15SPEAKER,*MAR,LH; AUDIO-DVD CHANGER,HDD NAVIGATION,15SP,*MAR,LH; AUDIO-DVD CHANGER,RDS,15SPEAKER,*MAR,LH
86160LSPEAKER ASSY, FRONT NO.4
main86160-0WL00iAGL10,GGL15,GYL1#..EUR; AGL10,GGL15,GYL15..LHD..EUR; AGL10..RHD;GGL15,GYL15200812-201203
AUDIO-DVD CHANGER,15SPEAKER,*MAR; AUDIO-DVD CHANGER,HDD NAVIGATION,15SP,*MAR; AUDIO-DVD CHANGER,RDS,15SPEAKER,*MAR
86160PSPEAKER ASSY, FRONT NO.2
RH
LH
RH
LH
main86160-0WL10iAGL10,GGL15,GYL1#..EUR; AGL10,GGL15,GYL15..LHD..EUR; AGL10..RHD;GGL15,GYL15200812-201203
AUDIO-DVD CHANGER,15SPEAKER,*MAR,RH; AUDIO-DVD CHANGER,HDD NAVIGATION,15SP,*MAR,RH; AUDIO-DVD CHANGER,RDS,15SPEAKER,*MAR,RH
main86160-0WL20iAGL10,GGL15,GYL1#..EUR; AGL10,GGL15,GYL15..LHD..EUR; AGL10..RHD;GGL15,GYL15200812-201203
AUDIO-DVD CHANGER,15SPEAKER,*MAR,LH; AUDIO-DVD CHANGER,HDD NAVIGATION,15SP,*MAR,LH; AUDIO-DVD CHANGER,RDS,15SPEAKER,*MAR,LH
86160USPEAKER ASSY, QUARTER SIDE
main86160-0WL90iAGL10,GGL15,GYL1#..EUR; AGL10,GGL15,GYL15..LHD..EUR; AGL10..RHD;GGL15,GYL15200812-201203
AUDIO-DVD CHANGER,15SPEAKER,*MAR,RH; AUDIO-DVD CHANGER,HDD NAVIGATION,15SP,*MAR,RH; AUDIO-DVD CHANGER,RDS,15SPEAKER,*MAR,RH
main86160-0WM00iAGL10,GGL15,GYL1#..EUR; AGL10,GGL15,GYL15..LHD..EUR; AGL10..RHD;GGL15,GYL15200812-201203
AUDIO-DVD CHANGER,15SPEAKER,*MAR,LH; AUDIO-DVD CHANGER,HDD NAVIGATION,15SP,*MAR,LH; AUDIO-DVD CHANGER,RDS,15SPEAKER,*MAR,LH
86160YSPEAKER ASSY, REAR NO.2
AUDIO-CD CHANGER,12SPEAKER; AUDIO-CD CHANGER,HDD NAVIGATION,12SPEAKER; AUDIO-CD CHANGER,RDS,12SPEAKER
main86160-0WL60×2iAGL10,GGL15,GYL1#..EUR; AGL10,GGL15,GYL15..LHD..EUR; AGL10..RHD;GGL15,GYL15200812-201203
AUDIO-DVD CHANGER,15SPEAKER,*MAR; AUDIO-DVD CHANGER,HDD NAVIGATION,15SP,*MAR; AUDIO-DVD CHANGER,RDS,15SPEAKER,*MAR
main86160-48300×2iAGL10,GGL15,GYL15..LHD..EUR; AGL10..LHD;GGL15,GYL1#..EUR; AGL10..RHD; GGL15,GYL15..GCC; GGL15;AGL10..LHD;GYL15..RHD;GYL15..GCC201203-201509
AUDIO-DISPLAY AUDIO,CD,12SPEAKER; AUDIO-DVD,12SPEAKER; AUDIO-DVD,DAB,12SPEAKER
86160ZSPEAKER ASSY, REAR NO.3
AUDIO-CD CHANGER,12SPEAKER; AUDIO-CD CHANGER,HDD NAVIGATION,12SPEAKER; AUDIO-CD CHANGER,RDS,12SPEAKER
main86160-0WM10iAGL10,GGL15,GYL1#..EUR; AGL10,GGL15,GYL15..LHD..EUR; AGL10..RHD;GGL15,GYL15200812-201203
AUDIO-DVD CHANGER,15SPEAKER,*MAR; AUDIO-DVD CHANGER,HDD NAVIGATION,15SP,*MAR; AUDIO-DVD CHANGER,RDS,15SPEAKER,*MAR
main86160-48310iAGL10,GGL15,GYL1#..EUR; AGL10,GGL15,GYL15..LHD..EUR; GGL15;AGL10,GYL15..RHD201009-201203
AUDIO-CD CHANGER,12SPEAKER; AUDIO-CD CHANGER,HDD NAVIGATION,12SPEAKER; AUDIO-CD CHANGER,RDS,12SPEAKER
main86160-48350iAGL10,GGL15,GYL15..LHD..EUR; AGL10..LHD;GGL15,GYL1#..EUR; AGL10..RHD; GGL15,GYL15..GCC; GGL15;AGL10..LHD;GYL15..RHD;GYL15..GCC201203
AUDIO-DISPLAY AUDIO,CD,12SPEAKER; AUDIO-DVD,12SPEAKER; AUDIO-DVD,DAB,12SPEAKER
86219DBRACKET, SPEAKER, REAR NO.1
main86219-48010iAGL10,GGL15,GYL15..LHD..EUR; AGL10..LHD;GGL15,GYL1#..EUR; AGL10..LHD;GGL15,GYL15; AGL10..RHD; GGL15,GYL15..GCC; GGL15;AGL10..LHD;GYL15..RHD;GYL15..GCC201203
AUDIO-DISPLAY AUDIO,CD,12SPEAKER; AUDIO-DVD,12SPEAKER; AUDIO-DVD,15SPEAKER,MARK LEVINSON; AUDIO-DVD,DAB,12SPEAKER; AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON
9015950311
main90159-50311
9015960303
main90159-60303
9017906308
main90179-06308
9018906227
main90189-06227
9155380614
main91553-80614
14 parts on this diagram · 2 diagrams in section
