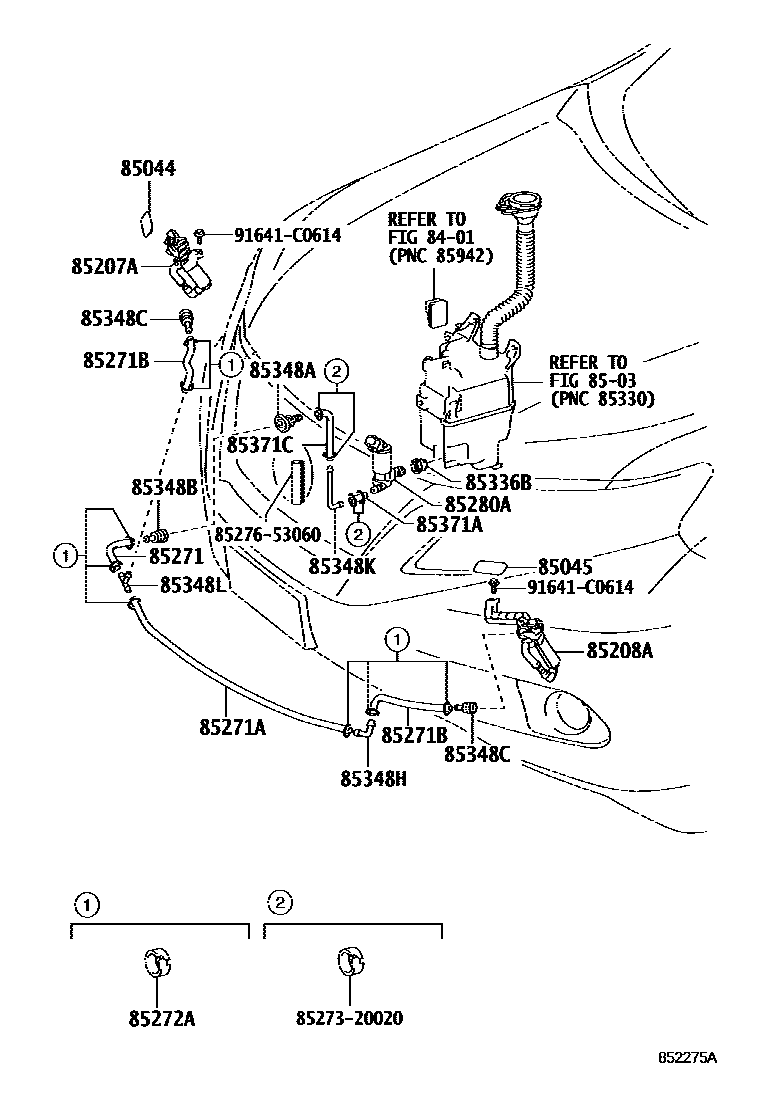

HEADLAMP CLEANER

0001 1 0002 1 0003 1

8401

8503

85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH

main85044-48010-A0iAGL10,GGL15,GYL1#200812-201203

WHITE PEARL CS.,077

main85044-48010-A1iGGL15,GYL1#200903-201203

QUARTZ WHITE C.S.,078

main85044-48010-B0iAGL10,GGL15,GYL1#200812-201108

DK.GRAY MC.,1G0

main85044-48010-B2iAGL10,GGL15,GYL1#200812-201203

SILVER M.M.,1G1

main85044-48010-B3iAGL10,GGL15,GYL1#201108-201203

MERCURY GRAY MC.,1H9

main85044-48010-C0iAGL10,GGL15,GYL1#200812-201203

BLACK,212

main85044-48010-C1iGYL1#200910-201203

BLACK OPAL MC.,214

main85044-48010-C2iAGL10,GGL15,GYL1#201008-201203

STARLIGHT BLACK GF.,217

main85044-48010-D0iAGL10,GGL15,GYL1#200812-201203

RED MC.CS.,3R1

main85044-48010-E0iGGL15,GYL1#200812-201008

BEIGE ME.,4T1

main85044-48010-E1iGGL15,GYL1#200812-201008

SABLE M.M.,4T5

main85044-48010-E2iAGL10,GGL15,GYL1#201008-201203

SLEEK ECRU ME.,4U7

main85044-48010-J0iGGL15,GYL1#200812-201008

DK.BLUE MC. CC.,8U0

main85044-48010-J1iAGL10,GGL15,GYL1#200812-201203

SILVERY BLUE ME.,8U9

main85044-48030-A0supersedes 85044-48020-A0iGGL15;GYL15..RHD;GYL15..GCC201203-201308

F SPORT,WHITE PEARL CS.,077

main85044-48030-A1supersedes 85044-48020-A1iGGL15;GYL15..RHD;GYL15..GCC201203-201308

F SPORT,QUARTZ WHITE CS.,078

main85044-48030-B1supersedes 85044-48020-B1iGGL15;GYL15..RHD;GYL15..GCC201203-201308

F SPORT&HEADLAMP-DISCHARGE & AFS,MERCURY GRAY MC.,1H9

main85044-48030-B2supersedes 85044-48020-B2iGGL15;GYL15..RHD;GYL15..GCC201203-201308

F SPORT&HEADLAMP-LED & AFS,PLATINUM SILVER ME.,1J4

main85044-48030-C0supersedes 85044-48020-C0iGGL15;GYL15..RHD;GYL15..GCC201203-201308

AERO BUMPER(FRONT)&HEADLAMP-LED & AFS,BLACK,212

main85044-48030-C1supersedes 85044-48020-C1iGGL15;GYL15..RHD;GYL15..GCC201203-201308

F SPORT&HEADLAMP-DISCHARGE & AFS,STARLIGHT BLACK GF.,217

main85044-48030-D0supersedes 85044-48020-D0iGGL15;GYL15..RHD;GYL15..GCC201203-201308

F SPORT&HEADLAMP-DISCHARGE & AFS,GARNET RED MC.,3S0

main85044-48030-E0supersedes 85044-48020-E0iGGL15;GYL15..RHD;GYL15..GCC201203-201308

F SPORT&HEADLAMP-DISCHARGE & AFS,SLEEK ECRU ME.,4U7

main85044-48030-E1supersedes 85044-48020-E1iGGL15;GYL15..RHD;GYL15..GCC201203-201308

AERO BUMPER(FRONT),FIRE AGATE M.M.,4V3

main85044-48030-J0supersedes 85044-48020-J0iGGL15;GYL15..RHD;GYL15..GCC201203-201308

AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE & AFS,LAPIS LAZULI MC.,8V3

main85353-48020-A0supersedes 85353-48010-A0iGGL15;GYL15..RHD;GYL15..GCC201308-201509

F SPORT,WHITE PEARL CS.,077

main85353-48020-A1iGYL15..LHD..EUR201308-201509

F SPORT&HEADLAMP-DISCHARGE & AFS,WHITE NOVA GF.,083

main85353-48020-B0supersedes 85353-48010-B0iGGL15;GYL15..RHD;GYL15..GCC201308-201509

F SPORT&HEADLAMP-DISCHARGE & AFS,MERCURY GRAY MC.,1H9

main85353-48020-B1supersedes 85353-48010-B1iGGL15;GYL15..RHD;GYL15..GCC201308-201509

F SPORT&HEADLAMP-LED & AFS,PLATINUM SILVER ME.,1J4

main85353-48020-C0supersedes 85353-48010-C0iGGL15;GYL15..RHD;GYL15..GCC201308-201509

AERO BUMPER(FRONT)&HEADLAMP-LED & AFS,BLACK,212

main85353-48020-C1supersedes 85353-48010-C1iGGL15;GYL15..RHD;GYL15..GCC201308-201509

F SPORT&HEADLAMP-DISCHARGE & AFS,STARLIGHT BLACK GF.,217

main85353-48020-D0supersedes 85353-48010-D0iGGL15;GYL15..RHD;GYL15..GCC201308-201509

F SPORT&HEADLAMP-DISCHARGE & AFS,GARNET RED MC.,3S0

main85353-48020-E0supersedes 85353-48010-E0iGGL15;GYL15..RHD;GYL15..GCC201308-201509

F SPORT&HEADLAMP-DISCHARGE & AFS,SLEEK ECRU ME.,4U7

main85353-48020-E1supersedes 85353-48010-E1iGGL15;GYL15..RHD;GYL15..GCC201308-201509

AERO BUMPER(FRONT),FIRE AGATE M.M.,4V3

main85353-48020-J0supersedes 85353-48010-J0iGGL15;GYL15..RHD;GYL15..GCC201308-201509

AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE & AFS,LAPIS LAZULI MC.,8V3

85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH

main85045-48010-A0iAGL10,GGL15,GYL1#200812-201203

WHITE PEARL CS.,077

main85045-48010-A1iGGL15,GYL1#200903-201203

QUARTZ WHITE C.S.,078

main85045-48010-B0iAGL10,GGL15,GYL1#200812-201108

DK.GRAY MC.,1G0

main85045-48010-B2iAGL10,GGL15,GYL1#200812-201203

SILVER M.M.,1G1

main85045-48010-B3iAGL10,GGL15,GYL1#201108-201203

MERCURY GRAY MC.,1H9

main85045-48010-C0iAGL10,GGL15,GYL1#200812-201203

BLACK,212

main85045-48010-C1iGYL1#200910-201203

BLACK OPAL MC.,214

main85045-48010-C2iAGL10,GGL15,GYL1#201008-201203

STARLIGHT BLACK GF.,217

main85045-48010-D0iAGL10,GGL15,GYL1#200812-201203

RED MC.CS.,3R1

main85045-48010-E0iGGL15,GYL1#200812-201008

BEIGE ME.,4T1

main85045-48010-E1iGGL15,GYL1#200812-201008

SABLE M.M.,4T5

main85045-48010-E2iAGL10,GGL15,GYL1#201008-201203

SLEEK ECRU ME.,4U7

main85045-48010-J0iGGL15,GYL1#200812-201008

DK.BLUE MC. CC.,8U0

main85045-48010-J1iAGL10,GGL15,GYL1#200812-201203

SILVERY BLUE ME.,8U9

main85045-48030-A0supersedes 85045-48020-A0iGGL15;GYL15..RHD;GYL15..GCC201203-201308

F SPORT,WHITE PEARL CS.,077

main85045-48030-A1supersedes 85045-48020-A1iGGL15;GYL15..RHD;GYL15..GCC201203-201308

F SPORT,QUARTZ WHITE CS.,078

main85045-48030-B1supersedes 85045-48020-B1iGGL15;GYL15..RHD;GYL15..GCC201203-201308

F SPORT&HEADLAMP-DISCHARGE & AFS,MERCURY GRAY MC.,1H9

main85045-48030-B2supersedes 85045-48020-B2iGGL15;GYL15..RHD;GYL15..GCC201203-201308

F SPORT&HEADLAMP-LED & AFS,PLATINUM SILVER ME.,1J4

main85045-48030-C0supersedes 85045-48020-C0iGGL15;GYL15..RHD;GYL15..GCC201203-201308

AERO BUMPER(FRONT)&HEADLAMP-LED & AFS,BLACK,212

main85045-48030-C1supersedes 85045-48020-C1iGGL15;GYL15..RHD;GYL15..GCC201203-201308

F SPORT&HEADLAMP-DISCHARGE & AFS,STARLIGHT BLACK GF.,217

main85045-48030-D0supersedes 85045-48020-D0iGGL15;GYL15..RHD;GYL15..GCC201203-201308

F SPORT&HEADLAMP-DISCHARGE & AFS,GARNET RED MC.,3S0

main85045-48030-E0supersedes 85045-48020-E0iGGL15;GYL15..RHD;GYL15..GCC201203-201308

F SPORT&HEADLAMP-DISCHARGE & AFS,SLEEK ECRU ME.,4U7

main85045-48030-E1supersedes 85045-48020-E1iGGL15;GYL15..RHD;GYL15..GCC201203-201308

AERO BUMPER(FRONT),FIRE AGATE M.M.,4V3

main85045-48030-J0supersedes 85045-48020-J0iGGL15;GYL15..RHD;GYL15..GCC201203-201308

AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE & AFS,LAPIS LAZULI MC.,8V3

main85354-48020-A0supersedes 85354-48010-A0iGGL15;GYL15..RHD;GYL15..GCC201308-201509

F SPORT,WHITE PEARL CS.,077

main85354-48020-A1iGYL15..LHD..EUR201308-201509

F SPORT&HEADLAMP-DISCHARGE & AFS,WHITE NOVA GF.,083

main85354-48020-B0supersedes 85354-48010-B0iGGL15;GYL15..RHD;GYL15..GCC201308-201509

F SPORT&HEADLAMP-DISCHARGE & AFS,MERCURY GRAY MC.,1H9

main85354-48020-B1supersedes 85354-48010-B1iGGL15;GYL15..RHD;GYL15..GCC201308-201509

F SPORT&HEADLAMP-LED & AFS,PLATINUM SILVER ME.,1J4

main85354-48020-C0supersedes 85354-48010-C0iGGL15;GYL15..RHD;GYL15..GCC201308-201509

AERO BUMPER(FRONT)&HEADLAMP-LED & AFS,BLACK,212

main85354-48020-C1supersedes 85354-48010-C1iGGL15;GYL15..RHD;GYL15..GCC201308-201509

F SPORT&HEADLAMP-DISCHARGE & AFS,STARLIGHT BLACK GF.,217

main85354-48020-D0supersedes 85354-48010-D0iGGL15;GYL15..RHD;GYL15..GCC201308-201509

F SPORT&HEADLAMP-DISCHARGE & AFS,GARNET RED MC.,3S0

main85354-48020-E0supersedes 85354-48010-E0iGGL15;GYL15..RHD;GYL15..GCC201308-201509

F SPORT&HEADLAMP-DISCHARGE & AFS,SLEEK ECRU ME.,4U7

main85354-48020-E1supersedes 85354-48010-E1iGGL15;GYL15..RHD;GYL15..GCC201308-201509

AERO BUMPER(FRONT),FIRE AGATE M.M.,4V3

main85354-48020-J0supersedes 85354-48010-J0iGGL15;GYL15..RHD;GYL15..GCC201308-201509

AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE & AFS,LAPIS LAZULI MC.,8V3

85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH

main85207-48040iAGL10,GGL15,GYL1#200812-201203

main85207-48050iGYL1#200903-201203

HEADLAMP-LED & AFS

main85207-48070supersedes 85207-48060iGGL15;GYL15..RHD;GYL15..GCC201203-201308

F SPORT&HEADLAMP-LED & AFS

main85207-48090supersedes 85207-48080iGGL15;GYL15..RHD;GYL15..GCC201308-201509

F SPORT&HEADLAMP-LED & AFS

85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH

main85208-48040iAGL10,GGL15,GYL1#200812-201203

main85208-48050iGYL1#200903-201203

HEADLAMP-LED & AFS

main85208-48070supersedes 85208-48060iGGL15;GYL15..RHD;GYL15..GCC201203-201308

F SPORT&HEADLAMP-LED & AFS

main85208-48090supersedes 85208-48080iGGL15;GYL15..RHD;GYL15..GCC201308-201509

F SPORT&HEADLAMP-LED & AFS

85271HOSE, HEADLAMP CLEANER, NO.1

main90075-15051iAGL10,GGL15,GYL1#200812-201203

L=140

85271AHOSE, HEADLAMP CLEANER, NO.2

main90075-15050iAGL10,GGL15,GYL1#200812-201203

L=960

85271BHOSE, HEADLAMP CLEANER, NO.3

main85375-12510×2iAGL10,GGL15,GYL1#200812-201203

sub85275-44050

85272ACLAMP, HEADLAMP CLEANER, NO.1

main85272-28030×2iGYL15..LHD..EUR201203-201308

HEADLAMP-DISCHARGE

main85272-75050×2iGYL15..LHD..EUR201308

HEADLAMP-DISCHARGE

main85273-20020×8iAGL10,GGL15,GYL1#200812-201203

85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER

main85280-30040iAGL10,GGL15,GYL1#200812-201203

85336BPACKING, HEADLAMP CLEANER WASHER

main90099-32089iAGL10,GGL15,GYL1#200812-201203

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main85279-33050iAGL10,GGL15,GYL1#200812-201203

main85357-42070iGYL1#..LHD..EUR201203

HEADLAMP-DISCHARGE & AFS

85348BJOINT, HEADLAMP CLEANER HOSE, NO.2

main85279-33040iAGL10,GGL15,GYL1#200812-201203

main90075-17001iGYL15..LHD..EUR201203-201308

HEADLAMP-DISCHARGE

main90075-17005iGYL15..LHD..EUR201308

HEADLAMP-DISCHARGE

85348CJOINT, HEADLAMP CLEANER HOSE, NO.3

main85279-33040×2iAGL10,GGL15,GYL1#200812-201203

main90075-17005×2iGYL15..LHD..EUR201203-201308

HEADLAMP-DISCHARGE

main90075-17009×2iGYL15..LHD..EUR201308

HEADLAMP-DISCHARGE

85348HJOINT, HEADLAMP CLEANER HOSE, NO.4

main85379-22080iAGL10,GGL15,GYL1#200812-201203

85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1

main85278-20590iAGL10,GGL15,GYL1#200812-201203

main85279-42010iGYL1#..LHD..EUR201203

HEADLAMP-DISCHARGE & AFS

85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2

main85287-53060iAGL10,GGL15,GYL1#200812-201203

main90075-17003iGYL15..LHD..EUR201203-201308

HEADLAMP-DISCHARGE

main90075-17010iGYL15..LHD..EUR201308

HEADLAMP-DISCHARGE

85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)

main85375-16020iAGL10,GGL15,GYL1#200812-201203

L=40

main90075-15040iGYL1#..LHD..EUR201203

HEADLAMP-DISCHARGE & AFS

85371CHOSE, HEADLAMP CLEANER, NO.1

main85375-89133iAGL10,GGL15,GYL1#200812-201203

sub85275-44050

main85376-14301iGYL1#..LHD..EUR201203

L=75,HEADLAMP-LED & AFS

8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH

main85273-20020

8527653060RELAY, CLEANER CONTROL

main85276-53060

91641C0614

main91641-C0614

23 parts on this diagram · 3 diagrams in section
