HEV INVERTER

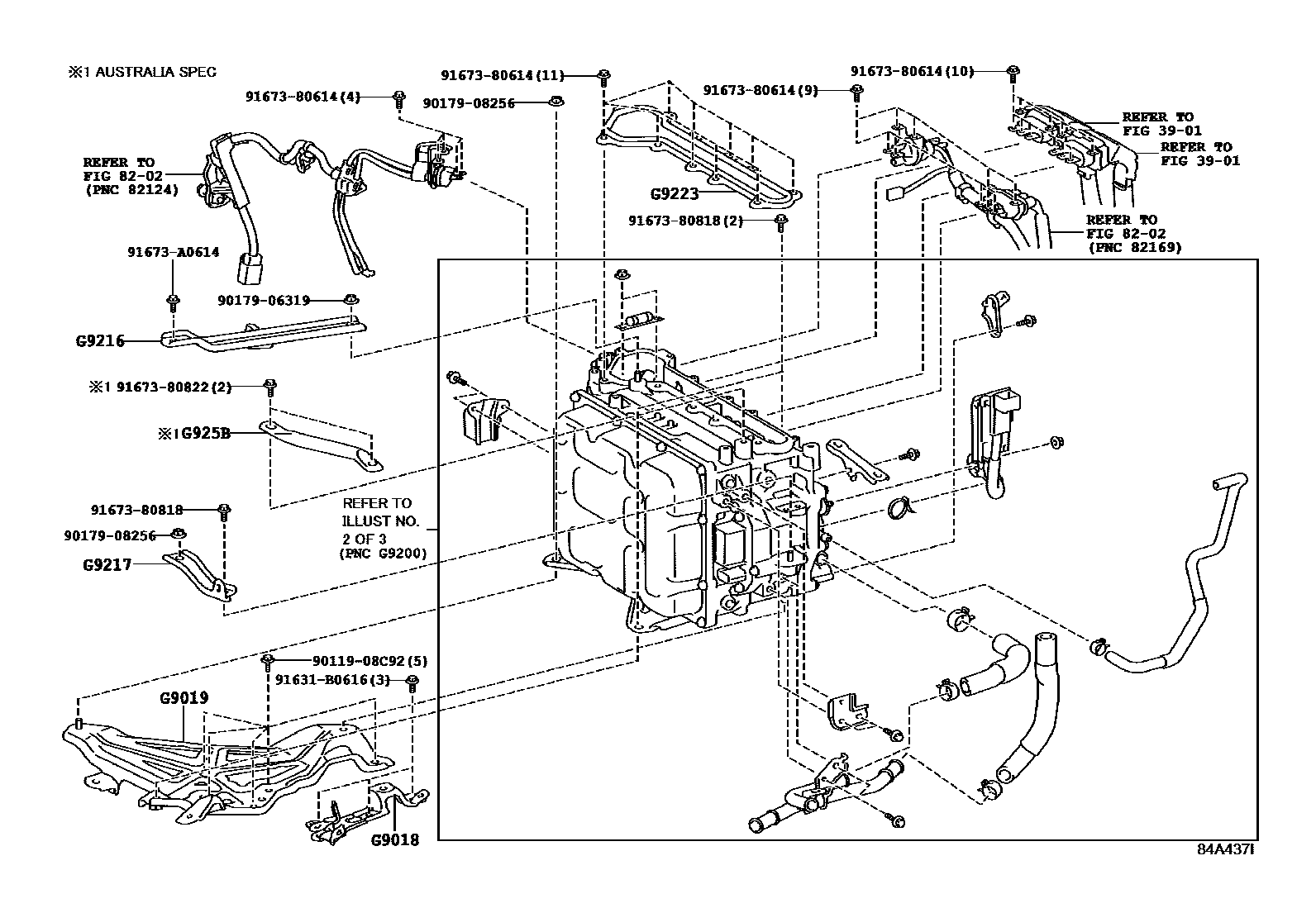

Parts diagram

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8202WIRING & CLAMP

→ Go to FIG 82-02

G9018BRACKET SUB-ASSY, INVERTER, NO.5

mainG901848010i200903-201203

G9019BRACKET SUB-ASSY, INVERTER TRAY

mainG901948010i200903-201203

G9216BRACKET, INVERTER, NO.3

mainG921648040i200903-201203

G9217BRACKET, INVERTER, NO.4

mainG901748010i201007-201203

mainG921748040i200903-201007

G9223COVER, INVERTER TERMINAL

mainG922348040i200903-201109

mainG922348041i201110-201203

G925BBRACKET, INVERTER, NO.6

mainG925B48010i201203

CHINA(EXCEPT BEIJING) SPEC

mainG925B48010i201203

BEIJING SPEC

mainG925B48010i201203

AUSTRALIA SPEC

mainG925B48010i201203

NEW ZEALAND SPEC

mainG925B48010i201203

SOUTH AFRICA SPEC

mainG925B48010i201203

RUSSIA SPEC

mainG925B48010i201203

ADORIA SPEC

mainG925B48010i201203

CHILE SPEC

mainG925B48010i201203

ISRAEL SPEC

9011908C92

main90119-08C92

9017906319

main90179-06319

9017908256

main90179-08256

91631B0616

main91631-B0616

9167380614

main91673-80614

9167380818

main91673-80818

9167380822

main91673-80822

91673A0614

main91673-A0614

16 parts on this diagram · 3 diagrams in section
