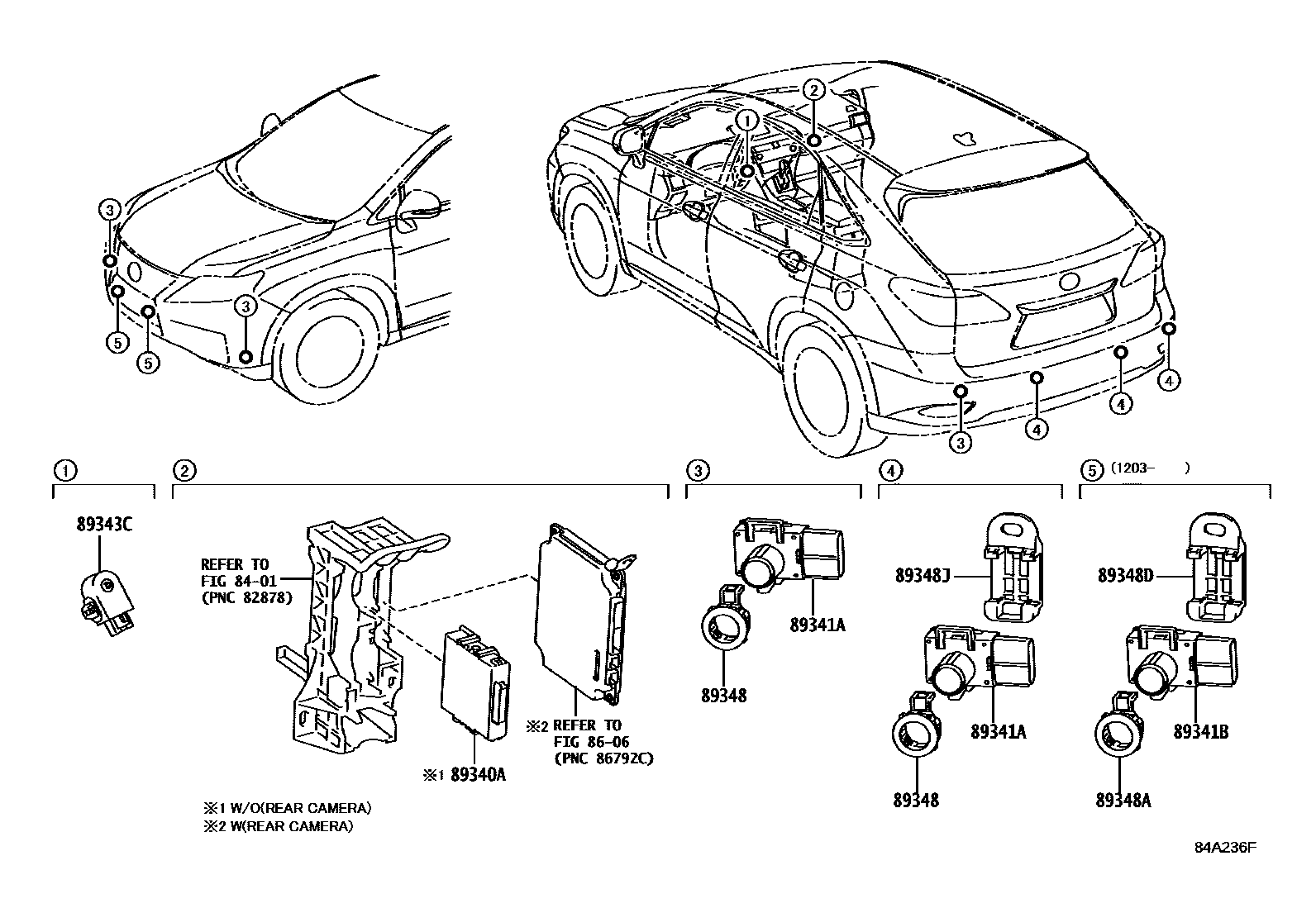

CLEARANCE & BACK SONAR

0001 1 0002 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-48020200812-201203

89341ASENSOR, ULTRASONIC, NO.1

89341BSENSOR, ULTRASONIC, NO.2

89343CBUZZER, CLEARANCE WARNING, NO.1

89348RETAINER, ULTRASONIC SENSOR, NO.1

main89348-33060

main89348-33090

main89348-33100

89348ARETAINER, ULTRASONIC SENSOR, NO.2

89348DCLIP, ULTRASONIC SENSOR

main89348-33090200812-201203

89348JCLIP, ULTRASONIC SENSOR

10 parts on this diagram · 2 diagrams in section
