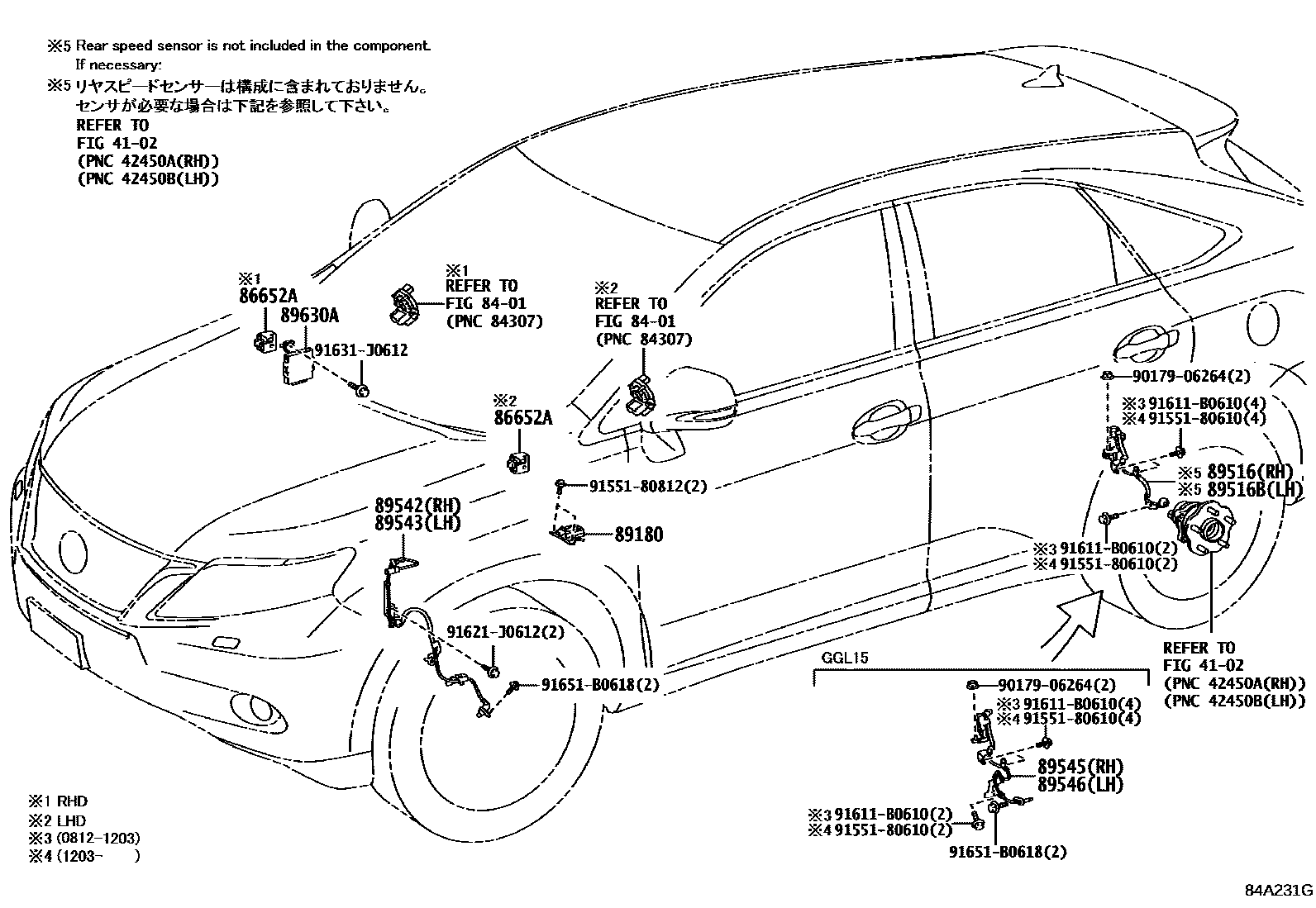

ABS & VSC
4102REAR AXLE SHAFT & HUB
8401SWITCH & RELAY & COMPUTER
86652ABUZZER ASSY, SKID CONTROL
PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)
PRE-COLLISION SYSTEM-WITH(*PSB & *PBA)
89180SENSOR ASSY, YAWRATE
ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR)
HONG KONG SPEC
INDONESIA SPEC
CHILE SPEC
ANTI-THEFT SYSTEM-WITH
ANTI-THEFT SYSTEM-WITH(TRACKING & BLOCKING)
VEHICLE DYNAMIC MANAGEMENT-WITH/VDIM ALPHA(V2-H)
ANTI-THEFT SYSTEM-WITH(WITHOUT ALARM)
ISRAEL SPEC
PHILIPPINE SPEC
CHINA(EXCEPT BEIJING) SPEC
BEIJING SPEC
HONG KONG SPEC&VEHICLE DYNAMIC MANAGEMENT-WITHOUT
BEIJING SPEC&VEHICLE DYNAMIC MANAGEMENT-WITHOUT
CHILE SPEC&VEHICLE DYNAMIC MANAGEMENT-WITHOUT
TAIWAN SPEC&VEHICLE DYNAMIC MANAGEMENT-WITHOUT
PHILIPPINE SPEC&VEHICLE DYNAMIC MANAGEMENT-WITHOUT
CHINA(EXCEPT BEIJING) SPEC&VEHICLE DYNAMIC MANAGEMENT-WITHOUT
INDONESIA SPEC&VEHICLE DYNAMIC MANAGEMENT-WITHOUT
ANTI-THEFT SYSTEM-WITH&VEHICLE DYNAMIC MANAGEMENT-WITHOUT
ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR)&VEHICLE DYNAMIC MANAGEMENT-WITHOUT
ANTI-THEFT SYSTEM-WITH(TRACKING & BLOCKING)&VEHICLE DYNAMIC MANAGEMENT-WITHOUT
89516WIRE, SKID CONTROL SENSOR
89516BWIRE, SKID CONTROL SENSOR
89542SENSOR, SPEED, FRONT RH
89543SENSOR, SPEED, FRONT LH
89545SENSOR, SPEED, REAR RH
89546SENSOR, SPEED, REAR LH
89630ACOMPUTER ASSY, 4WD
9017906264
main90179-06264
9155180610
main91551-80610
9155180812
main91551-80812
91611B0610
main91611-B0610
91621J0612
main91621-J0612
91631J0612
main91631-J0612
91651B0618
main91651-B0618
18 parts on this diagram · 2 diagrams in section
